Can LED Engineering Light Strips Be Cut? How to Cut Them?

December 16, 2022 266

LED engineering light strips are versatile and widely used in various applications, from decorative lighting to functional illumination. One common question is whether these LED strips can be cut to fit specific spaces and how to do it correctly. The answer is yes, most LED light strips can be cut, but it requires careful attention to ensure proper functionality and safety. Here’s a detailed guide on how to cut LED engineering light strips.

3_02

Understanding LED Strip Cutting

Why Cutting LED Strips is Important

  • Customization: Cutting allows you to fit the LED strip precisely into the desired space, whether for under-cabinet lighting, accent lighting, or other applications.
  • Flexibility: It provides flexibility in design, enabling creative installations in various shapes and sizes.

Where to Cut LED Strips

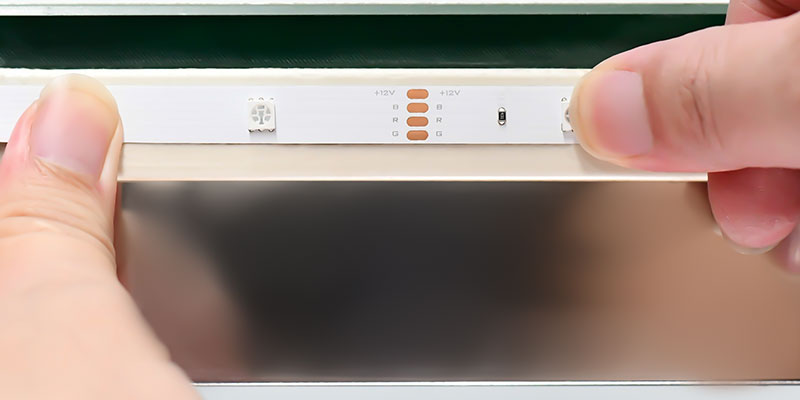

  • Designated Cutting Points: LED strips have designated cutting points marked along the strip, usually indicated by a line or a small scissor icon. These points are typically spaced between 1 to 2 inches apart, depending on the strip's design.
  • Safe Cutting: Cutting outside these points can damage the circuit and render the strip or certain sections non-functional.



Steps to Cut LED Engineering Light Strips

Tools Needed

  • Sharp Scissors or Utility Knife: For a clean cut.
  • Soldering Iron and Solder (optional): For reattaching cut sections.
  • Connector Clips: To reconnect cut pieces without soldering.
  • Ruler or Measuring Tape: For precise measurement.

Cutting the LED Strip

  1. Power Off: Ensure the LED strip is powered off and unplugged to avoid electrical shock or damage.

  2. Measure and Mark: Measure the length you need and locate the nearest designated cutting point. Mark the cutting line with a pencil or marker.

  3. Cut Carefully: Using sharp scissors or a utility knife, cut along the marked line at the designated cutting point. Ensure the cut is clean and straight to avoid damaging the circuit.



Reconnecting Cut LED Strips

Using Connector Clips

  1. Open the Clip: Open the connector clip to expose the metal contacts inside.

  2. Insert the Strip: Insert the cut ends of the LED strip into the connector clip, ensuring the contacts align correctly with the strip's copper pads.

  3. Close the Clip: Snap the clip shut to secure the connection. The LED strip should now be reconnected and ready for use.

Using Soldering

  1. Prepare the Wires: Strip a small section of insulation from the connecting wires.

  2. Apply Solder: Heat the soldering iron and apply a small amount of solder to the exposed copper pads on the LED strip.

  3. Attach Wires: Position the stripped wire ends onto the soldered pads and apply the soldering iron to secure them in place.

  4. Insulate: Use heat shrink tubing or electrical tape to insulate the connections and prevent short circuits.



Tips for Cutting LED Strips

  • Check Voltage: Ensure the cut sections are connected to the same power supply type and voltage to avoid damage.
  • Test Before Final Installation: Test the cut and reconnected strips to ensure they work correctly before securing them in place.
  • Handle with Care: LED strips are delicate; handle them gently to avoid damaging the circuit or LEDs.



Conclusion

Cutting LED engineering light strips allows for customized installations that fit your specific needs. By following the designated cutting points and using proper tools and techniques, you can safely and effectively modify your LED strips. Whether using connector clips or soldering, ensure the connections are secure and insulated to maintain the functionality and safety of the LED lighting.
