Choosing the Right LED Strip: SMD vs. COB, 5050 vs. 3528 Explained

LED strips use SMD (Surface-Mounted Diode) LEDs and COB (Chip-On-Board) LEDs, each with distinct advantages depending on the application. SMD LEDs are the most common type, found in nearly all general-purpose LED strips, and come in standard sizes such as 3528, 5050, and 2835. COB LEDs are newer and offer continuous, uniform light without the individual "dots" seen on traditional SMD LED strips. The choice between SMD and COB depends on factors like the brightness, color accuracy, and lighting effect desired.

What is the Most Common LED Type?

The SMD LED is the most commonly used type in LED strips, especially for residential, commercial, and decorative lighting. SMD LEDs are versatile, efficient, and available in a range of sizes and brightness levels. The most popular SMD LED models include 3528, 5050, and 2835, each known for its unique features and applications.

Which is Better, 5050 or 3528?

The choice between 5050 and 3528 SMD LEDs depends on the lighting requirements:

• 5050 SMD LEDs: These are larger and brighter, measuring 5mm by 5mm. With three LED diodes within each chip, 5050 LEDs provide high brightness and are often used for areas needing more illumination, such as task lighting, outdoor lighting, and large spaces.

• 3528 SMD LEDs: These smaller LEDs, measuring 3.5mm by 2.8mm, are less bright but more energy-efficient. They’re suitable for accent lighting, backlighting, or situations where subtle illumination is preferred.

In general, 5050 LEDs are ideal for applications requiring higher brightness, while 3528 LEDs are suitable for ambient or accent lighting where a softer glow is desired.

What is the Most Common SMD LED?

The 2835 SMD LED is currently one of the most common types in LED strips. This popularity comes from its efficiency, compact size, and brightness level. The 2835 LED is often used in modern LED strips because it balances power consumption and brightness. In addition to being highly efficient, 2835 LEDs run cooler than older models, making them an excellent choice for long-lasting lighting applications like under-cabinet lighting, retail displays, and signage.

Which is Better, SMD or COB LED?

The better choice between SMD and COB LEDs depends on the lighting effect and application:

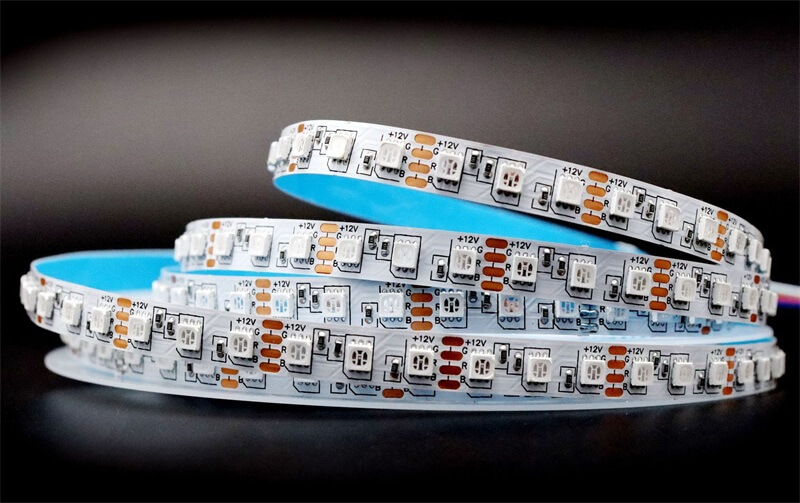

• SMD LEDs: Known for flexibility and customization, SMD LEDs are widely available in RGB, RGBW (with white), and single-color options. They allow for a wide range of brightness levels, colors, and effects, making them popular for accent lighting, decorative lighting, and situations where varied lighting is needed.

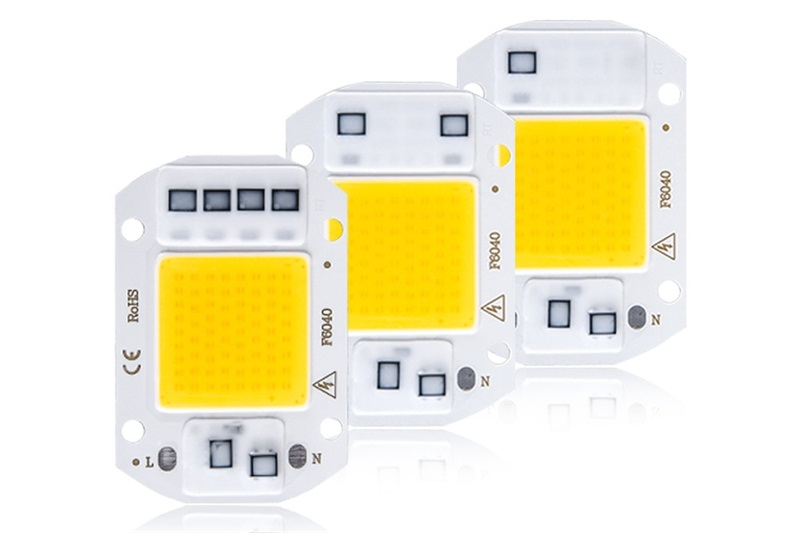

• COB LEDs: COB LEDs feature a continuous, uniform light output with no visible hotspots, creating a smooth "neon-like" effect. They’re better suited for applications where even, linear lighting is desired, such as under-cabinet lights, task lighting, and professional-grade lighting designs.

  In summary: If you need customizable, multi-color lighting, SMD LEDs are usually the better option. However, if you prefer a smooth, consistent light with no visible individual diodes, COB LEDs are likely a better choice.

What Does SMD Mean on LED Strip?

SMD stands for Surface-Mounted Diode, referring to the LED type mounted on the strip. Unlike traditional bulbs, SMD LEDs are small chips attached directly to the strip’s surface, allowing them to be compact and efficient. SMD LEDs are typically labeled with a four-digit number, such as 3528, 5050, or 2835, indicating the chip’s dimensions in millimeters.

SMD LEDs are popular because they are versatile and can be arranged in high densities on LED strips, creating bright, flexible lighting that can be cut to fit different spaces. SMD technology has driven the evolution of LED strips, making them adaptable for both functional and decorative uses across various settings.

Conclusion

Choosing the right LED type for your lighting project involves understanding the differences between SMD and COB LEDs as well as the specific LED sizes like 5050, 3528, and 2835. For most general purposes, SMD LEDs are a reliable choice due to their versatility, efficiency, and variety of color options. However, COB LEDs are ideal when you need a smooth, uniform light without visible "dots."

Whether you’re looking to add accent lighting, task lighting, or ambient lighting to a room, selecting the correct LED type is essential for achieving the best results. As LED technology advances, both SMD and COB LED strips continue to evolve, offering new ways to illuminate spaces in efficient and visually pleasing ways.
