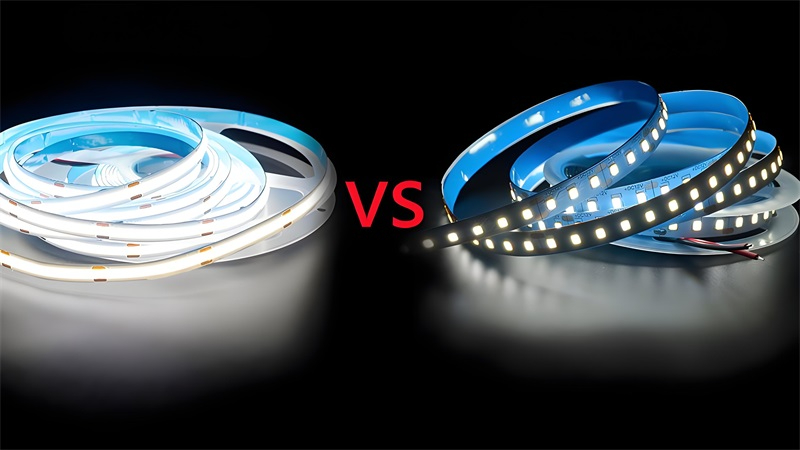

COB vs SMD LED Strips: Which Offers Better Light Uniformity?

When choosing LED strips for residential or commercial lighting, uniformity of light output is a critical factor. Two popular technologies—COB (Chip-on-Board) and SMD (Surface-Mounted Device)—dominate the market, but their light distribution characteristics differ significantly. This article explores their structural differences, performance in light uniformity, and ideal applications to help you make an informed decision.

1. Structural Differences: Why Design Affects Light Quality

COB LED Strips

COB technology embeds multiple LED chips directly onto a circuit board, coated with a single phosphor layer. This creates a seamless, continuous light-emitting surface. The tightly packed chips (often hundreds per meter) eliminate gaps between individual diodes, resembling a "light panel" effect.

SMD LED Strips

SMD strips use discrete LEDs mounted individually on a flexible PCB. Common variants like SMD 2835 or 5050 have visible spacing between diodes, resulting in distinct bright spots unless diffusers are added.

2. Light Uniformity: COB vs SMD

COB’s Strengths

• No Hotspots: The dense arrangement of COB chips ensures light blends seamlessly, making it ideal for applications requiring smooth gradients (e.g., architectural lighting).
• Wider Beam Angles: COB strips often achieve 160–180° beam angles, distributing light evenly across surfaces.
• Minimal Shadowing: Perfect for reflective environments (e.g., under-cabinet lighting), where SMDs might cast shadows due to spaced diodes.

SMD’s Limitations

• Visible Dots: Without diffusion lenses, SMD strips exhibit "dotting" effects, especially in low-density configurations.
• Dependence on Diffusers: To improve uniformity, SMD strips often require frosted covers or aluminum channels, adding cost and complexity.

3. Beyond Uniformity: Other Factors to Consider

Energy Efficiency

• SMD strips generally consume less power per lumen, making them cost-effective for large installations.
• COB’s high-density design may increase heat output, requiring better thermal management.

Color Rendering & Brightness

• COB excels in CRI (Color Rendering Index), often exceeding 90, which enhances color accuracy in retail or art displays.
• High-density SMD strips (e.g., 60 LEDs/m) can rival COB’s brightness but struggle to match its uniformity.

Flexibility & Cost

• SMD strips are more flexible and easier to cut/modify, suited for curved surfaces.
• COB strips are typically 20–30% pricier but justify the cost in premium applications.

4. Ideal Applications

5. The Verdict: Which Is Better for Uniform Light?

COB LED strips outperform SMD in uniformity due to their seamless design, making them the top choice for high-end residential or commercial projects where light quality is non-negotiable. However, SMD strips remain a versatile, budget-friendly option for applications where minor hotspots are acceptable or diffusers can be added.

Pro Tip: Always pair COB strips with dimmable drivers to leverage their smooth dimming capabilities, enhancing ambiance control.

Final Thoughts
Your choice between COB and SMD hinges on balancing uniformity, budget, and application needs. As LED technology evolves, hybrid solutions (e.g., COB with improved thermal pads) are emerging, offering even brighter and more uniform lighting. Stay updated with the latest innovations to maximize your lighting project’s success!
