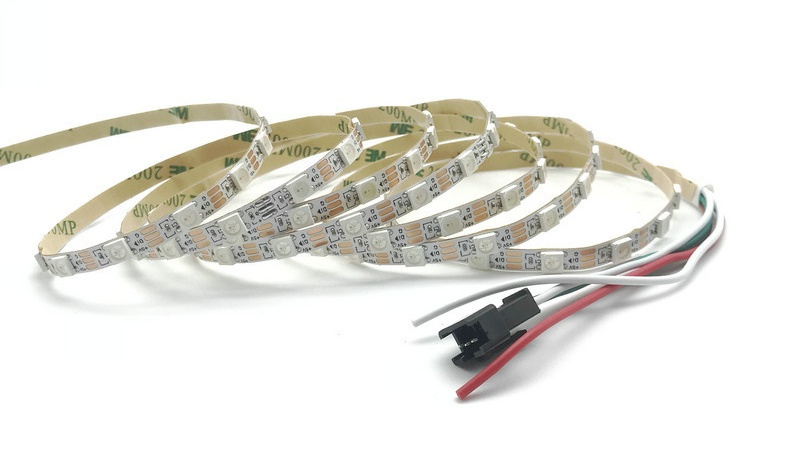

Common IC Models for RGB LED Strips: Features and Comparisons

In the world of RGB LED strips, the control IC (Integrated Circuit) plays a crucial role in determining the functionality, color control, and performance of the lights. Different IC models offer varying capabilities, making it essential to choose the right one for your specific needs. In this article, we will explore some of the most common IC models for RGB LED strips and compare their differences in a detailed table.

Common IC Models for RGB LED Strips

1. WS2812 / WS2812B

The WS2812 and WS2812B are among the most widely used ICs for RGB LED strips. They feature an integrated controller that allows for individual control of each LED. The WS2812B is an improved version with better power efficiency and a lower voltage drop.

2. WS2813

The WS2813 is an advanced version of the WS2812B, offering additional features such as redundant data transmission. This ensures that if one LED fails, the rest of the strip will continue to operate normally.

3. APA102 / APA102C

The APA102, also known as DotStar, is known for its high refresh rate and low latency. It uses a separate clock line, which allows for more precise control and smoother animations, making it ideal for high-performance applications.

4. SK6812 / SK6812RGBW

The SK6812 is similar to the WS2812 but includes additional features such as a white LED (RGBW) for more nuanced color mixing and higher brightness. This makes it suitable for applications requiring a broader range of colors and more intense lighting.

5. UCS1903 / UCS1903B

The UCS1903 IC is known for its stability and reliability. It offers good color consistency and is commonly used in various decorative lighting applications.

6. TM1814

The TM1814 IC provides high brightness and low power consumption. It is designed for applications where long-term stability and consistent brightness are critical.

Comparison Table of Common RGB LED Strip ICs

Key Differences and Applications

Voltage and Power

• WS2812/WS2812B, WS2813, APA102, SK6812: Operate at 5V, making them suitable for low-voltage applications.
• UCS1903, TM1814: Available in both 5V and 12V variants, offering flexibility for different power requirements.

Data Transmission

• Single-line data transmission (WS2812, WS2812B, WS2813, SK6812, UCS1903, TM1814): Simple setup but might have latency issues with long strips.
• Dual-line data transmission (APA102): Separate clock line ensures precise control and smoother animations, ideal for high-performance displays.

Color Channels

• RGB (WS2812, WS2812B, WS2813, APA102, UCS1903, TM1814): Standard color mixing.
• RGBW (SK6812): Adds a white LED for more accurate color representation and higher brightness.

Redundancy

• WS2813: Features redundant data transmission, ensuring the rest of the strip remains functional if one LED fails, making it more reliable for critical applications.

Conclusion

Choosing the right IC for your RGB LED strip depends on your specific requirements, such as the desired voltage, data transmission method, color channels, and the need for redundancy. By understanding the differences between these common IC models, you can select the best option to achieve stunning and reliable lighting effects for your projects.
