Addressable Digital Pixel COB LED Strip: SPI vs. PWM Control Methods

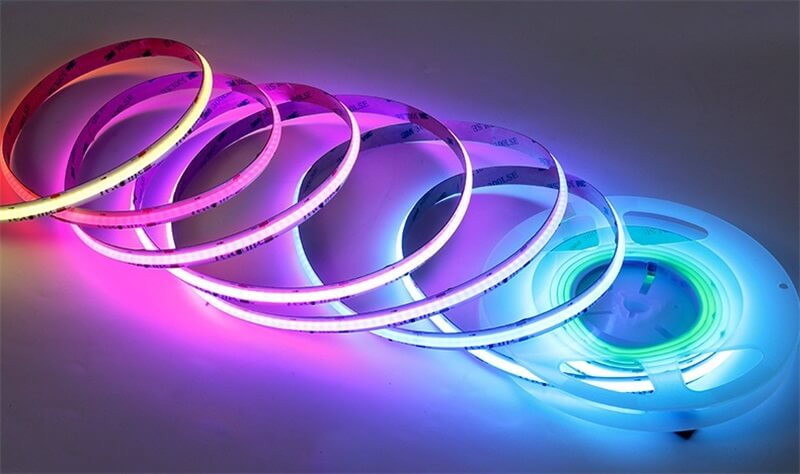

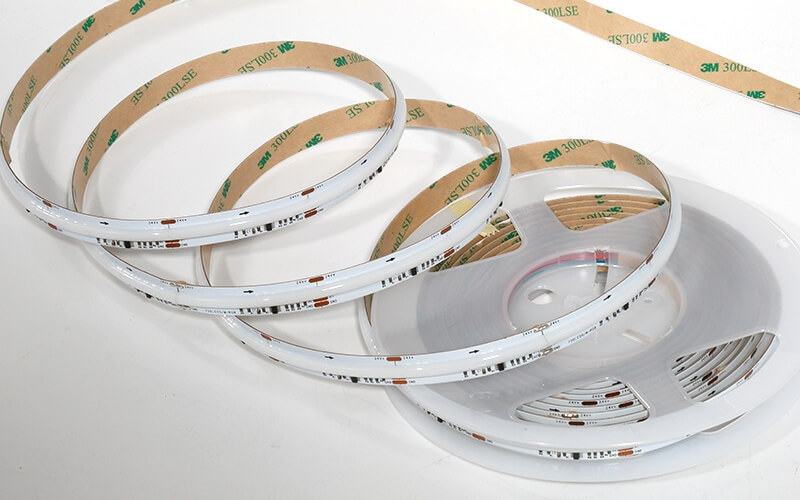

In modern lighting and decoration, Addressable Digital Pixel COB LED Strips are highly favored for their high brightness and uniform light output. To achieve vibrant dynamic effects and precise color temperature adjustments, the choice of control method is crucial. Addressable Digital Pixel COB LED Strips typically use two main control methods: SPI (Serial Peripheral Interface) and PWM (Pulse Width Modulation). This article will delve into these two control methods and their applications in Addressable Digital Pixel COB LED Strips.

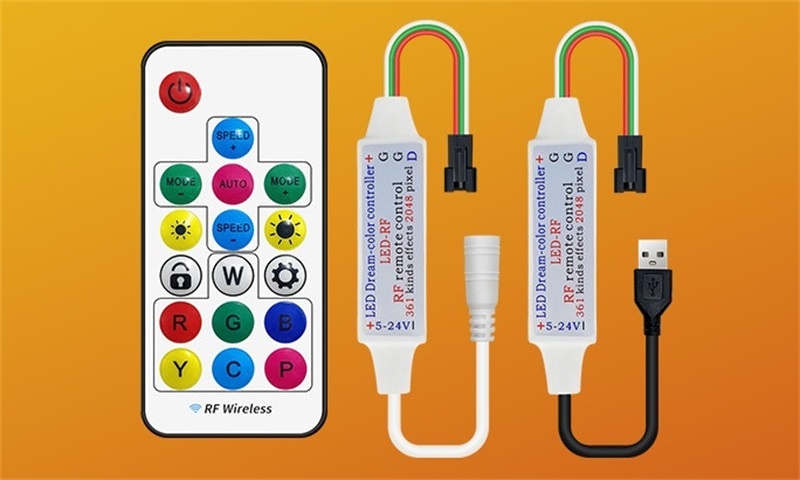

SPI (Serial Peripheral Interface) Control Method

Features

SPI is a synchronous serial communication interface widely used for data transmission between electronic devices. Addressable Digital Pixel COB LED Strips controlled by SPI typically have the following features:

• High-Speed Transmission: SPI can achieve high-speed data transmission, suitable for fast-response lighting effects.
• Fine Control: Allows precise control of each LED chip's brightness and color, ideal for complex lighting changes and animation effects.
• Data Link: Control signals are transmitted via data and clock lines, enabling each LED module to independently receive and process data.

Advantages

• High Precision: Allows precise control over each LED, making it suitable for applications requiring complex lighting effects.
• Fast Response: High data transmission speed enables smooth dynamic effects.

Applications

• Stage Lighting: Suitable for complex lighting programming and high-precision control.
• Large Displays: Used in high-resolution and fast-refreshing LED displays.
• Architectural Lighting: Suitable for complex animation effects and lighting changes on building facades.

PWM (Pulse Width Modulation) Control Method

Features

PWM controls power output by adjusting the duty cycle of the signal. In PWM-controlled Addressable Digital Pixel COB LED Strips, brightness and color are adjusted by changing the current's switching time.

• Duty Cycle Control: Adjusts the LED brightness by changing the signal's duty cycle.
• Simplicity: The implementation principle is relatively simple and easy to design.

Advantages

• Simple Implementation: Control circuit design and implementation are relatively straightforward, suitable for various applications.
• Good Compatibility: Widely compatible with various LED drivers and controllers, easy to integrate.

Applications

• Home Lighting: Suitable for general lighting and simple decorative lighting.
• Commercial Lighting: Used in stores, restaurants, and other ambiance settings.
• Outdoor Advertising: Suitable for decorative lighting on outdoor billboards and signs.

Comparison of SPI and PWM Control Methods

How to Choose the Right Control Method

Choosing the right control method depends on specific application needs:

1. Complex Effect Requirements: If complex lighting animations and high-precision control are required, the SPI control method is more suitable.
2. Simple Control Needs: If the application does not demand high lighting effects and requires easy implementation, the PWM control method is a good choice.
3. Budget and Cost: Consider the project's budget and cost; SPI control might be more expensive, while PWM is relatively economical.

Conclusion

Addressable Digital Pixel COB LED Strips mainly use SPI and PWM control methods. SPI is suitable for applications requiring high precision and fast response, while PWM is ideal for simple control and broad compatibility. Understanding the features and advantages of these two control methods will help you choose the right one to achieve the desired lighting effect. Whether for home lighting, commercial decoration, or professional stage lighting, the appropriate control method will greatly enhance the application of Addressable Digital Pixel COB LED Strips.
