How Many Colors Can an RGB LED Strip Light Produce?

RGB LED strip lights are popular for their ability to produce a wide range of colors. They achieve this through the combination of red, green, and blue LEDs. Here’s a detailed explanation of how many colors an RGB LED strip light can produce and the factors that influence this number.

1. Basic Principle

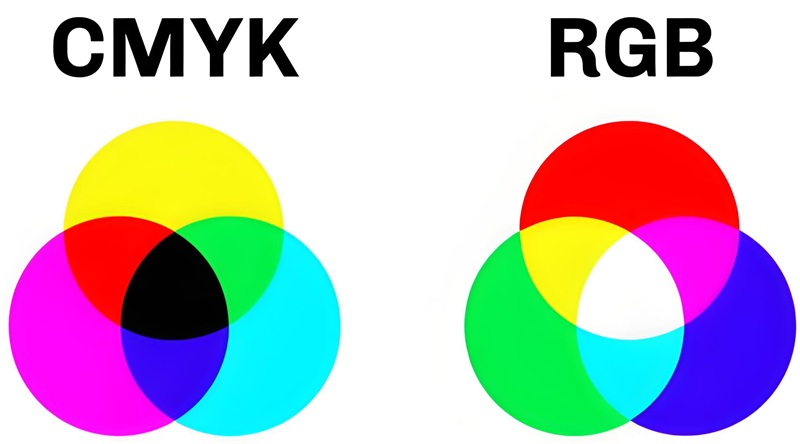

Each LED module in an RGB strip light typically contains red (R), green (G), and blue (B) LED chips. By adjusting the brightness of these three colors, various colors can be mixed. The brightness of each color can usually be adjusted on a scale from 0 to 255, which gives 256 different levels of brightness for each color.

2. Color Calculation

The total number of possible colors is the product of the different brightness levels of the red, green, and blue LEDs:

256×256×256=16,777,216256 \times 256 \times 256 = 16,777,216256×256×256=16,777,216

This means that an RGB LED strip light can theoretically produce 16,777,216 different colors.

3. Practical Color Adjustment

While the theoretical number is over 16 million colors, the actual number of distinguishable colors may be influenced by several factors:

• Controller Precision: Some lower-end controllers may not be able to precisely adjust to all 256 levels for each color.
• Color Gamut Limitations: The actual materials and design of the LED strip may limit the range of colors it can effectively produce.

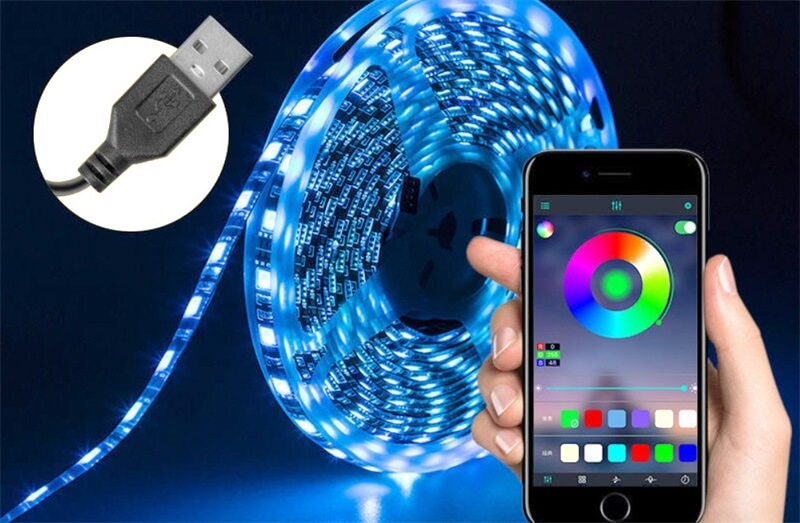

• App or Remote Control: The software or remote used to control the RGB strip may offer a limited preset of hundreds to thousands of colors but often includes custom color mixing options.

RGBW and RGBCW LED Strips

In addition to traditional RGB strips, there are enhanced versions like RGBW and RGBCW strips, which add white LEDs:

• RGBW LED Strips: These strips add a dedicated white LED, allowing for more pure white light and additional color options.
• RGBCW LED Strips: These strips include both cool white (CW) and warm white (WW) LEDs, offering a broader range of color temperatures and more natural white light options.

An RGB LED strip light can theoretically produce over 16 million colors. However, the actual number and quality of the colors available can depend on the precision of the controller, the design of the LED strip, and the control interface. Enhanced versions like RGBW and RGBCW strips provide even more options for color and white light, making them highly versatile for various lighting applications.
