How to Determine if an LED Light Strip is Burnt Out: A Professional Guide

LED light strips are popular for their energy efficiency, versatility, and bright illumination, making them a common choice for home, commercial, and industrial lighting. However, over time or due to improper use, LED strips can malfunction or even burn out. Identifying whether an LED light strip is burnt out is crucial for maintaining an efficient lighting system. Here are the steps to professionally diagnose if an LED light strip is burnt out:

1. Check the Power Supply

The first step is to ensure that the power supply is functioning correctly. LED strips require a specific voltage and current to operate properly. Use a multimeter to measure the output voltage from the power supply and verify that it matches the LED strip's rated voltage. An incorrect voltage can damage the LED strip, leading to premature failure.

2. Inspect the Connections and Wiring

Loose or faulty connections are common causes of LED strips not lighting up or flickering. Examine all connections between the power supply, any controllers or dimmers, and the LED strip. Ensure that all connections are secure and that there are no exposed wires, which could cause short circuits or other electrical issues.

3. Visual Inspection of the LED Strip

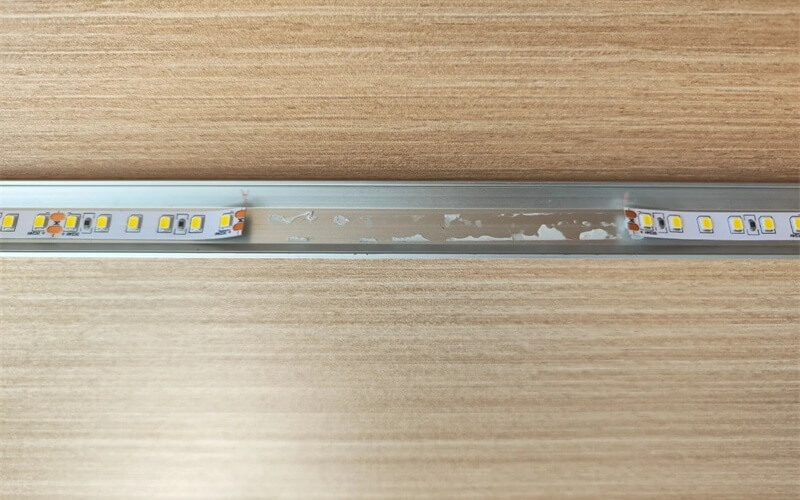

Conduct a visual inspection of the LED strip to check for any obvious physical damage. Look for burn marks, discoloration, or broken LEDs on the strip. Such signs can indicate that the LEDs have been overheated or damaged. Additionally, check for any structural damage, such as cracks or splits in the strip, which can affect its performance.

4. Test Individual Sections of the Strip

If the LED strip is designed in segments, test each section individually to pinpoint the issue. Use a multimeter to check for continuity in each segment. If a particular section shows no continuity, it may be burnt out. For non-segmented strips, checking individual LEDs can help identify if some are malfunctioning.

5. Observe for Color Distortion and Brightness

Burnt-out or failing LEDs can cause color distortion or uneven brightness across the strip. If some parts of the LED strip display different colors or if the lights flicker, it may indicate aging LEDs or power supply issues. Burnt-out LEDs typically appear dimmer than others or may not light up at all.

6. Test with an Alternate Power Source

To rule out power supply issues, try using a different, known working power supply. If the LED strip works with the alternate power source, the problem likely lies with the original power supply. If the strip still does not work, the issue may be with the strip itself.

7. Check Circuit Continuity

Use a multimeter to test the continuity of the circuit in the LED strip. If the multimeter shows no current flow in certain parts of the strip, it may indicate a broken circuit or damaged LEDs. Parts of the strip with no continuity may need to be repaired or replaced.

Conclusion

Determining whether an LED light strip is burnt out involves a thorough inspection of the power supply, connections, physical condition of the strip, and the performance of individual LEDs. By following these steps, you can accurately diagnose the issue and decide whether to repair or replace the LED strip. Proper maintenance and correct usage of LED strips can extend their lifespan and ensure a stable and efficient lighting system.
