30LED/60LED Individually Controllable LED Pixels
| Model | TM1934 LED Strip External IC Addressable DC12V |
| Power | 9W/M & 18W/M |
| CRI | 90 |
| Service life | 50000h |
| Board width | 10mm |
| Color temperature | Full Color |
| Whether dimming | Yes |
| Luminous angle | 120° |
| Maximum run length | Maximum run length up to 16 ft (5 meters) |
| Working voltage | DC12V |
| Cutting length | 84mm/34.5mm |
| Protection grade | IP20,IP65,IP67,IP68 |
| Warranty time | 5 year |
| Tape | 3M 9495 |
| Operating temperature | -20°C to 80°C |
| Certification | UL,CE,RoHS,ERP |

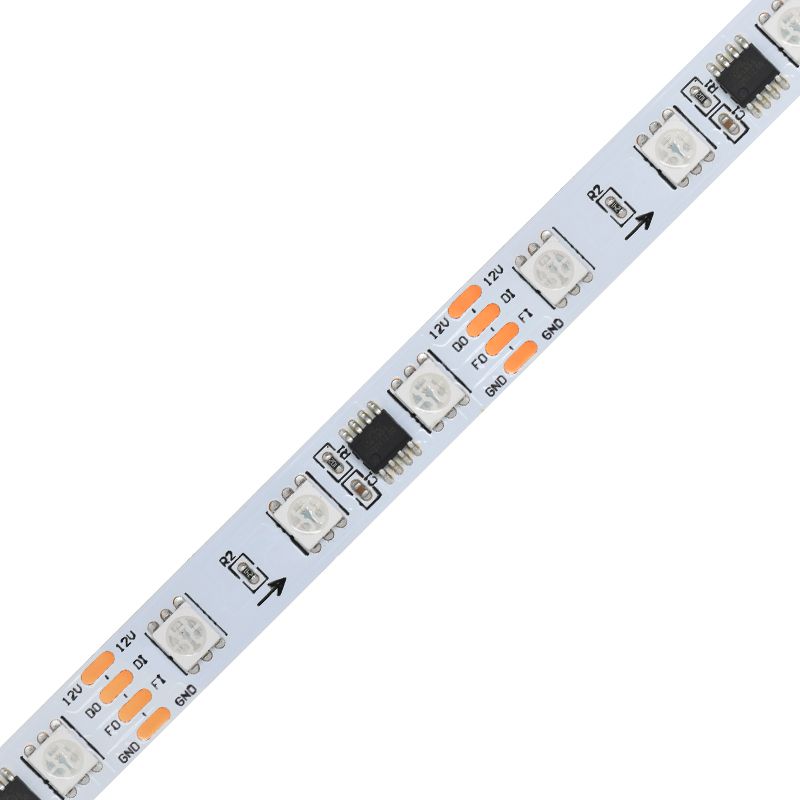

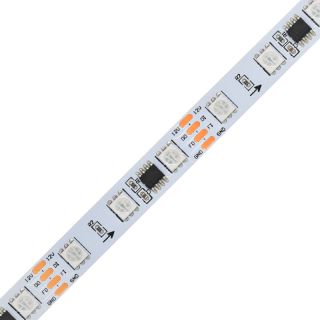

TM1934 LED Strip is an external IC addressable LED strip that operates on DC12V. The TM1934 chip allows for individual control of each LED, giving you the ability to create complex lighting effects. The TM1934 chip is an external IC that is mounted on the LED strip and allows for communication between the LED and an external controller. With the TM1934 chip, you can control the color and brightness of each LED independently, making it ideal for creating dynamic lighting displays. The TM1934 LED strip is compatible with a variety of controllers, including Arduino, Raspberry Pi, and DMX512. The TM1934 LED strip is also available in different lengths and densities, making it suitable for a wide range of applications, from home lighting to commercial installations.
| LED Type | SMD2835 SMD5050 SMD3528 SMD3014 SMD2216 SMD2110 SMD3838 SMD3535 SMD4040 |
| LED Quality | 12leds 18leds 30leds 48leds 60leds 90leds 120leds126leds150leds … |
| Voltage | 3V 5V 9V 12V 24V 36V 48V 72V 110V … |
| CCT | 1800K 2400K 2700K 3000K 4000K 5000K 6000K 10000K 15000K … |
| Power(w/m) | 4.8W/M 6W/M 7.6W/M 10W/M 14W/M 18W/M20W/M 24W/M 36W/M … |
| Lumen/M | 500lm/M 600lm/M 700lm/M 800lm/M 900lm/M 1000lm/M1200lm/M1500lm/M 2000lm/M … |
| PCB | 3MM 4MM 5MM 8MM 10MM 12MM 15MM 20MM 22MM … |
| Waterproof(IP Rating) | IP20 IP54 Silicone spray, IP65 Silicone Dropping, IP67 Silicone Tube, IP68 Silicone gel pouring … |
| Adhesive Tape | 3M 3M 9080A 30OMP 9495 VHB … |
| PCB Print | UL CE ROHS LOGO … |
ZBL Technology Industrial Limited is a Hi-tech enterprise specialized in LED light R&D,producing,selling,post-sell service.We have an experienced technology and marketing team.Technology iskey to energy saving.ZBL Technology is persisted in researching and developing new technologyfor the LED products.Currently,we have a series of independent and know-hows on LED lights.Allour products are produced according to ISO9001 standard. Our main product are LED Strip,SmartStrip Light,COB Strip Light,LED Atmosphere Light,LED Neon Light Strip,Window Light,ChristmasLights,Garden Light etc.And we provide professional OEM/ODM service to customers.Based onadvanced technology,superior product quality,flexible marketing strategy,fast delivery and excellentservice,ZBL Technology has taken a solid first step and is aiming to become the leading role ofLED industry in China.We are now in the period of fast development,and willing to establish firmand sustainable partnership with the customers in domestic and abroad.
Common installation methods of 5050 light bar (the following 5050 SMD 60-lamp RGB light bar as an example)
(1) 5 meters + adapter
We need to know the common SMD 5050 light bar 60 lights a meter for 14.4W, 30 lights is 7.2W, excluding power consumption under normal operation SMD 60 lights 5050 light bar power is 12W per meter. Then we are common for 5 meters a volume of light bars, that is, 5 * 12W = 60W, then we will match the power adapter according to our corresponding power. Common 5 meters RGB will be equipped with a good adapter. Installation is also very simple, as long as the docking arrow is connected well, there is no problem.
(2) 5m RGB light bar connected to switch power supply We all know that the common low-voltage light bar is 12V or 24V, the RGB light bar on the market is DC connector, so we must use DC connector to connect one end to the controller and the other end to switch power supply
(3) The installation method of more than 10 meters light bar as a decoration expert we all know that RGB controller can only control a considerable length, we can choose a larger controller or connect through an amplifier. Common project cases are installed in series and parallel connection.
Series connection: We calculate the power according to the total number of meters of our light bar, configure the corresponding power supply and controller (controller can control the maximum number of meters) + amplifier (power amplifier mainly transmits the control signal) parallel connection: this way we can use a splitter box.
