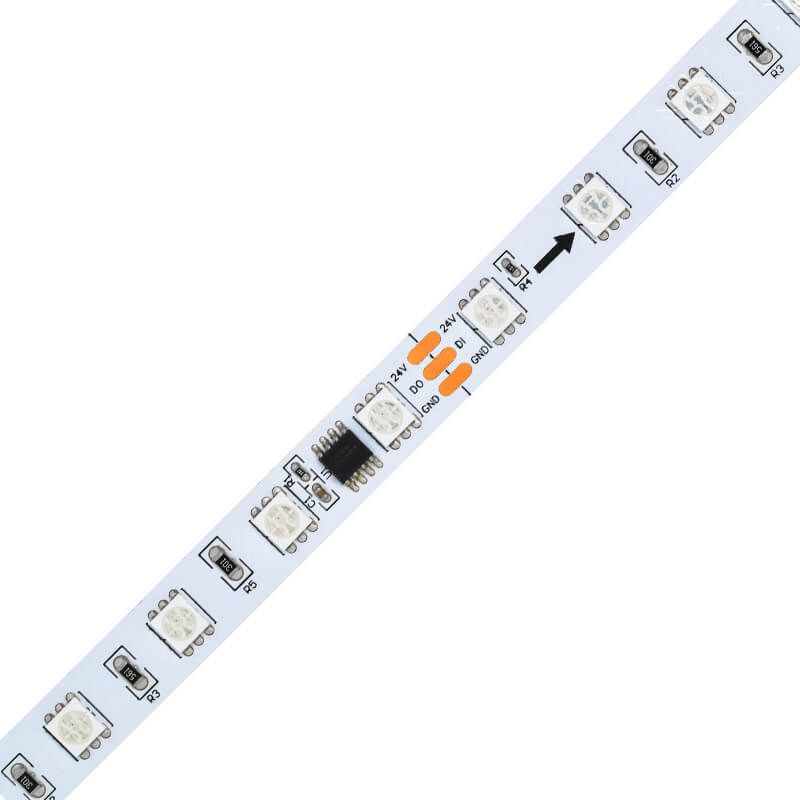

Full Color External IC WS2811/SM16703 RGB5050 60LEDs/m DC24V - 1

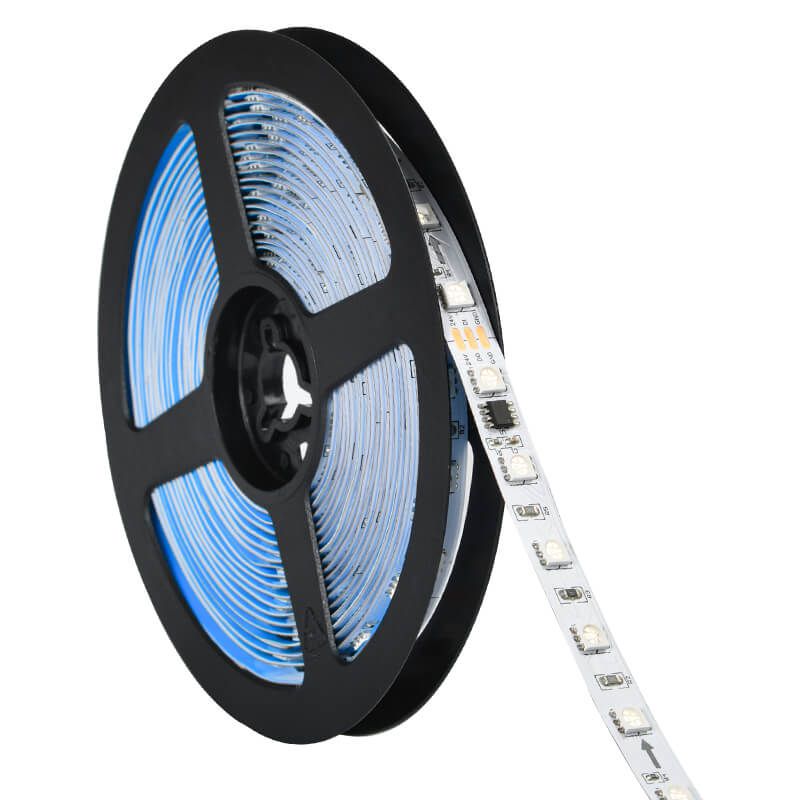

Full Color External IC WS2811/SM16703 RGB5050 60LEDs/m DC24V - 2

Full Color External IC WS2811/SM16703 RGB5050 60LEDs/m DC24V

Repeated folding does not break, aging resistance does not yellow

Model	Full Color External IC WS2811/SM16703 RGB5050 60LEDs/m
Power	18W/M
CRI	97
Service life	50000h
Board width	10mm
Color temperature	Full Color
Whether dimming	Yes
Luminous angle	120°
Maximum run length	Maximum run length up to 16 ft (5 meters)
Working voltage	DC24V
Cutting length	69mm
Protection grade	IP20,IP65,IP67,IP68
Warranty time	5 year
Tape	3M 9495
Operating temperature	-20°C to 80°C
Certification	UL,CE,RoHS

Description
Examples
FAQ
GET FREE QUOTE NOW
Why Choose Us

RGB multi-color strips are very interesting strips with multiple colors for every scene in life and can create any color you want.

Repeated folding does not break, aging resistance does not yellow, indoor and outdoor can be used.

High quality SMD 5050 LED with long life and high brightness, can display thousands of colors and effects with proper controller. It can also display pictures and videos with special controllers and programs. 99.99% pure gold wire in the chip.
High luminous efficiency, long life and uniform color. the LED passed LM 80 test
Good consistency

CUSTOM SOLUTION

If you do not find the product or model you are looking for, please contact us for advice

Custom LED Strip: Not only offer standard products bu with customzed package,specification, length…

Custom Aluminum Profle: Factory finished aluminum profile and cove options are cuttable in specified length accordingto custom requirements

Custom Assemble Solutlons: Supply LEDStrip & aluminum profle asssembling service and simplify the installation process forUsers,Personalized length and color temerature is avaiable.

LED Type	SMD2835 SMD5050 SMD3528 SMD3014 SMD2216 SMD2110 SMD3838 SMD3535 SMD4040
LED Quality	12leds 18leds 30leds 48leds 60leds 90leds 120leds126leds150leds …
Voltage	3V 5V 9V 12V 24V 36V 48V 72V 110V …
CCT	1800K 2400K 2700K 3000K 4000K 5000K 6000K 10000K 15000K …
Power(w/m)	4.8W/M 6W/M 7.6W/M 10W/M 14W/M 18W/M20W/M 24W/M 36W/M …
Lumen/M	500lm/M 600lm/M 700lm/M 800lm/M 900lm/M 1000lm/M1200lm/M1500lm/M 2000lm/M …
PCB	3MM 4MM 5MM 8MM 10MM 12MM 15MM 20MM 22MM …
Waterproof(IP Rating)	IP20 IP54 Silicone spray, IP65 Silicone Dropping, IP67 Silicone Tube, IP68 Silicone gel pouring …
Adhesive Tape	3M 3M 9080A 30OMP 9495 VHB …
PCB Print	UL CE ROHS LOGO …

MULTIPLE AUTHENTICATION

Every ZBL product,from design to material selection to production qualityinspection, is always higher than the industry standard, has gone throughlayers of safety testing, and has passed many international safety certifications before finally reaching your hands.

3M DOUBLE-SIDED ADHESIVE

ZBL LED strips light are made of 3M double-sided adhesive tape, which is very sticky, can not only isolate moisture and play a sealing role,but also have the characteristics of solubility resistance, high temperatureand low temperature resistance, etc.Customers can also customize waterproof double-sided adhesive tape with waterproof characteristics.

ABOUT US

Self-production and self-marketing, the source of the factory

ZBL Technology Industrial Limited is a Hi-tech enterprise specialized in LED light R&D,producing,selling,post-sell service.We have an experienced technology and marketing team.Technology iskey to energy saving.ZBL Technology is persisted in researching and developing new technologyfor the LED products.Currently,we have a series of independent and know-hows on LED lights.Allour products are produced according to ISO9001 standard. Our main product are LED Strip,SmartStrip Light,COB Strip Light,LED Atmosphere Light,LED Neon Light Strip,Window Light,ChristmasLights,Garden Light etc.And we provide professional OEM/ODM service to customers.Based onadvanced technology,superior product quality,flexible marketing strategy,fast delivery and excellentservice,ZBL Technology has taken a solid first step and is aiming to become the leading role ofLED industry in China.We are now in the period of fast development,and willing to establish firmand sustainable partnership with the customers in domestic and abroad.

ZBL Lighting Team

EXHIBITION

Since its establishment to participate in a number of exhibitions

we exhibition

Swift Packaging and Quick Delivery!

We understand the value of your time, so our dedicated team is committed to fast packaging and prompt delivery.

led strip light shipping method

led strip light shipping

Q1: What does the number of SMD mean?
Known as surface mounted diodes (SMD) are all identified by a four-digit number. This code is less complicated than it looks – it simply indicates the size of the LED chip. For example, the dimensions of SMDs on 5050 LED strip lights are 5.0mm x 5.0mm.

Q2: Which is the best SMD for LED Strips?
LEDs like 3528s, 5050s, 2835s and 5630s aren’t really different types of chip at all – they’re simply different sizes. Each has its own spec: different power requirements and output brightness. The best choice depends on what’s right for your project.

Q3: What does SMD3528 mean?
Measuring 3.5mm x 2.8mm, the 3528 SMD is a smaller chip than the 5050 LED strip SMD. You will most often find 3528 chips on 12-volt LED strips, drawing 4.8 watts (also known as 4.8w p/m or 5w p/m LED tape) with 60 SMDs per meter.

Q4: What does SMD5050 mean?
Measuring 50mm x 50mm, the 5050 SMD is larger than the 3528 SMD. These dimensions mean that each 5050 SMD is big enough to house four separate LED chips (sometimes called ‘quad LEDs’).

Q5: What does SMD2835 mean?
2.8mm x 3.5mm in size, the 2835 chip is available for various LED tape light.

Q6: What does SMD5630 mean?
5630 SMDs have dimensions of 5.6mm x 3.0mm.

Q7: What does SMD2216 mean?
A recent development, 2216 SMD LED chips are much smaller and much more efficient than many earlier SMD models. The smaller size of the diodes (just 2.2mm x 1.6mm) means it’s possible to fit more of them on a length of PCB strip – offering more brightness,without the need for more power

Get a quote now

Our sales will reply to you within 2 hours.

Why Choose Us

5-year warranty, 24-hour online service
Strong R&D team to make your products more competitive
Fully automatic LED intelligent production equipment with a monthly capacity of 20 million meters to ensure on-time delivery
More than 20 authoritative institutions certified, professional production of light strips for 15 years.
Adopting high quality accessories and rigorous testing in multiple processes.
