Series vs. Parallel Connection for LED Light Strips: An In-depth Analysis

In LED lighting design, two common circuit connection methods are series and parallel connections for LED light strips. Each method has its own characteristics and applications, and choosing the right connection is essential to achieve desired lighting effects and maximize the lifespan of the LED light strips.

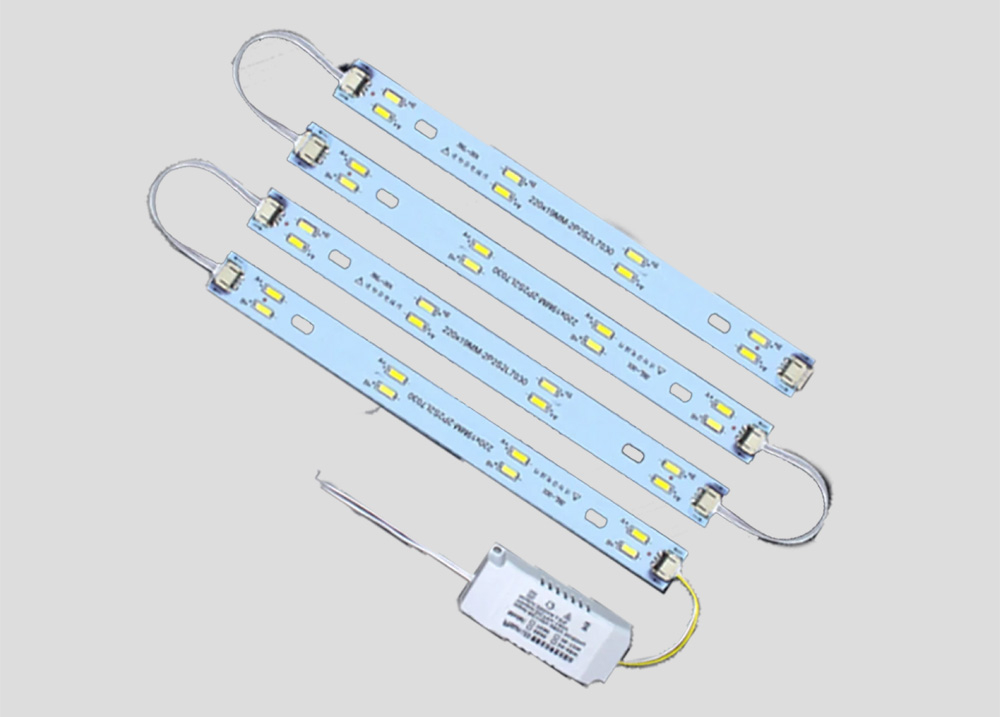

Series Connection:

In a series connection, the positive end of one LED light strip is connected to the negative end of the next, and so on. Series connections have the following characteristics:

1. Equal Current: In series connections, all LED light strips carry the same current since they are part of the same circuit. If one light strip becomes damaged or disconnected, it can result in the failure of all light strips in the series circuit.

2. Voltage Addition: Each LED light strip in a series connection adds to the total voltage, leading to an increase in overall voltage as the number of strips in the series increases. When designing a series connection, it is crucial to ensure that the power supply can provide sufficient voltage to meet the requirements of all the LED light strips.

3. Simple Connection: Series connections are relatively straightforward, requiring the correct connection of positive and negative ends of the light strips. This connection method is suitable for relatively simple lighting designs.

Series connection's advantage lies in equal current and simple connection. However, its drawback is that if one light strip fails, it may affect the functionality of all other light strips in the series circuit.

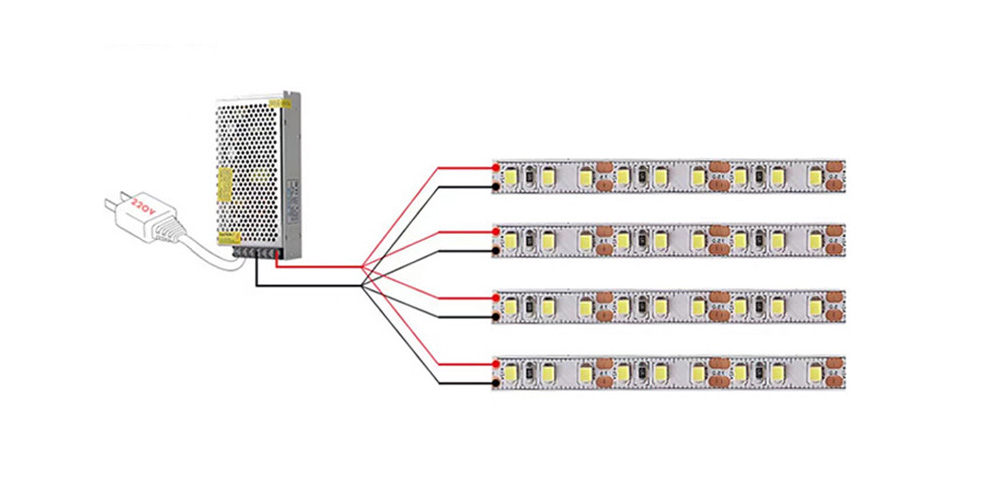

Parallel Connection:

In a parallel connection, the positive ends of all LED light strips are connected together, and the negative ends are also connected together. Parallel connections have the following characteristics:

1. Current Division: In parallel connections, current is divided among each LED light strip, resulting in each strip carrying a relatively smaller current. If one light strip becomes damaged, it will not affect the operation of the other light strips.

2. Equal Voltage: In parallel connections, all LED light strips have the same voltage as they are connected to the same power supply.

3. More Complex Connection: Parallel connections are more complex, requiring careful connection of each LED light strip's positive and negative ends. This connection method is suitable for more complex lighting designs.

Parallel connection's advantage lies in current division and independent connections. Even if one light strip fails, it will not impact the operation of the other light strips. However, its drawback is that the voltage remains the same, making it suitable for a limited number of light strips.

Selecting the Right Connection:

The choice between series and parallel connections depends on specific lighting design requirements. Here are some suggestions:

1. Series Connection: Suitable for simpler lighting designs where multiple light strips need to work together, and all strips require the same brightness and color.

2. Parallel Connection: Suitable for more complex lighting designs where each light strip needs to work independently, and the failure of one strip should not affect others.

In practical applications, some situations may require a combination of both series and parallel connections based on specific requirements.

Conclusion:

Series and parallel connections are common circuit connection methods for LED light strips. Series connections are suitable when multiple light strips need to work together with equal current, while parallel connections are ideal when each light strip should work independently with current division. Choosing the appropriate connection will ensure better lighting effects and experiences for your lighting design. Always follow proper installation steps, ensure the power supply meets the requirements, and safeguard the stability and lifespan of the LED light strips.
