High Quality OEM/ODM LED Strip Manufacturer
Safe Voltage | APP Control | REMOTE CONTROL | MUSIC MODE

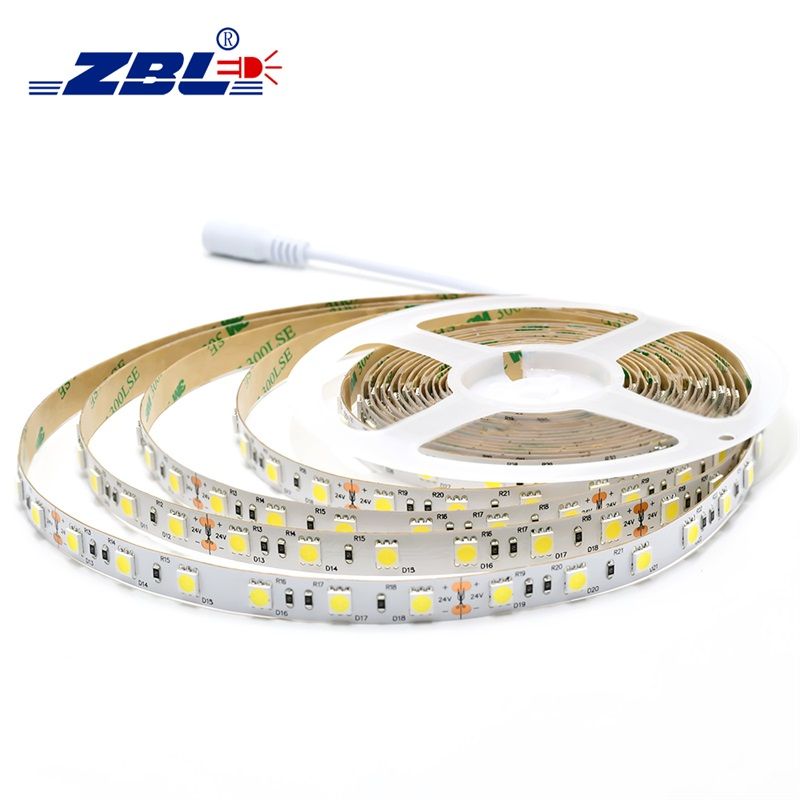

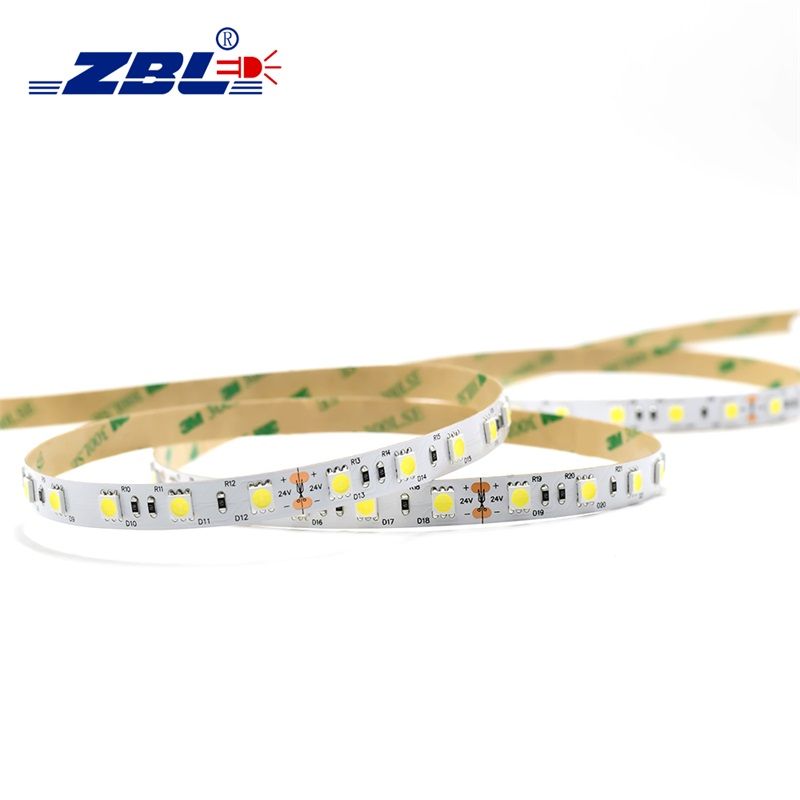

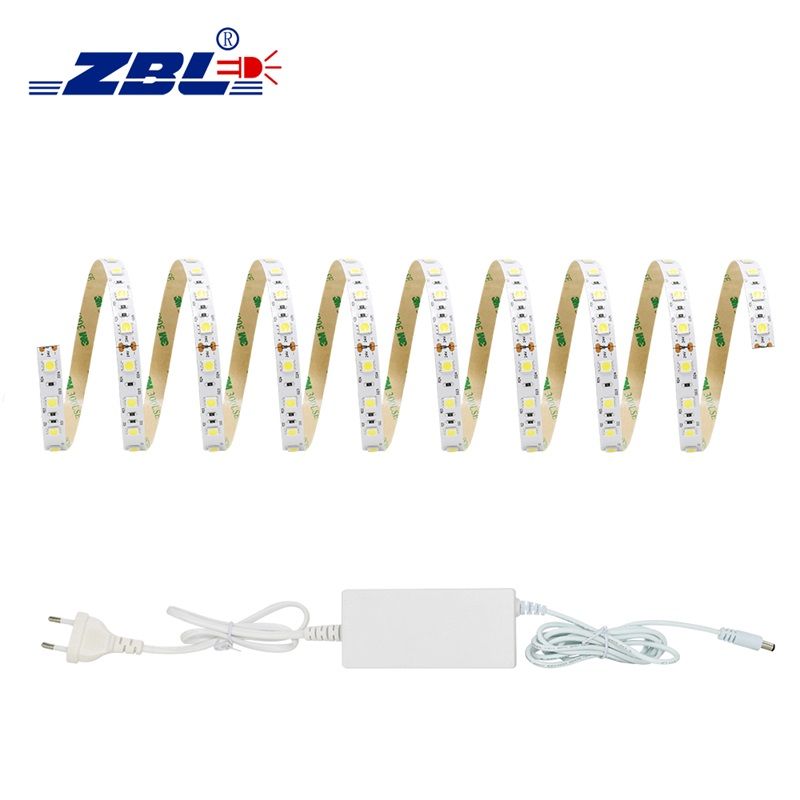

|Name||SMD5050 60LEDs/M LED Strip|
|Cutting Unit||3 LED 50mm / 6 LED 100mm|
|Certifications||UL CE BIS RoHS ERP|
ZBL focus on LED strip manufacturing for 12 years, with a mature SMT production process and COB packaging process, each chip is strong, durable and neat, as a light manufacturer, we continue to develop and improve, just to let you fully experience the fun and enjoyment of light. To meet your pursuit of color, we keep improving to make the CRI of the light strip reach an amazing 97. As one of the highest CRI LED light strip manufacturers in the market, we are still working hard on R&D and manufacturing to make quality products to provide more help in your project design and creativity.
1. 5050 high brightness large scale chip lamp beads.
2. double-sided embossed copper flexible FPC.
3. any color available.
4. low voltage DC12V/24V power supply.
5. 3 lights per interval / 6 lights arbitrary cutting.
6. Original imported 3M double-sided adhesive
Warranty: 3 years or 13000 hours
1. The product can only be used after the removal of the package. Before use, you need to confirm that the product has not been damaged in transit, if damaged can not be installed and used
2. Please select the appropriate power supply when using, and check the voltage range before use
3. The best working temperature of the product is -25°C~+60°C, and the storage temperature is -40°C~+80°C.
4. Install the product in a well-ventilated and heat dissipation place, not recommended to install in a sealed space, otherwise it will affect the product's heat dissipation
5. Please cut off the power when installing, then power on, do not touch the product when using
6. Please pay attention to the protection of static electricity during the installation and use
7. According to the waterproof effect of the product can choose to use in indoor or outdoor
8. Avoid looking directly at the luminous body with your eyes during the use of the product
9. Please strictly refer to the product parameters and instructions for use
|Product Name||SMD5050 60LEDs/M LED Strip Light|
|Series||Z Series||B Series||L Series|
|Work Voltage||12V DC||24V DC||12V DC||24V DC||12V DC|
|Cutting Unit||50mm(3 leds)||100mm(6led)||50mm(3 leds)||100mm(6led)||50mm(3 leds)|
|PCB Thinckness||2 oz||2 oz||3 oz|
|LED Type||SMD2835 SMD5050 SMD3528 SMD3014 SMD2216 SMD2110 SMD3838 SMD3535 SMD4040|
|LED Quality||12leds 18leds 30leds 48leds 60leds 90leds 120leds126leds150leds …|
|Voltage||3V 5V 9V 12V 24V 36V 48V 72V 110V …|
|CCT||1800K 2400K 2700K 3000K 4000K 5000K 6000K 10000K 15000K …|
|Power(w/m)||4.8W/M 6W/M 7.6W/M 10W/M 14W/M 18W/M20W/M 24W/M 36W/M …|
|Lumen/M||500lm/M 600lm/M 700lm/M 800lm/M 900lm/M 1000lm/M1200lm/M1500lm/M 2000lm/M …|
|PCB||3MM 4MM 5MM 8MM 10MM 12MM 15MM 20MM 22MM …|
|Waterproof(IP Rating)||IP20 IP54 Silicone spray, IP65 Silicone Dropping, IP67 Silicone Tube, IP68 Silicone gel pouring …|
|Adhesive Tape||3M 3M 9080A 30OMP 9495 VHB …|
|PCB Print||UL CE ROHS LOGO …|
ZBL Technology Industrial Limited is a Hi-tech enterprise specialized in LED light R&D,producing,selling,post-sell service.We have an experienced technology and marketing team.Technology iskey to energy saving.ZBL Technology is persisted in researching and developing new technologyfor the LED products.Currently,we have a series of independent and know-hows on LED lights.Allour products are produced according to ISO9001 standard. Our main product are LED Strip,SmartStrip Light,COB Strip Light,LED Atmosphere Light,LED Neon Light Strip,Window Light,ChristmasLights,Garden Light etc.And we provide professional OEM/ODM service to customers.Based onadvanced technology,superior product quality,flexible marketing strategy,fast delivery and excellentservice,ZBL Technology has taken a solid first step and is aiming to become the leading role ofLED industry in China.We are now in the period of fast development,and willing to establish firmand sustainable partnership with the customers in domestic and abroad.
Q: What do you mean by dimming to warm light?
Dim to Warm is a technology that reduces the color temperature of LEDs when dimming, allowing for smooth changes in warm white light (from 3000K to 1800K). Works to mimic the familiarity of dim incandescent lighting, and the feeling of natural light, while providing efficient illumination.
Q: How does dimming to warm light work?
Dimming to warm light has an internal control circuit that first dims the 3000K LED chip and then begins to control the current to the 1800K chip. As it gets darker, the color temperature gets warmer. Dark to Warm follows the dimming curve to simulate the dimming of incandescent lamps. This technology allows standard dimmers to provide sophisticated control and smooth, natural dimming.
Q: What is the relevant color temperature?
The color of light can be quantified by reference to its color temperature. White light is measured in degrees Kelvin (K). Most white light falls in the spectrum between 1800K and 6200K. As it drops below 3000K, the light becomes significantly warmer. At the other end of the spectrum, the lights become cooler and emit a blue tint as they rise above 6500K.
Q: How long is the product warranty?
Due to our strong confidence in the quality of our products, we offer a 10-year warranty on the ZBL Dim to Warm series of LED lights. For more information, please read our warranty policy.
Q: What do I need to turn on the lights?
To turn on these LED strips, you will need to connect them to a 24V low voltage power supply. The type of power supply may vary, as you can use a dimmable power supply and pair it with an AC wall dimmer, or use a non-dimmable power supply with a single color compatible controller. If desired, we recommend using our solderless clamp-on connectors to connect the strips after they have been cut to length. If you are familiar with soldering, you can continue to do so for more permanent connections, but test your expertise on a small section of strip before committing to soldering the entire project.
Q: Which power source do I need for my (x) feet of LEDs?
The length of the LED strip in your project will determine the size of the power supply you need. Check out our power supply chart to find the exact LED power supply you need.
Q: What are CRI and TLCI and why should I care?
The Color Rendering Index (CRI) measures how colors appear properly under a light source compared to natural sunlight. The index is measured on a scale of 0-100, with 100 being a perfect rating for color accuracy, which means that colors appear naturally in pure daylight. High CRI lighting is found everywhere, but is especially valuable. The bottom line: the higher the CRI, the higher the quality of the light source.
95 - 100 → extraordinary color rendering. Colors look the way they should, subtle tones pop and accentuate, skin tones look beautiful, art comes alive, background plastic and paint show it is truly beautifully saturated. You have to see it to believe it!
90 - 95 → Outstanding color acting! Almost all colors "pop" and are easily distinguishable. Obviously excellent lighting starts at a CRI of 90.
80 - 90 → Good color rendering, most colors are well rendered. You may not see the fully saturated items you want, but most people won't notice.
60 - 75 → Poor color rendering. Items and colors may look unsaturated, monotonous, and sometimes unrecognizable (can't see the difference between black and navy socks).
Q: What is lumens (lumens)?
This is the quantifiable amount of light produced by an LED strip or other product that produces light as seen by the human eye. In other words, it is a way for us to measure how much light is produced. When comparing LED strips, you need to compare lumen output as well as CRI, watts per foot, warranty and box options.
Q: Can I cut my own strips?
Yes, our LED strips can be cut to the length you want. Using sharp scissors, you can cut every 3 3/8". You will see the cut marks printed on the strip.
Q: What is the importance of UL certification?
Underwriters Laboratories (UL) is an independent, non-profit organization that focuses on evaluating products for safety certification. This means you can use and install these LEDs in commercial spaces, industrial applications and homes knowing that these are safe products.
Our sales will reply to you within 2 hours.
5-year warranty, 24-hour online service
Strong R&D team to make your products more competitive
Fully automatic LED intelligent production equipment with a monthly capacity of 20 million meters to ensure on-time delivery
More than 20 authoritative institutions certified, professional production of light strips for 11 years.
Adopting high quality accessories and rigorous testing in multiple processes.
