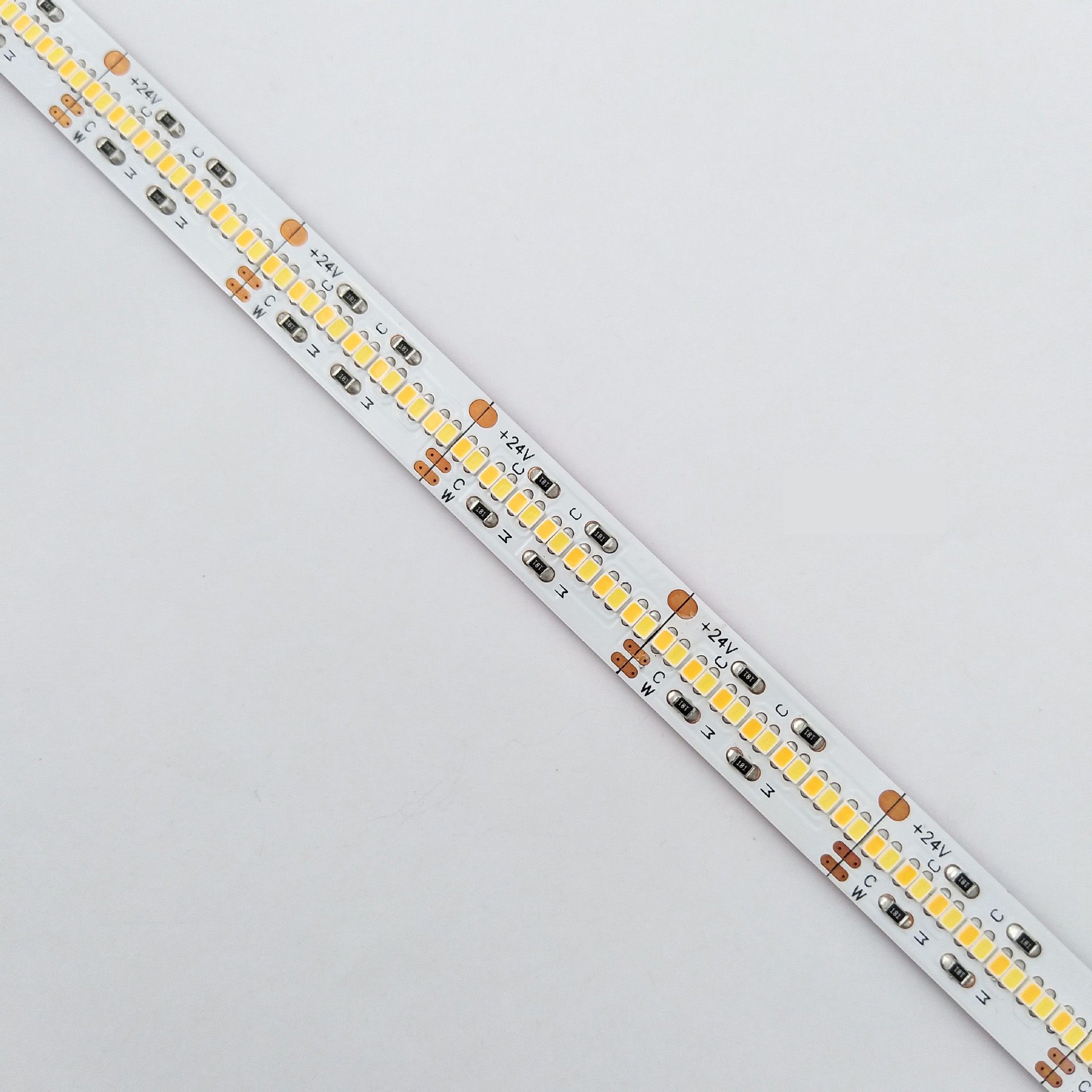

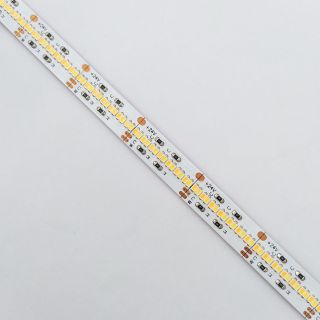

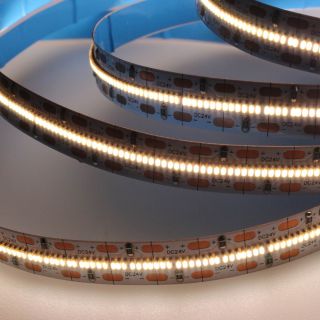

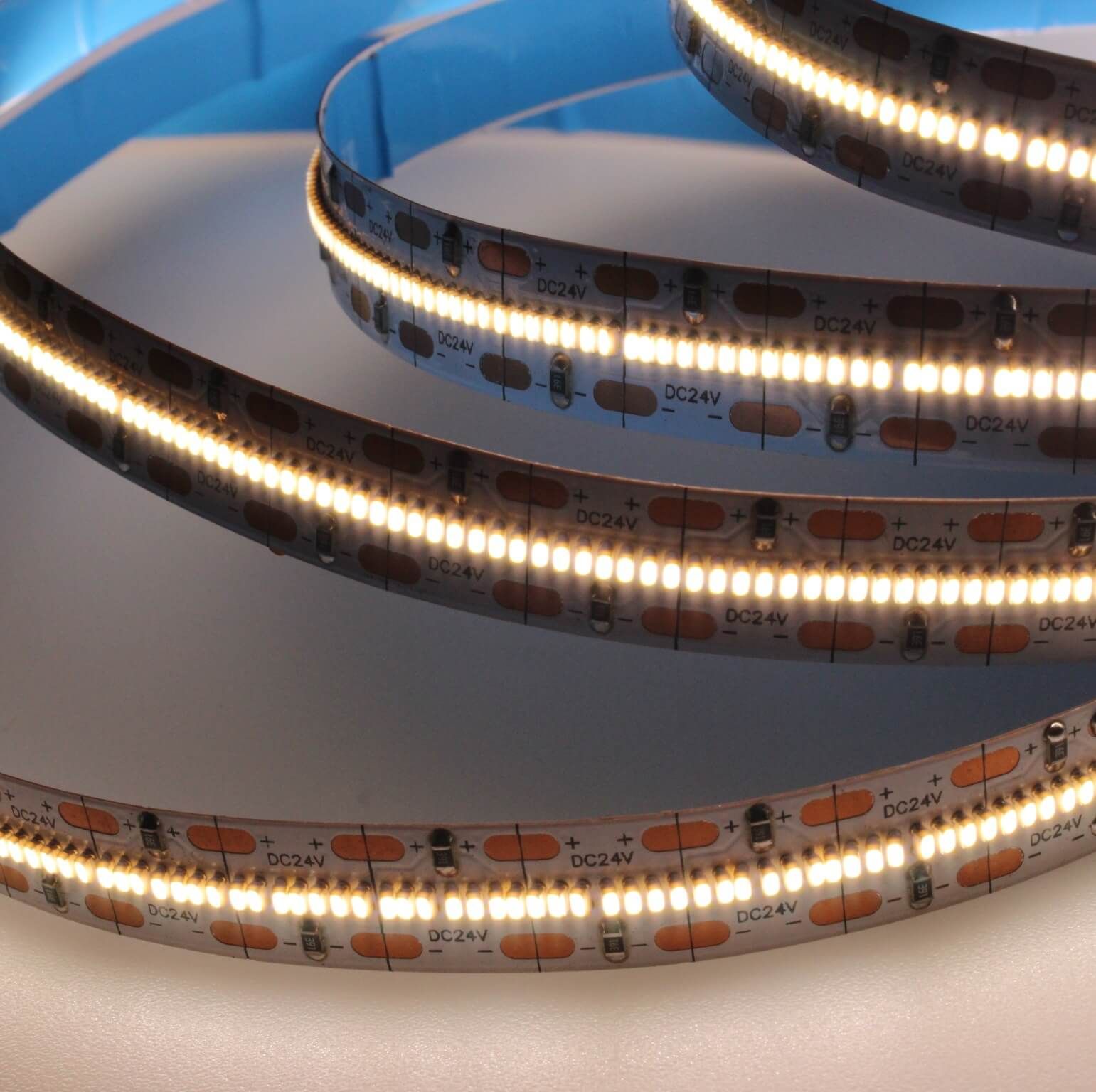

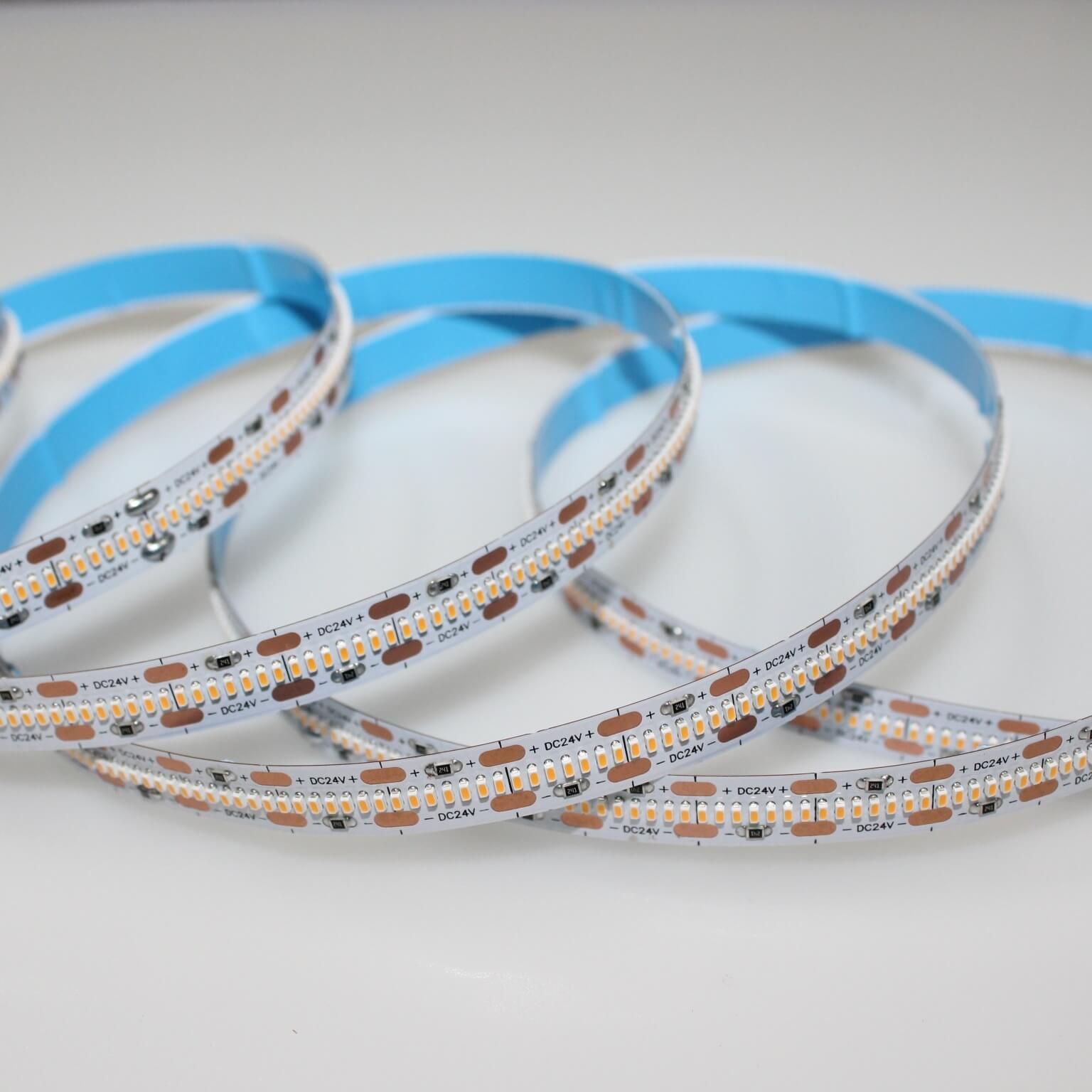

SMD2216 LED Strip DC24V 140LEDs/m 2700K-6200K CRI97+
SMD2216 LED Strip DC24V 140LEDs/m 2700K-6200K CRI97+ - 1
SMD2216 LED Strip DC24V 140LEDs/m 2700K-6200K CRI97+ - 2
SMD2216 LED Strip DC24V 140LEDs/m 2700K-6200K CRI97+ - 3
SMD2216 LED Strip DC24V 140LEDs/m 2700K-6200K CRI97+ - 4
SMD2216 LED Strip DC24V 140LEDs/m 2700K-6200K CRI97+ - 5
SMD2216 LED Strip DC24V 140LEDs/m 2700K-6200K CRI97+ - 1
SMD2216 LED Strip DC24V 140LEDs/m 2700K-6200K CRI97+ - 2
SMD2216 LED Strip DC24V 140LEDs/m 2700K-6200K CRI97+ - 3
SMD2216 LED Strip DC24V 140LEDs/m 2700K-6200K CRI97+ - 4
SMD2216 LED Strip DC24V 140LEDs/m 2700K-6200K CRI97+ - 5

SMD2216 LED Strip DC24V 140LEDs/m 2700K-6200K CRI97+

24V, 2700K-6200K,Customize

Model SMD2216 140LEDs/M LED Strip
Power 14W/M
CRI 97
Service life 50000h
Board width 8mm
Color temperature 2700K/3000K/4000K/6200K
Whether dimming Yes
Luminous angle 120°
Maximum run length Maximum run length up to 16 ft (5 meters)
Working voltage DC24V
Cutting length 7 LEDs 50mm
Protection grade IP20,IP65,IP67,IP68
Warranty time 5 year
Tape 3M 9495
Operating temperature -4°F to 113°F (-20°C to 45°C)
Certification UL,CE,RoHS,ERP
  • Description
  • Examples
  • FAQ
  • GET FREE QUOTE NOW
  • Why Choose Us

Product Specifications Details

Model No. LED Type LED Qty (pcs/m) CCT Work Voltage Power Lumen (Lm/m) Ra
SMD2216-140-6200K-V24 2216 140 6200K±300K 24V DC 14W/M 1630 Lm 97+
SMD2216-140-4000K-V24 2216 140 4000K±200K 24V DC 14W/M 1650 Lm 97+
SMD2216-140-3000K-V24 2216 140 3000K±100K 24V DC 14W/M 1600 Lm 97+
SMD2216-140-2700K-V24 2216 140 2700K±100K 24V DC 14W/M 1580 Lm 97+

Description of SMD2216 led flexible strip lights

  • 【Waterproof Led Light Strip】The light strip is waterproof and non-waterproof option, an ideal piece for either indoor or outdoor use. But don’t put this under the water.
  • 【Safe to Use】 The led flexible strip lights working voltage is 12V or 24V. extremely low heat. It is touchable and very safe for using. Self-adhesive back with adhesive tape for secure and easy application.

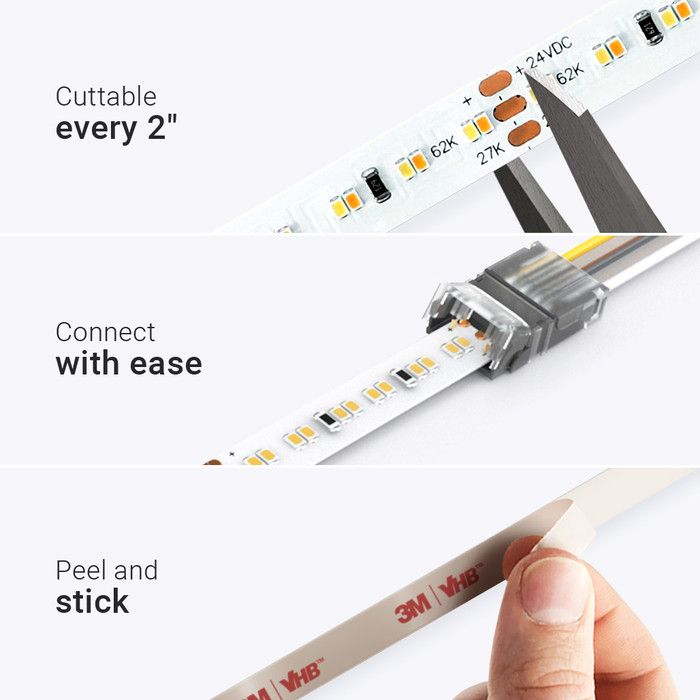

  • 【Cuttable and Linkable】This flexible led light can be cut along the cutting marks, without damaging the rest strips and it also can be link for your need.
  • 【Warranty】2-5 years Risk-Free Warranty makes your purchase worry-free. Any issue arises, Please feel free to contact us , we will reply you as soon as possible within 24 hours.
  • 【Environmental safety】 the use of high quality highlight SMD 2216 LED. Has a small power consumption, heat generated, no glare, impact resistance and so on. Low-voltage DC 24V power supply, high safety and reliability.
  • Rich and varied colors according to customer needs through the controller to adjust.
  • Flexible ribbon for curving around bends,completely smooth and even light spread, solving the uneven luminous problem.

01b4a45ce982bfd9



Advantages

The SMD 2216 strip light is the most innovative led light. It has more advantages in applications;

  • leds being with small sized 22*16mm and thin, which makes wide viewing angles.
  • each led consumes 0.06w, it means 300leds consume 18w only, basicly save energy
  • The lighting efficiency is similar with SMD2835 but smaller.
  •  The working effeciancy of smd2216 in production is higher than big sized smd like smd 5050, smd 3528, smd 2835 ect,so its cost saved
  • SMD2216 led has better flexibility in dessign for it’s small size, more accurate for lighting designers
  •  More ideal and easier for irregular installation and assemling in applications.
  • people can choose 120 leds, 240 leds, 250 leds, 300 leds and 420 leds per meters according to lighting area and brightness requirment.
  • SMD2216 is being with stable color consistency, easy to control in mass production.
  • SMD2216 has more even lights with high density led quantities on PCB,which makes it an ideal light source led linear fixture and profile.
  • people can also choose IP65,IP67,IP68 waterproof versions for outdoor projects and exteriror lighting system.
  • both DC12V and DV24V are avaible for customers choice.



Application of SMD2216 led flexible strip lights

  • Widely used for home decoration use, hotels, clubs, shopping malls.
  • Architectural decorative lighting, boutique atmosphere lighting.
  • Extensively applied in Backlighting, concealed lighting, channel letter lighting.
  • Emergency & security lighting, advertisement sign lighting.
  • Decorative lights for holiday, event, show exhibition.
  • Applicable for automobile and bicycle decoration, border or contour lighting.

CUSTOM SOLUTION

Welcome to consult customer service customization
Custom LED Strip
Not only offer standard products bu with customzed package,specification, length…
Custom Aluminum Profle
Factory finished aluminum profile and cove options are cuttable in specified length accordingto custom requirements
Custom Assemble Solutlons
Supply LEDStrip & aluminum profle asssembling service and simplify the installation process forUsers,Personalized length and color temerature is avaiable.
LED Type SMD2835 SMD5050 SMD3528 SMD3014 SMD2216 SMD2110 SMD3838 SMD3535 SMD4040
LED Quality 12leds 18leds 30leds 48leds 60leds 90leds 120leds126leds150leds …
Voltage 3V 5V 9V 12V 24V 36V 48V 72V 110V …
CCT 1800K 2400K 2700K 3000K 4000K 5000K 6000K 10000K 15000K …
Power(w/m) 4.8W/M 6W/M 7.6W/M 10W/M 14W/M 18W/M20W/M 24W/M 36W/M …
Lumen/M 500lm/M 600lm/M 700lm/M 800lm/M 900lm/M 1000lm/M1200lm/M1500lm/M 2000lm/M …
PCB 3MM 4MM 5MM 8MM 10MM 12MM 15MM 20MM 22MM …
Waterproof(IP Rating) IP20 IP54 Silicone spray, IP65 Silicone Dropping, IP67 Silicone Tube, IP68 Silicone gel pouring …
Adhesive Tape 3M 3M 9080A 30OMP 9495 VHB …
PCB Print UL CE ROHS LOGO …

MULTIPLE AUTHENTICATION

Every ZBL product,from design to material selection to production qualityinspection, is always higher than the industry standard, has gone throughlayers of safety testing, and has passed many international safety certifications before finally reaching your hands.

THE LIGHTING COLORSARE MORE REALISTIC

The display index of > 90 is adopted to make the light emitted more like natural light and restore the original light color

3M DOUBLE-SIDED ADHESIVE

ZBL LED strips light are made of 3M double-sided adhesive tape, which is very sticky, can not only isolate moisture and play a sealing role,but also have the characteristics of solubility resistance, high temperatureand low temperature resistance, etc.Customers can also customize waterproof double-sided adhesive tape with waterproof characteristics.

ABOUT US

Self-production and self-marketing, the source of the factory

ZBL Technology Industrial Limited is a Hi-tech enterprise specialized in LED light R&D,producing,selling,post-sell service.We have an experienced technology and marketing team.Technology iskey to energy saving.ZBL Technology is persisted in researching and developing new technologyfor the LED products.Currently,we have a series of independent and know-hows on LED lights.Allour products are produced according to ISO9001 standard. Our main product are LED Strip,SmartStrip Light,COB Strip Light,LED Atmosphere Light,LED Neon Light Strip,Window Light,ChristmasLights,Garden Light etc.And we provide professional OEM/ODM service to customers.Based onadvanced technology,superior product quality,flexible marketing strategy,fast delivery and excellentservice,ZBL Technology has taken a solid first step and is aiming to become the leading role ofLED industry in China.We are now in the period of fast development,and willing to establish firmand sustainable partnership with the customers in domestic and abroad.


ZBL Lighting Team

EXHIBITION

Since its establishment to participate in a number of exhibitions

we exhibition

Swift Packaging and Quick Delivery!

We understand the value of your time, so our dedicated team is committed to fast packaging and prompt delivery.

led strip light shipping method

led strip light shipping

application

Q1:How can I wire up LED Strips Light?

For this type of LED tape you will require just a transformer to get this working. You connect the 2 core starter lead coming out of one end. This is then wired to the transformer, red wire goes to + and the black wire is wired to -. The 2 core cable can be extended as required for you to mount the transformer as far away as required.



Q2:Which wattage do I need?

Deciding on whcih wattage you require is all down to what kind of application you are fitting the LED Strips in. The 5W and 10W is ideal to be used as feature light. Lighting to highlight areas, as a secondary lighting. Ideal for coving, drop down ceilings signage etc. to give a smooth halo effect. The 10W would be peferred to the 5W for these applications if there is a high amound of ambient lighting.



Q3:When do I need to use the IP67 Heat-shrink?

IP67 Heat-shrink type is required in areas where you will need resistance to water. For example bathrooms, kitchens and exterior. The heatshrink version is waterproof but it cannot be submersed, for example in a pond. The IP67 Heat-shrink is a protective coating over the LED tape, this makes it easy to wipe to clean etc.



Q4:How do I creat custom lengths? Can I cut the tape?

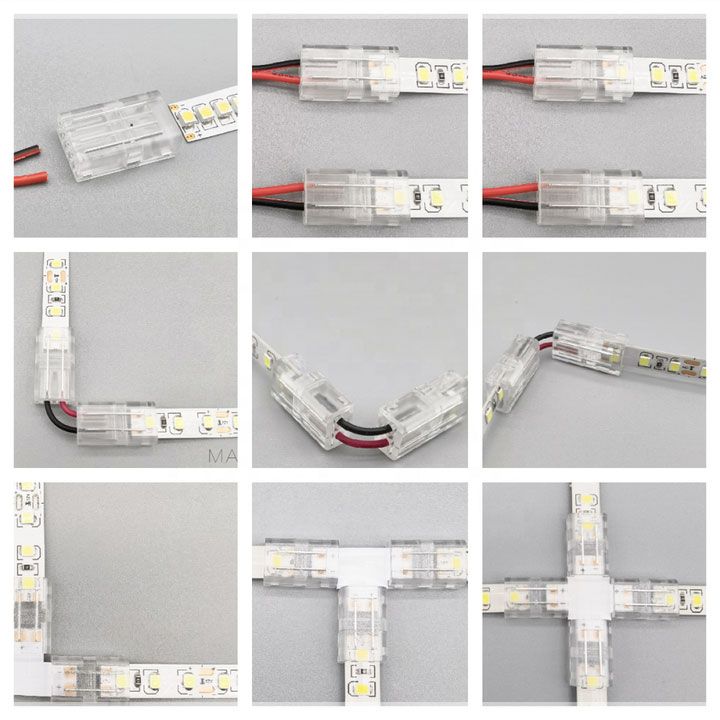

All the LED strips are cuttable. Each can be cut at various points, either 50mm,100mm,150mm or 200mm depending on whitch wattage version you have. We can either cut the lengths to your specific lengths as required or you can do this yourself. Once cut to length to join this to a transformer or another piece you will need to be capable of soldering, or if not we also supply 2 types of clips. One type is a starter lead clip, which is s clip that joins onto the off cut and has a cable coming out of it. The other clip is a ‘tape to tape clip’, this clip joins 2 pieces together.



Q5:Will my project need any othe accessories?

If you've ordered custom lengths of LED strip from us, along with all the starter wire and corner flex wire you'll need for your project, then you've likely got everything you need!
