High Quality OEM/ODM LED Strip Manufacturer
High Quality OEM/ODM LED Strip Manufacturer
IP20-IP68,18W/M,CRI97+
| Power | 18W/m |
| CRI | 97 |
| Service life | 50000h |
| Board width | 10mm |
| Color temperature | 2700K/3000K/4000K/5000K/6000K |
| Whether dimming | Yes |
| Luminous angle | 180° |
| Maximum run length | Maximum run length up to 16 ft (5 meters) |
| Working voltage | DC12V/DC24V |
| Protection grade | IP20,IP65,IP67,IP68 |
| Warranty time | 5 year |
| Tape | 3M 9495L |
| Operating temperature | -4°F to 113°F (-20°C to 45°C) |
| Certification | UL,CE,RoHS |
| Model No. | LED Type | LED Qty (pcs/m) | CCT | Work Voltage | Power | Lumen （Lm/m） | CRI |
| SMD2835-160-6000K-V24 | 2835 | 160 | 6000K±300K | 24V DC | 18W/M | 2880～2980Lm/m | 97+ |
| SMD2835-160-5000K-V24 | 2835 | 160 | 5000K±200K | 24V DC | 18W/M | 2880～2980Lm/m | 97+ |
| SMD2835-160-4000K-V24 | 2835 | 160 | 4000K±200K | 24V DC | 18W/M | 2880～2980Lm/m | 97+ |
| SMD2835-160-3500K-V24 | 2835 | 160 | 3500K±100K | 24V DC | 18W/M | 2880～2980Lm/m | 97+ |
| SMD2835-160-3000K-V24 | 2835 | 160 | 3000K±100K | 24V DC | 18W/M | 2880～2980Lm/m | 97+ |
| SMD2835-160-2700K-V24 | 2835 | 160 | 2700K±100K | 24V DC | 18W/M | 2880～2980Lm/m | 97+ |

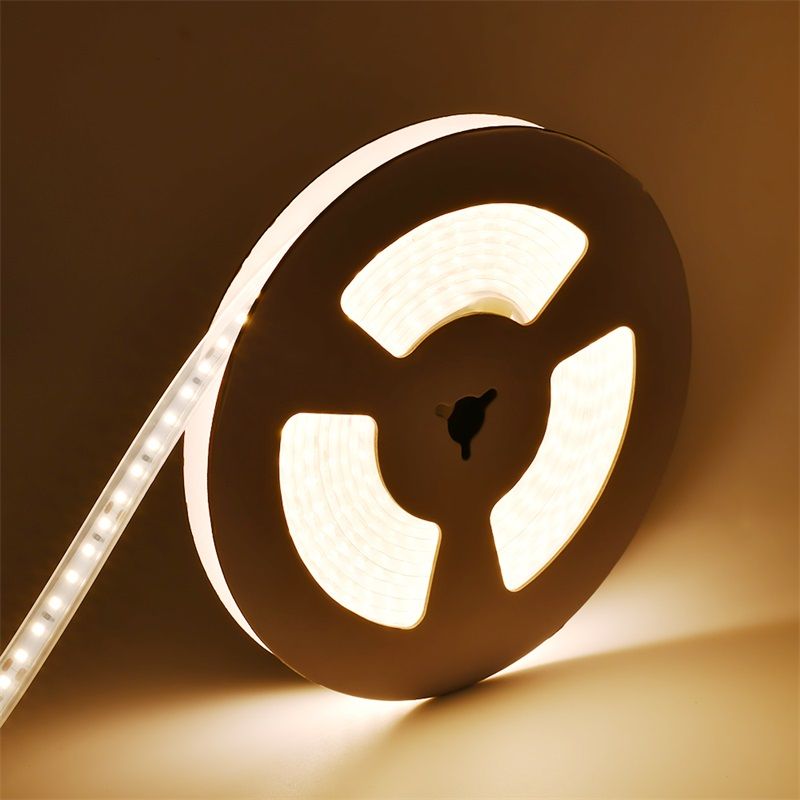

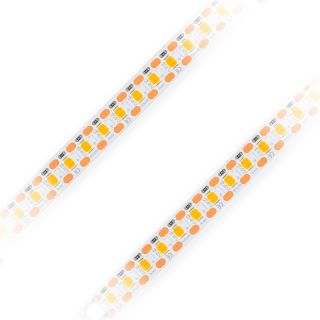

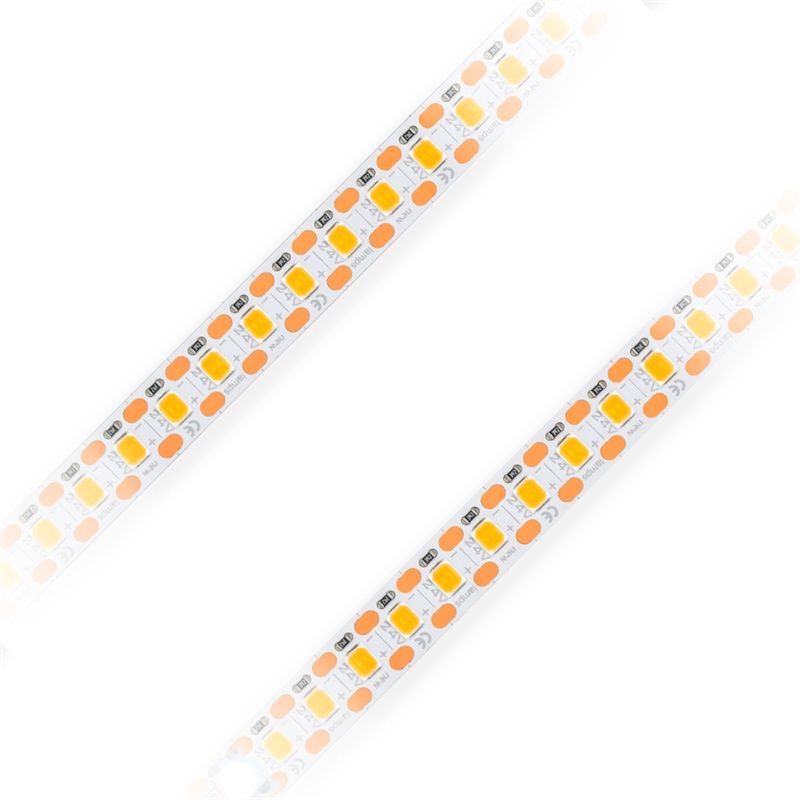

ZBL SMD2835 160LEDs/m strip light, produced by ZBL SMD automation equipment, high capacity and good quality LED strip light.

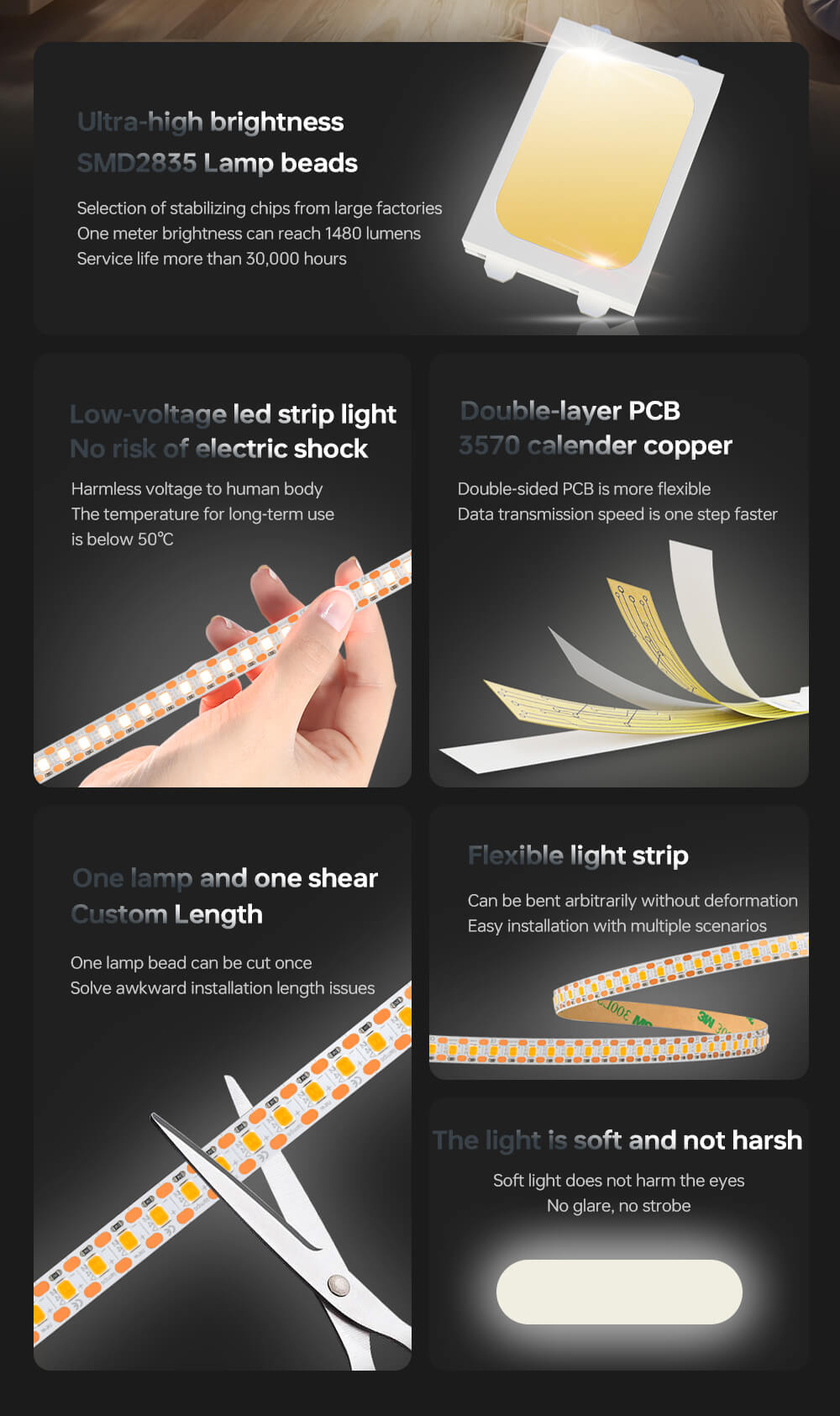

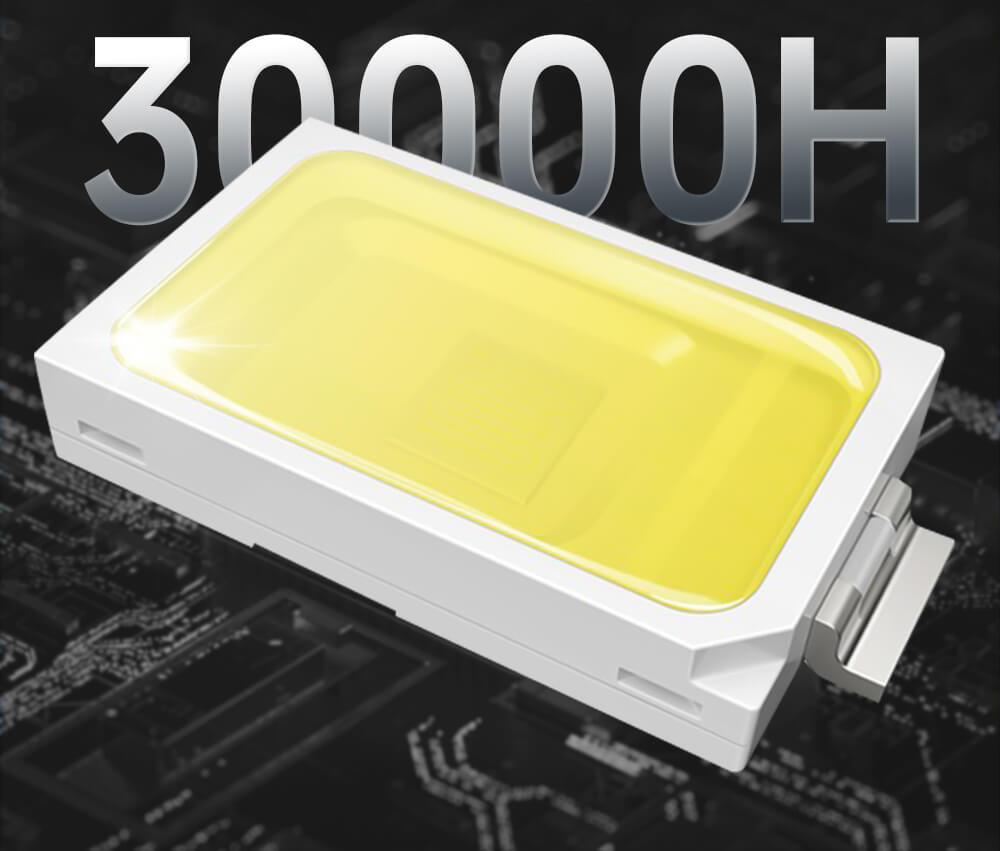

The led chip are made of the internationally famous bigmanufacturer Samsung/San 'an/Philips/Osram with stableperformance. The light is exquisite and grain-free. Thetemperature for long-term use is below 50 C, and theservice life is more than 30000 hours.
Every ZBL product, from design to material selection, toproduction and quality inspection, has always been higherthan the industry standard, and has passed a number ofinternational safety certifications through layers of safetytesting before finally reaching your hands.

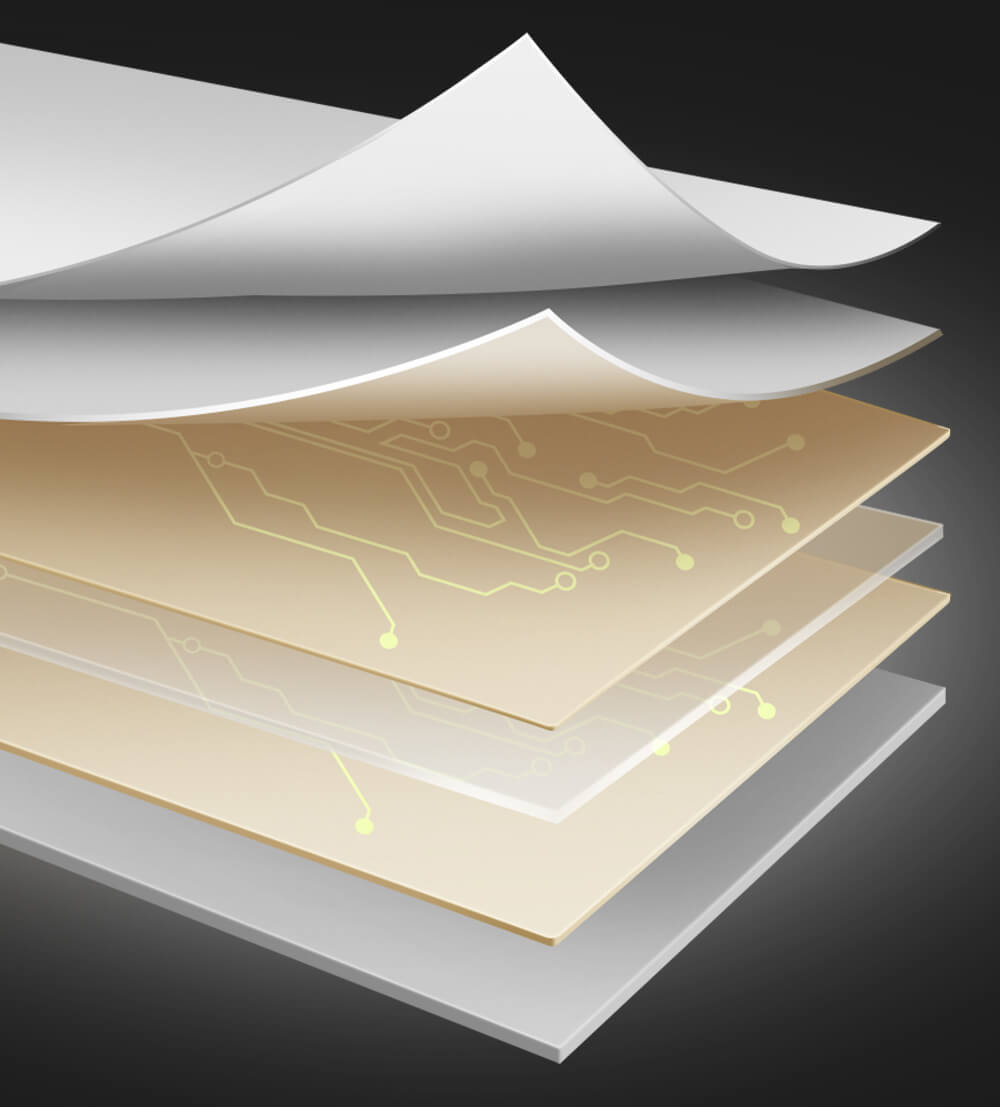

Adopt PI film+CU35um+CU70um calendering copper over-current layer AD insulation tensile layer+two-layer PI insulationtensile layer design, conductive layer. It is connected bypunching process, with stable current transmission andbending resistance.
It adopts 24V safe voltage that can be contacted by humanbody, and has no risk of electric shock in daily use. It can beinstalled at the head of sofa and other places where humanbody often contacts.
The led light strip of ZBL is strobe free, andthere is no vision or mobile phone to capturethe stroboscope, which comfortably andnaturally improves the home experience.

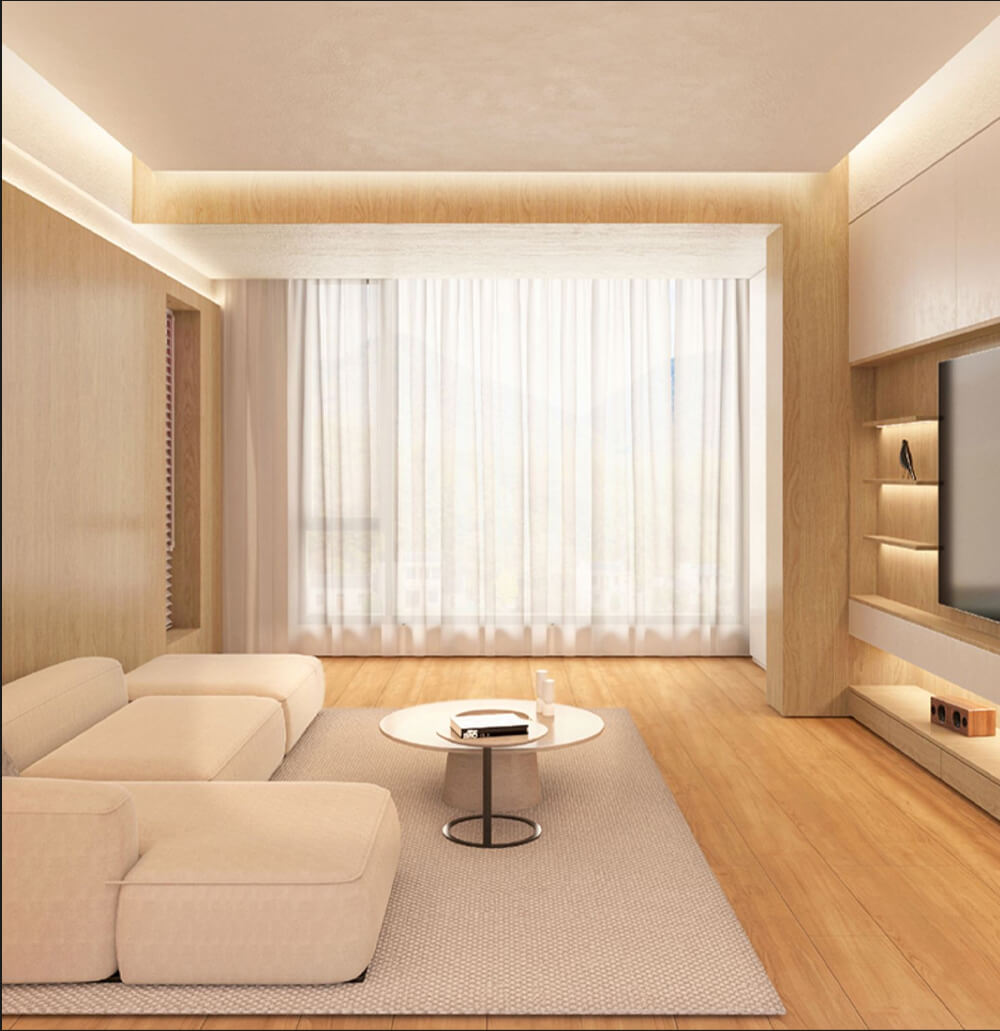

lt is very close to the degree of restorationof outdoor natural light, and installingthe led strip light indoors is like introducingthe outdoor light into the room.

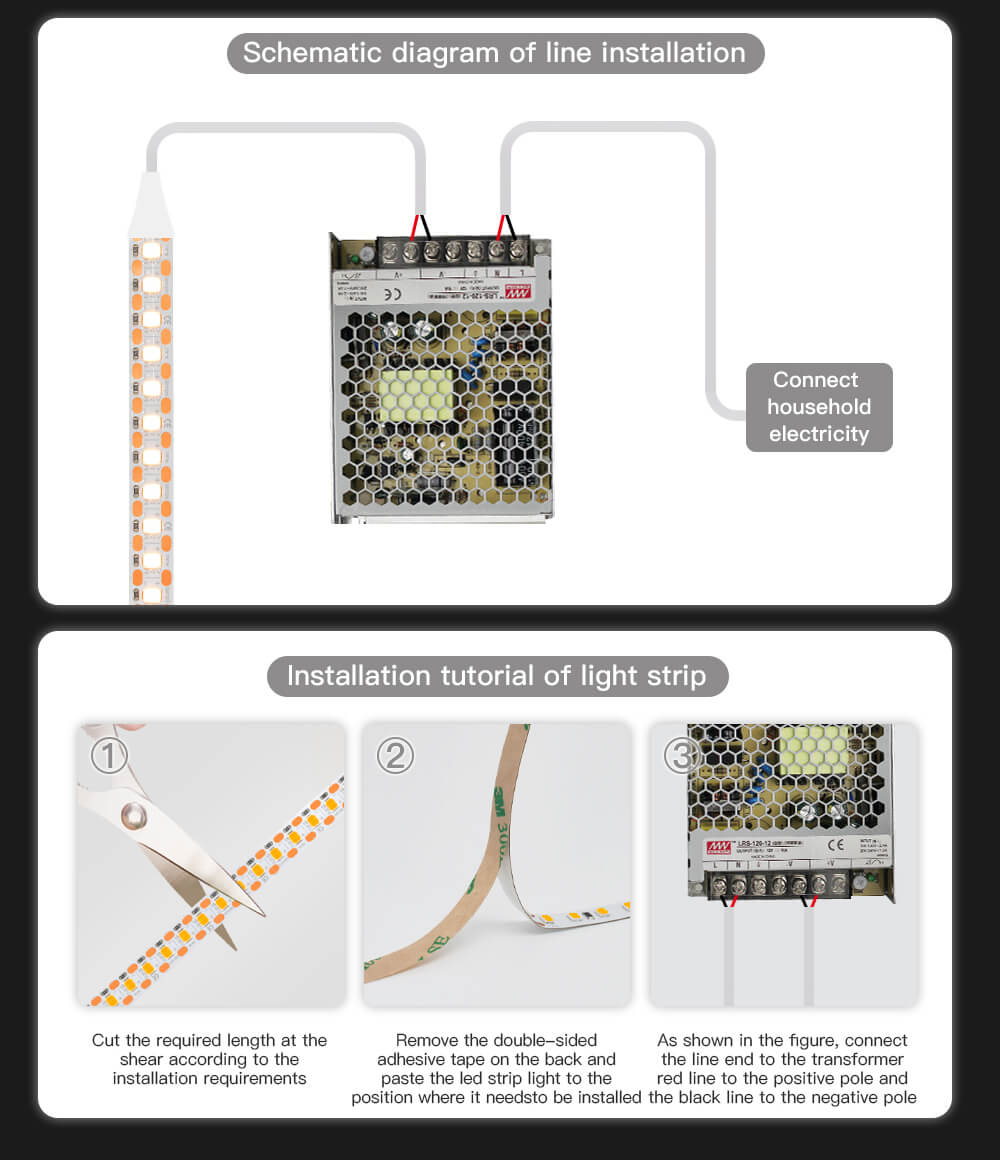

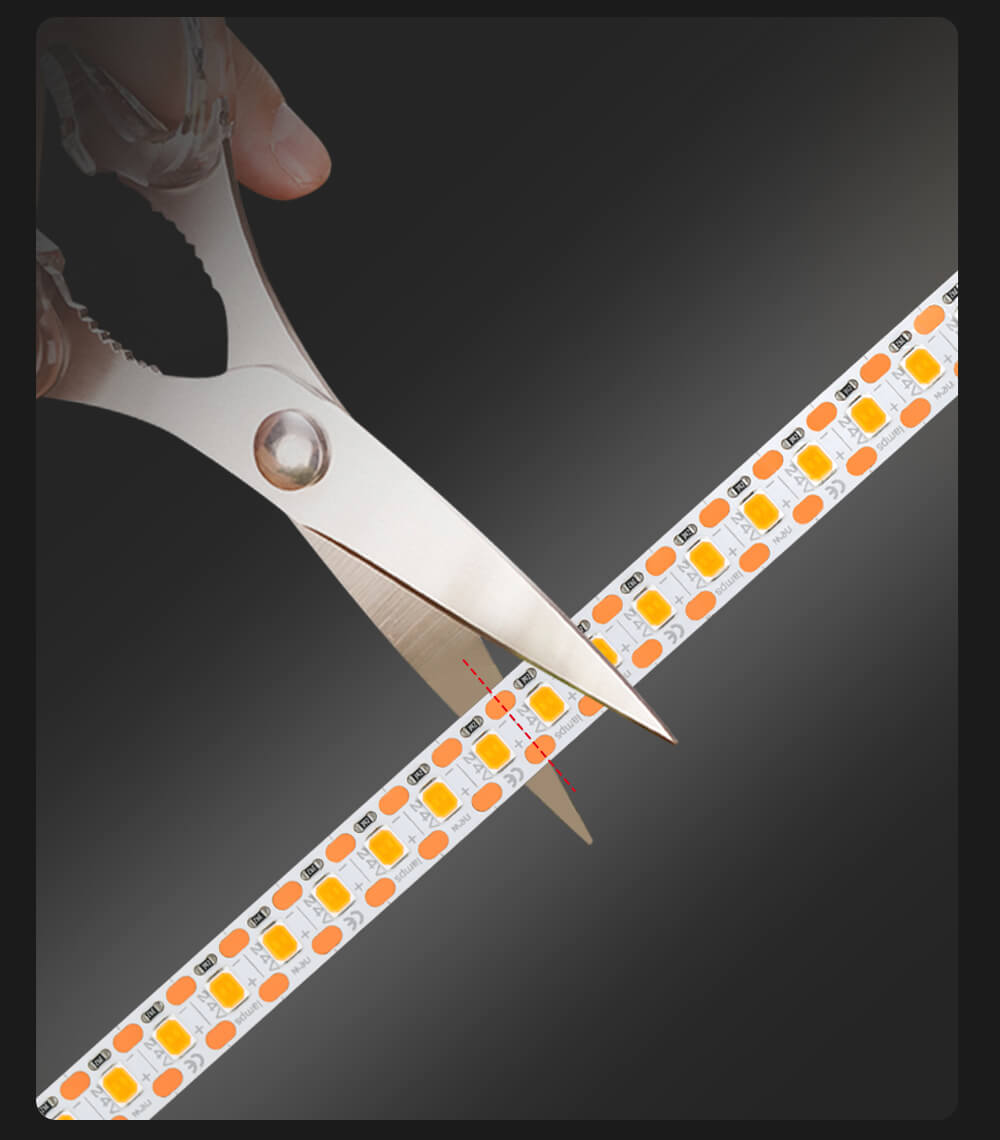

One lamp and one shear, and the appropriatelength can be cut according to theinstallation requirements to avoid unnecessarywaste and the embarrassment of long length.(Cut at the red dotted line as shown in the figure below)

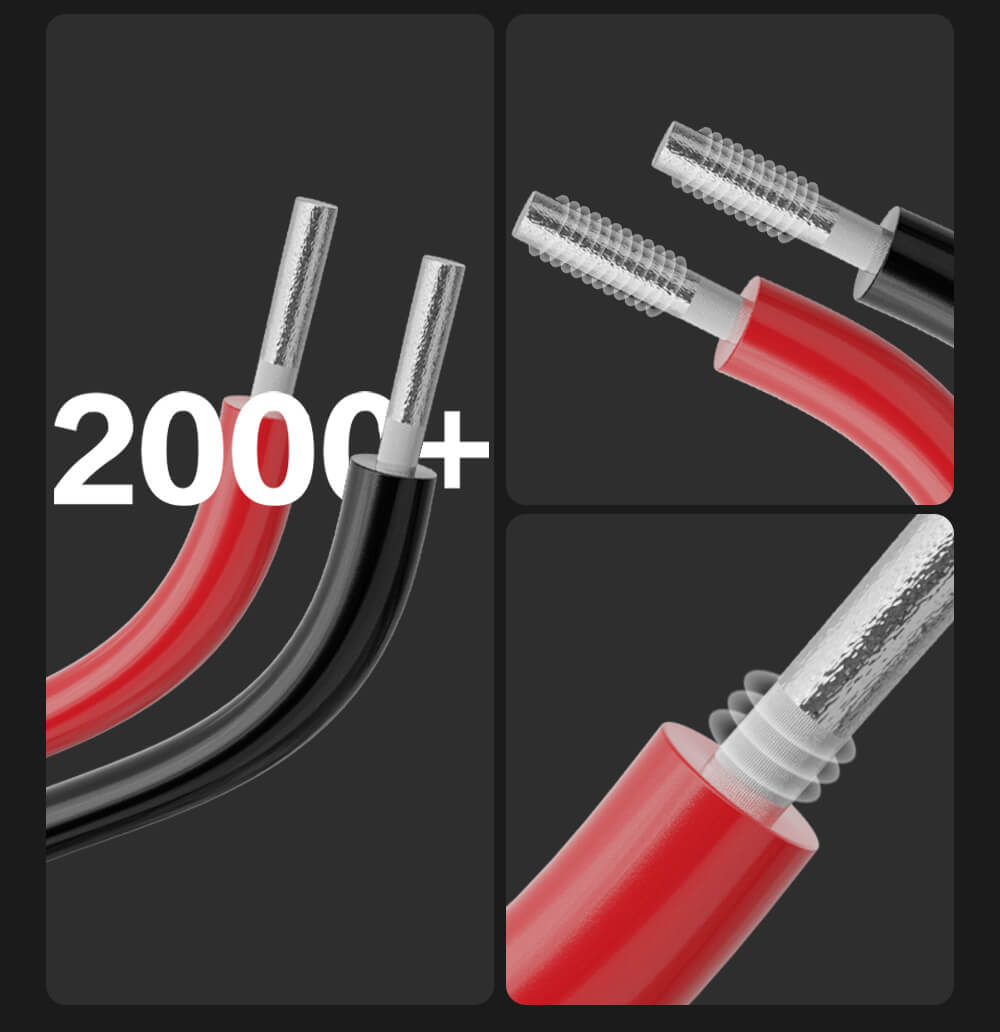

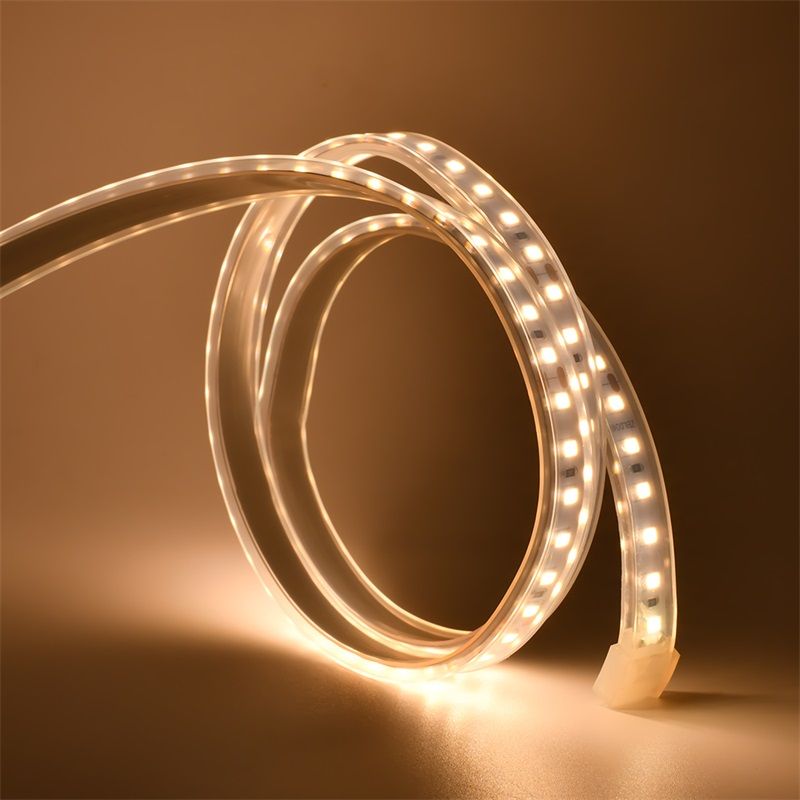

Copper is used as conductive material, which ismore stable and lower in temperature The outsideis made of PVC environmental protection material.which can be bent for more than 2000 times
Easy to use and install
| LED Type | SMD2835 SMD5050 SMD3528 SMD3014 SMD2216 SMD2110 SMD3838 SMD3535 SMD4040 |
| LED Quality | 12leds 18leds 30leds 48leds 60leds 90leds 120leds126leds150leds … |
| Voltage | 3V 5V 9V 12V 24V 36V 48V 72V 110V … |
| CCT | 1800K 2400K 2700K 3000K 4000K 5000K 6000K 10000K 15000K … |
| Power(w/m) | 4.8W/M 6W/M 7.6W/M 10W/M 14W/M 18W/M20W/M 24W/M 36W/M … |
| Lumen/M | 500lm/M 600lm/M 700lm/M 800lm/M 900lm/M 1000lm/M1200lm/M1500lm/M 2000lm/M … |
| PCB | 3MM 4MM 5MM 8MM 10MM 12MM 15MM 20MM 22MM … |
| Waterproof(IP Rating) | IP20 IP54 Silicone spray, IP65 Silicone Dropping, IP67 Silicone Tube, IP68 Silicone gel pouring … |
| Adhesive Tape | 3M 3M 9080A 30OMP 9495 VHB … |
| PCB Print | UL CE ROHS LOGO … |
ZBL Technology Industrial Limited is a Hi-tech enterprise specialized in LED light R&D,producing,selling,post-sell service.We have an experienced technology and marketing team.Technology iskey to energy saving.ZBL Technology is persisted in researching and developing new technologyfor the LED products.Currently,we have a series of independent and know-hows on LED lights.Allour products are produced according to ISO9001 standard. Our main product are LED Strip,SmartStrip Light,COB Strip Light,LED Atmosphere Light,LED Neon Light Strip,Window Light,ChristmasLights,Garden Light etc.And we provide professional OEM/ODM service to customers.Based onadvanced technology,superior product quality,flexible marketing strategy,fast delivery and excellentservice,ZBL Technology has taken a solid first step and is aiming to become the leading role ofLED industry in China.We are now in the period of fast development,and willing to establish firmand sustainable partnership with the customers in domestic and abroad.
The term "SMD 2835" refers to a type of LED chip. "SMD" stands for "Surface-Mounted Device," meaning the LED is mounted directly onto the surface of a circuit board. "2835" indicates the chip's dimensions, which are 2.8mm by 3.5mm. This type is popular for its brightness and efficiency in LED lighting applications.
The typical lifespan of an SMD 2835 LED is around 30,000 to 50,000 hours, depending on factors like operating conditions, heat management, and quality of the LED. High-quality SMD 2835 LEDs with proper cooling can reach the upper end of this range, while poor conditions can reduce longevity.
In LED lights, SMD stands for Surface-Mounted Device. This means the LED chip is mounted directly onto the surface of a circuit board rather than using traditional wire leads. SMD LEDs are compact, energy-efficient, and offer high brightness, making them popular in a wide range of applications, from strip lights to screens and general lighting.
Our sales will reply to you within 2 hours.
5-year warranty, 24-hour online service
Strong R&D team to make your products more competitive
Fully automatic LED intelligent production equipment with a monthly capacity of 20 million meters to ensure on-time delivery
More than 20 authoritative institutions certified, professional production of light strips for 15 years.
Adopting high quality accessories and rigorous testing in multiple processes.
