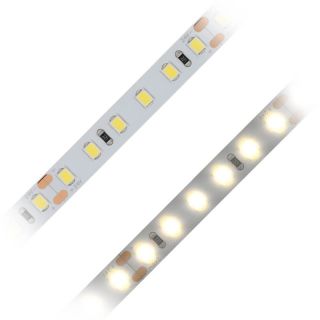

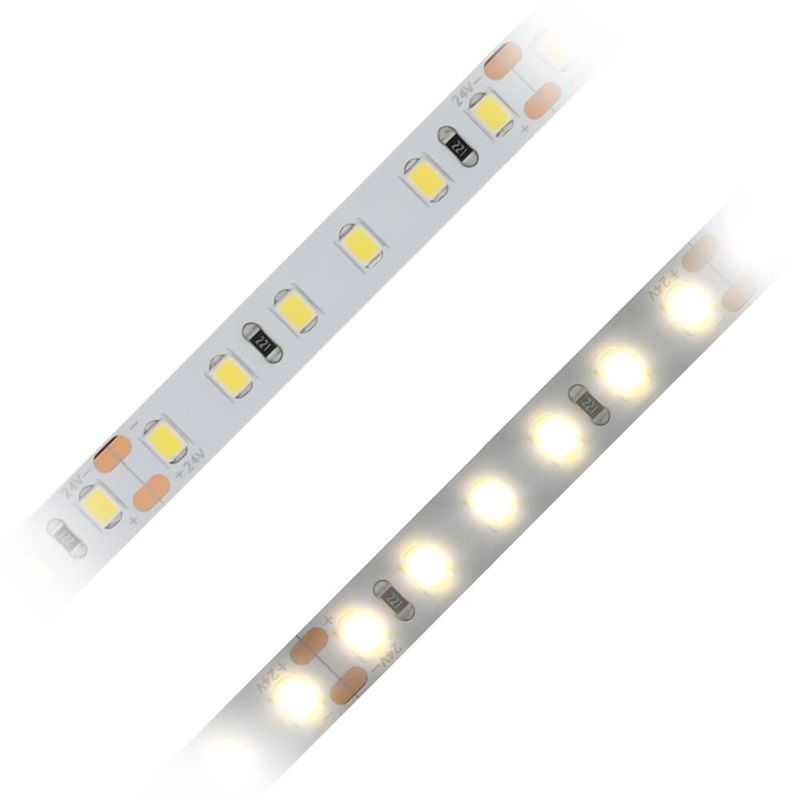

SMD2835 LED strip high brightness custom models

Highly customizable SMD2835 strip light series

LED Type

2835 Customizable

Working Time (hours):


Data Transfer



DC5V, DC12V, DC24V

Working Temperature(℃)


Working current




Board bottom color


Luminous angle


PCB thickness


Grayscale level

256 Grayscale adjustable

RGB Sequence


IP Rating

IP20, IP65, IP67, IP68

PCB width

3mm, 5mm, 8mm, 10mm, 12mm

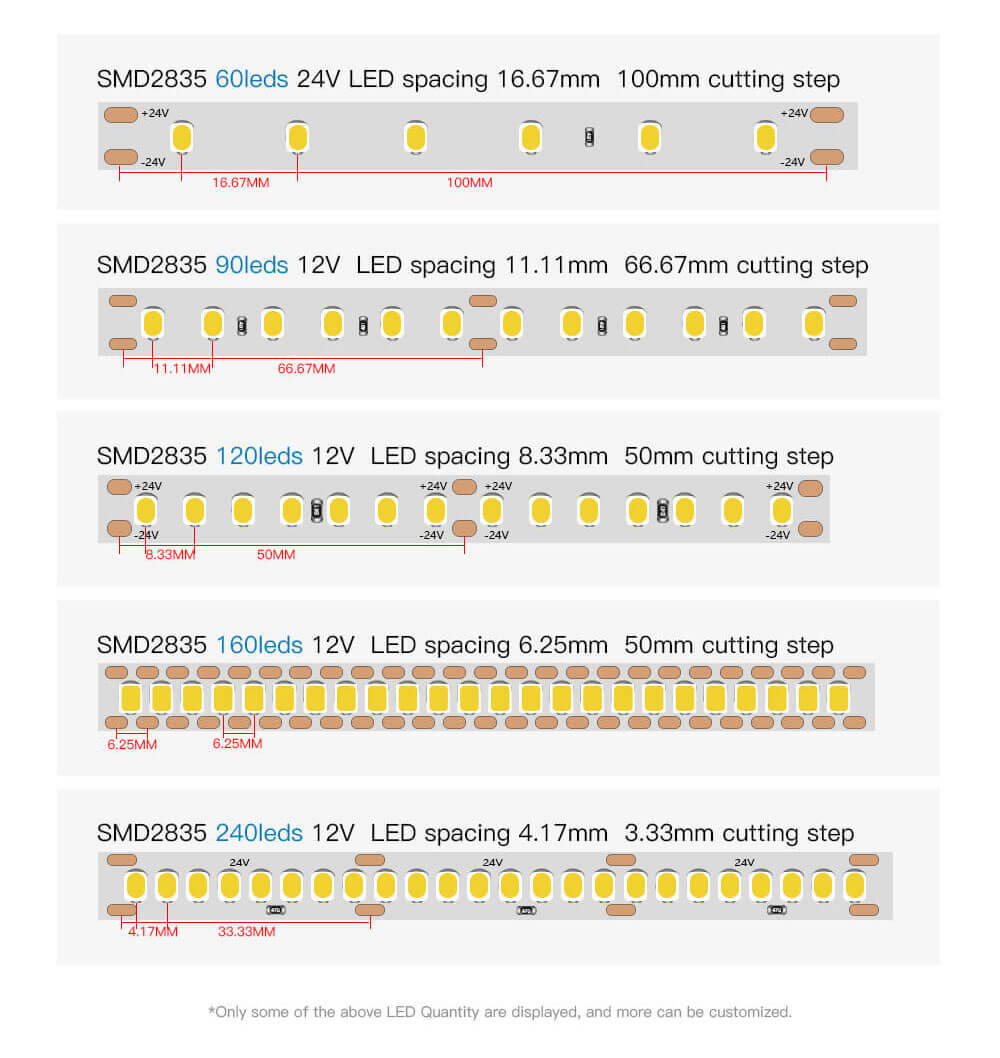

LED Quantity

30LED/M, 60LED/M, 90LED/M, 120LED/M, 160LED/M, 240LED/M

  • Description
  • Examples
  • FAQ
  • Why Choose Us

ZBL is a professional China LED strip manufacturer, focusing on all kinds of LED strip production and manufacturing since 2011, all series of ZBL's strip support customization service. We will recommend the most suitable LED strip for you according to your usage scenario! Eliminate energy waste, start from a strip!

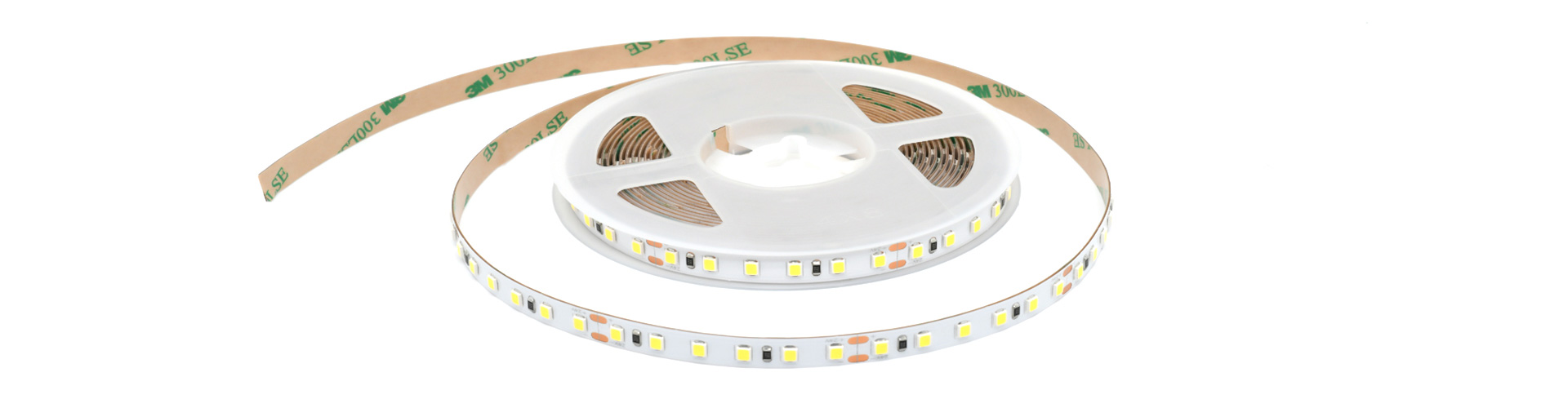

This 2835 series light strip, the lamp bead specification is 28mm*35mm size lamp bead, is a very common light strip in engineering, hotels, indoor and outdoor lighting scenes installation, his specifications are very complete, can choose the color temperature is very much.RA90, a meter can be placed 30-240 beads, can be customized PCB width, non-conventional color temperature, etc., can do waterproof treatment, etc., suitable for indoor and outdoor Linear lighting illumination.

Use our ZBL SMD series with the most mature SMD production process and the highest product quality, so you can fully enjoy the light.



The color Kelvins of 2000K-6000K can be customized
according to customers' requirements.Light color can also be customized.
Welcome to consult the business for more information.

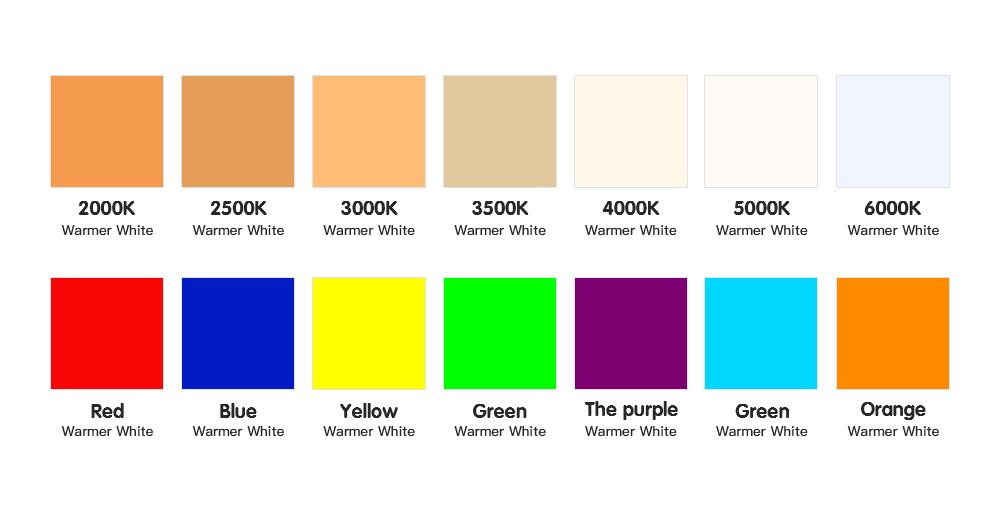

LED color and color temperature comparison


Welcome to consult customer service customization
Custom LED Strip
Not only offer standard products bu with customzed package,specification, length…
Custom Aluminum Profle
Factory finished aluminum profile and cove options are cuttable in specified length accordingto custom requirements
Custom Assemble Solutlons
Supply LEDStrip & aluminum profle asssembling service and simplify the installation process forUsers,Personalized length and color temerature is avaiable.
LED Type SMD2835 SMD5050 SMD3528 SMD3014 SMD2216 SMD2110 SMD3838 SMD3535 SMD4040
LED Quality 12leds 18leds 30leds 48leds 60leds 90leds 120leds126leds150leds …
Voltage 3V 5V 9V 12V 24V 36V 48V 72V 110V …
CCT 1800K 2400K 2700K 3000K 4000K 5000K 6000K 10000K 15000K …
Power(w/m) 4.8W/M 6W/M 7.6W/M 10W/M 14W/M 18W/M20W/M 24W/M 36W/M …
Lumen/M 500lm/M 600lm/M 700lm/M 800lm/M 900lm/M 1000lm/M1200lm/M1500lm/M 2000lm/M …
PCB 3MM 4MM 5MM 8MM 10MM 12MM 15MM 20MM 22MM …
Waterproof(IP Rating) IP20 IP54 Silicone spray, IP65 Silicone Dropping, IP67 Silicone Tube, IP68 Silicone gel pouring …
Adhesive Tape 3M 3M 9080A 30OMP 9495 VHB …


The display index of > 90 is adopted to make the light emitted more like natural light and restore the original light color


No visual stroboscopic, no cell phone stroboscopic, Comfortable and natural, healthy lighting


Every ZBL product,from design to material selection to production qualityinspection, is always higher than the industry standard, has gone throughlayers of safety testing, and has passed many international safety certifications before finally reaching your hands.

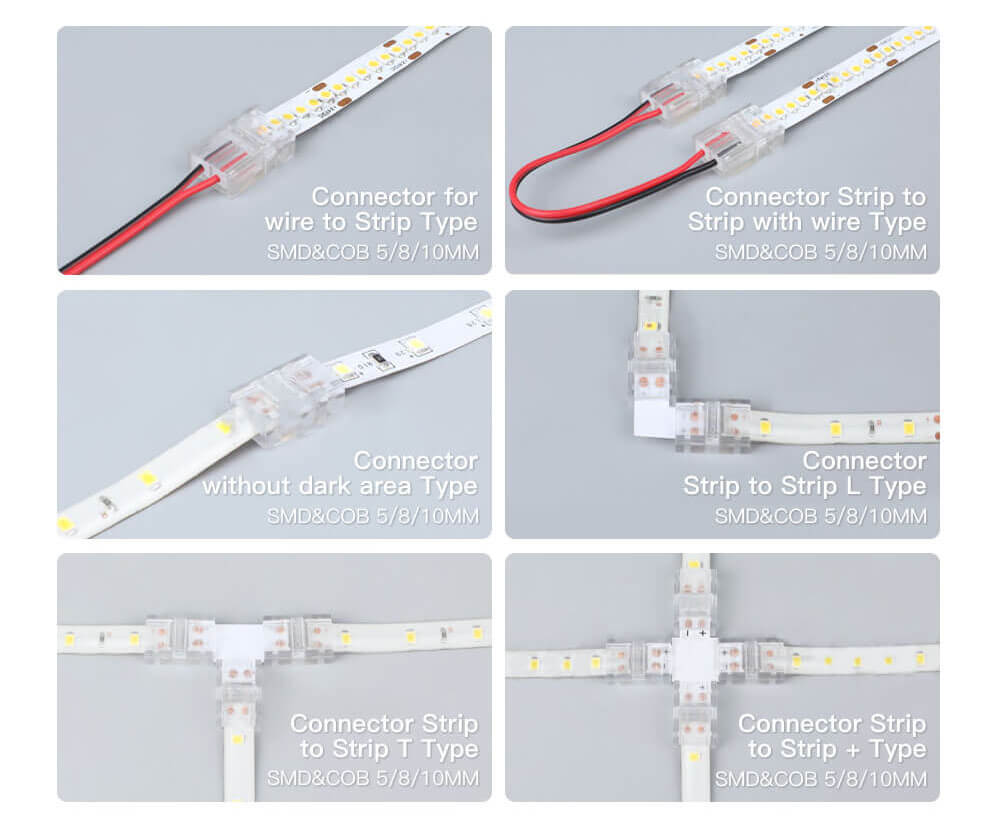

A variety of led light strip Connector can meet all conversion installation needs.

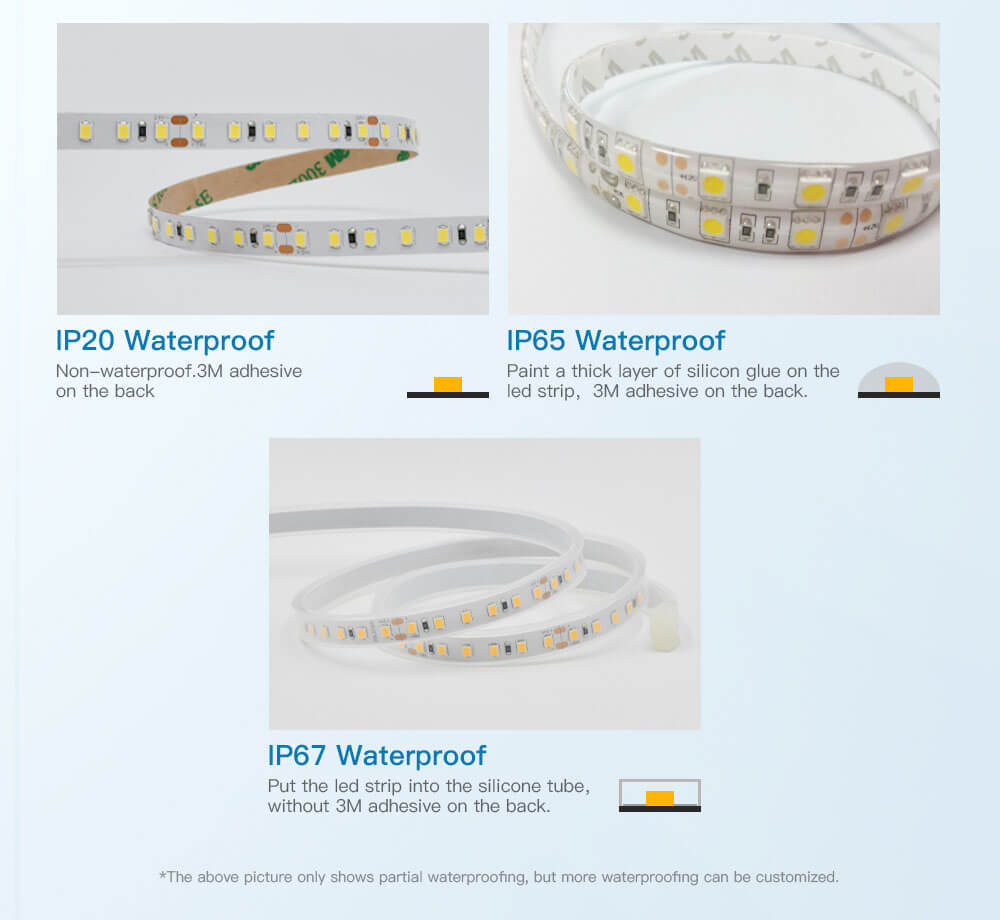

According to customers'requirements,the required waterproof rating can be made.

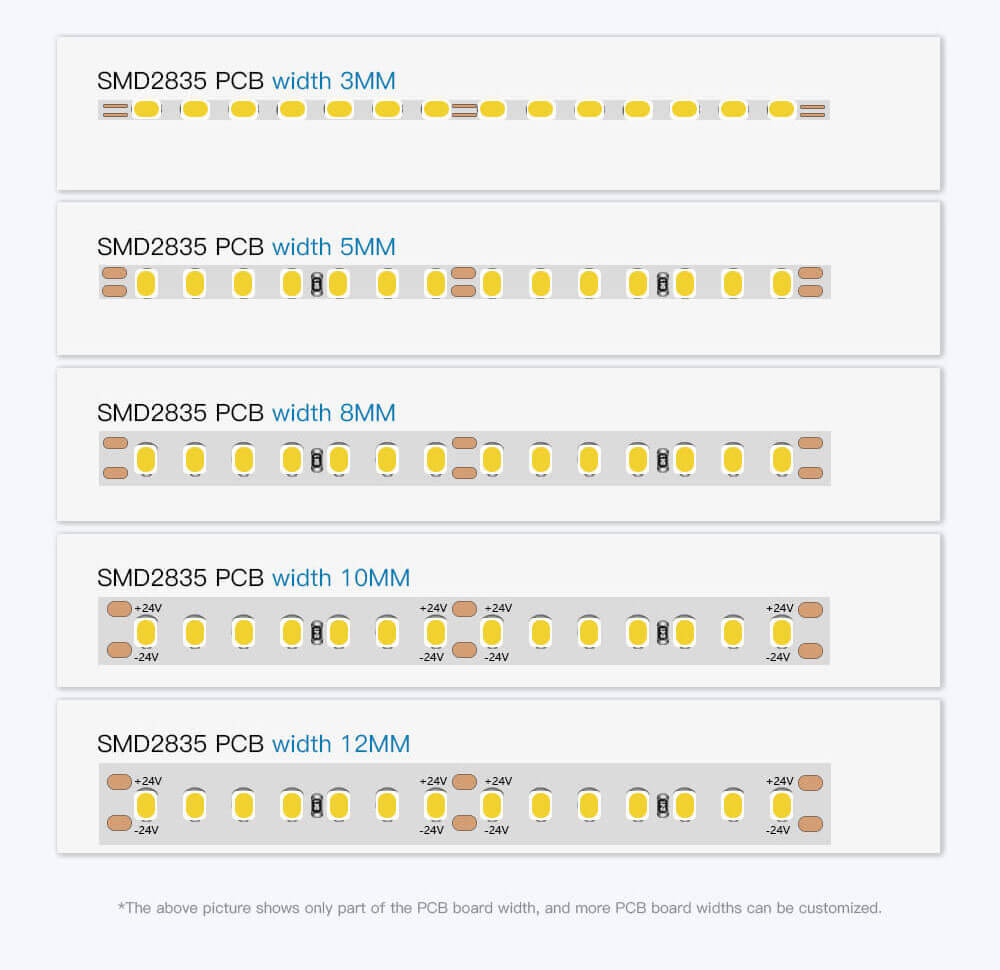

The PCB board width can be customized according to customers, andthe logo can also be customized. Welcome to contact the business for details.


The number of led required by customers can be customized according to their needs. Please contact the business for details.


ZBL LED strips light are made of 3M double-sided adhesive tape, which is very sticky, can not only isolate moisture and play a sealing role,but also have the characteristics of solubility resistance, high temperatureand low temperature resistance, etc.Customers can also customize waterproof double-sided adhesive tape with waterproof characteristics.


Self-production and self-marketing, the source of the factory

ZBL Technology Industrial Limited is a Hi-tech enterprise specialized in LED light R&D,producing,selling,post-sell service.We have an experienced technology and marketing team.Technology iskey to energy saving.ZBL Technology is persisted in researching and developing new technologyfor the LED products.Currently,we have a series of independent and know-hows on LED lights.Allour products are produced according to ISO9001 standard. Our main product are LED Strip,SmartStrip Light,COB Strip Light,LED Atmosphere Light,LED Neon Light Strip,Window Light,ChristmasLights,Garden Light etc.And we provide professional OEM/ODM service to customers.Based onadvanced technology,superior product quality,flexible marketing strategy,fast delivery and excellentservice,ZBL Technology has taken a solid first step and is aiming to become the leading role ofLED industry in China.We are now in the period of fast development,and willing to establish firmand sustainable partnership with the customers in domestic and abroad.


Since its establishment to participate in a number of exhibitions

Common installation application scenarios

Under the cabinet
Under the bed
Above cabinets
Bathrooms and bedrooms
Main lighting in hotel rooms
Bars, restaurants, etc.

1 (1)

Q: What do you mean by dimming to warm light?

Dim to Warm is a technology that reduces the color temperature of LEDs when dimming, allowing for smooth changes in warm white light (from 3000K to 1800K). Works to mimic the familiarity of dim incandescent lighting, and the feeling of natural light, while providing efficient illumination.


Q: How does dimming to warm light work?

Dimming to warm light has an internal control circuit that first dims the 3000K LED chip and then begins to control the current to the 1800K chip. As it gets darker, the color temperature gets warmer. Dark to Warm follows the dimming curve to simulate the dimming of incandescent lamps. This technology allows standard dimmers to provide sophisticated control and smooth, natural dimming.


Q: What is the relevant color temperature?

The color of light can be quantified by reference to its color temperature. White light is measured in degrees Kelvin (K). Most white light falls in the spectrum between 1800K and 6200K. As it drops below 3000K, the light becomes significantly warmer. At the other end of the spectrum, the lights become cooler and emit a blue tint as they rise above 6500K.


Q: How long is the product warranty?

Due to our strong confidence in the quality of our products, we offer a 10-year warranty on the ZBL Dim to Warm series of LED lights. For more information, please read our warranty policy.

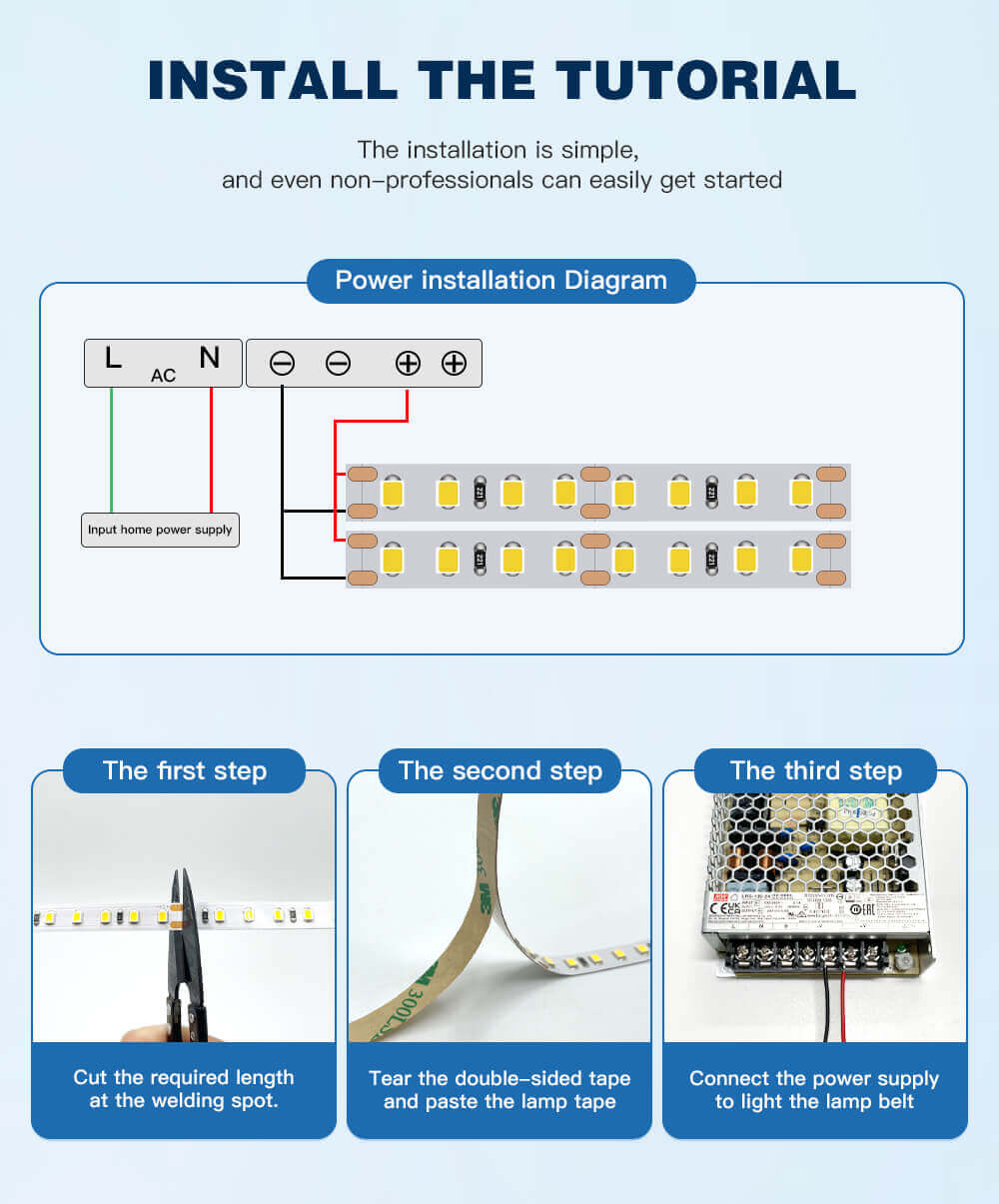

Q: What do I need to turn on the lights?

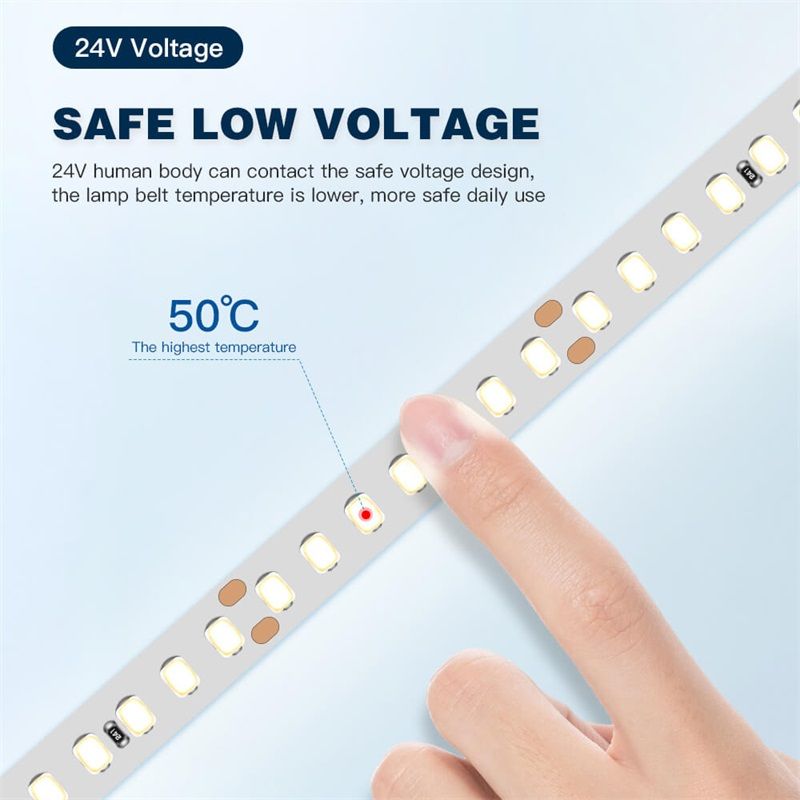

To turn on these LED strips, you will need to connect them to a 24V low voltage power supply. The type of power supply may vary, as you can use a dimmable power supply and pair it with an AC wall dimmer, or use a non-dimmable power supply with a single color compatible controller. If desired, we recommend using our solderless clamp-on connectors to connect the strips after they have been cut to length. If you are familiar with soldering, you can continue to do so for more permanent connections, but test your expertise on a small section of strip before committing to soldering the entire project.


Q: Which power source do I need for my (x) feet of LEDs?

The length of the LED strip in your project will determine the size of the power supply you need. Check out our power supply chart to find the exact LED power supply you need.


Q: What are CRI and TLCI and why should I care?

The Color Rendering Index (CRI) measures how colors appear properly under a light source compared to natural sunlight. The index is measured on a scale of 0-100, with 100 being a perfect rating for color accuracy, which means that colors appear naturally in pure daylight. High CRI lighting is found everywhere, but is especially valuable. The bottom line: the higher the CRI, the higher the quality of the light source.

95 - 100 → extraordinary color rendering. Colors look the way they should, subtle tones pop and accentuate, skin tones look beautiful, art comes alive, background plastic and paint show it is truly beautifully saturated. You have to see it to believe it!

90 - 95 → Outstanding color acting! Almost all colors "pop" and are easily distinguishable. Obviously excellent lighting starts at a CRI of 90.

80 - 90 → Good color rendering, most colors are well rendered. You may not see the fully saturated items you want, but most people won't notice.

60 - 75 → Poor color rendering. Items and colors may look unsaturated, monotonous, and sometimes unrecognizable (can't see the difference between black and navy socks).


Q: What is lumens (lumens)?

This is the quantifiable amount of light produced by an LED strip or other product that produces light as seen by the human eye. In other words, it is a way for us to measure how much light is produced. When comparing LED strips, you need to compare lumen output as well as CRI, watts per foot, warranty and box options.

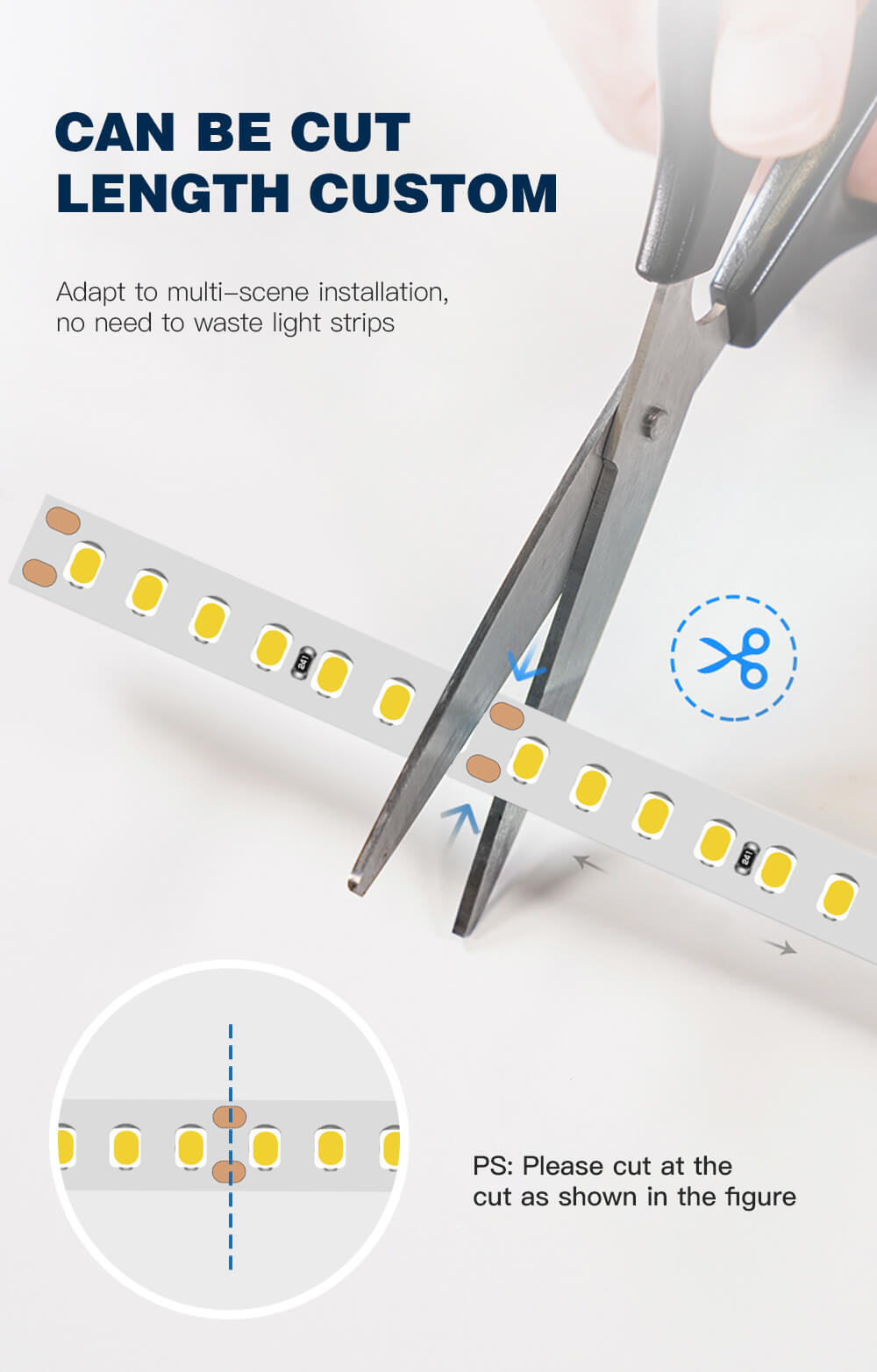

Q: Can I cut my own strips?

Yes, our LED strips can be cut to the length you want. Using sharp scissors, you can cut every 3 3/8". You will see the cut marks printed on the strip.


Q: What is the importance of UL certification?

UL is an independent, non-profit organization focused on evaluating products for safety certification. This means you can use and install these LEDs in commercial spaces, industrial applications and homes knowing that these are safe products.
