High-Speed,DIY Cutting,Ten-level Brightness Adjustment

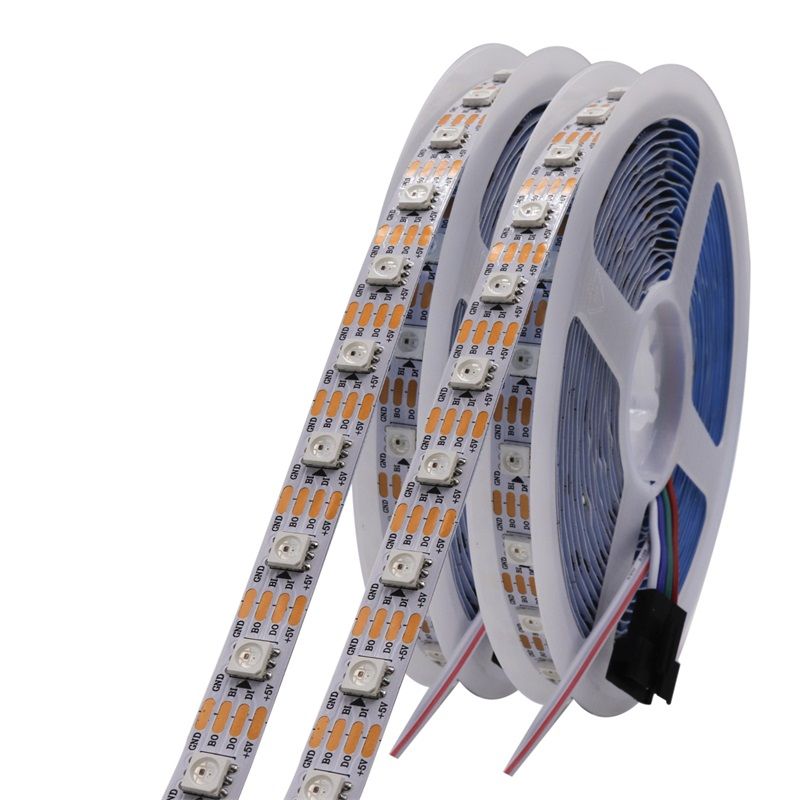

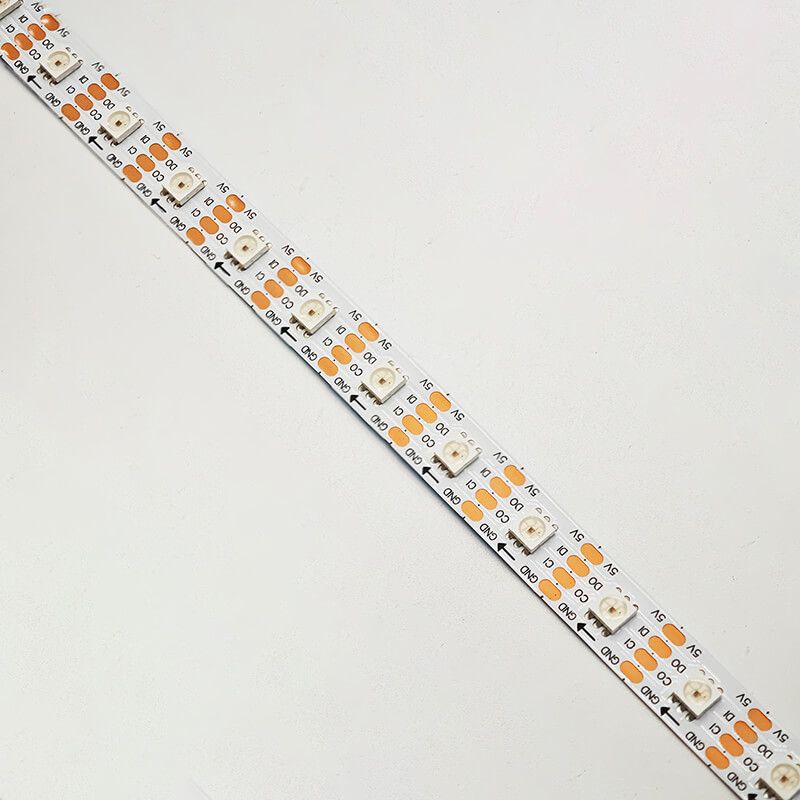

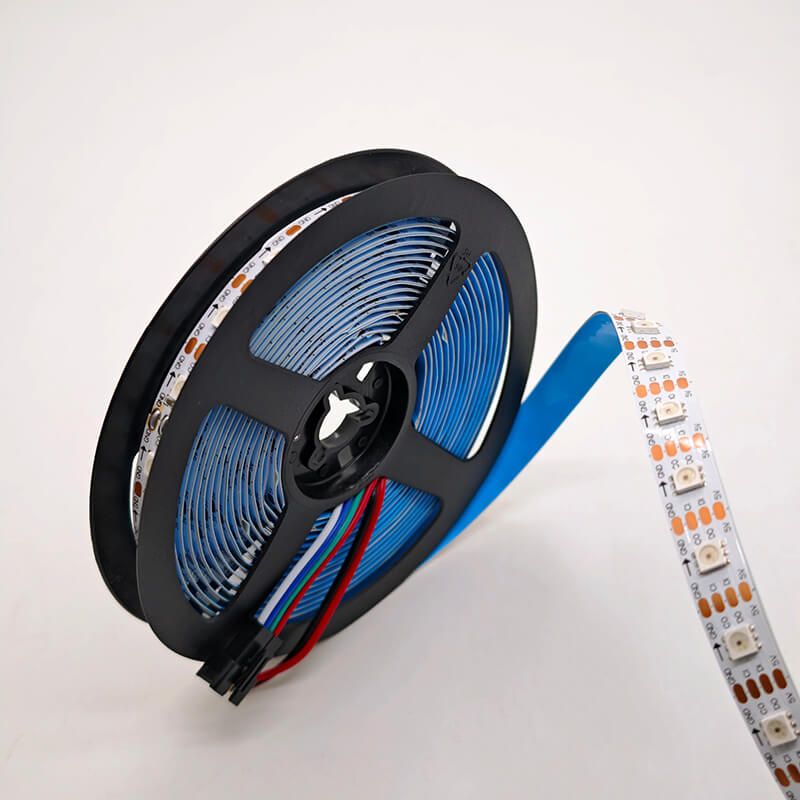

The APA102 RGB Addressable LED Strip was developed for applications requiring high-speed, precise pixel control and smooth animations. Its built-in SPI IC with separate clock and data lines ensures stable signal transmission, even for long runs, outperforming traditional WS2812/WS2813 strips in refresh rate and reliability. Each pixel is individually addressable with 256-level grayscale, enabling complex color patterns and vibrant effects. Ideal for stage lighting, architectural façades, and creative decorative projects, the strip combines fast response, high color fidelity, and modular design for professional-grade installations.
| Parameter | Specification |
|---|---|
| Product Model | APA102 RGB Addressable LED Strip |
| LED Driver IC | APA102 Integrated IC (built-in) |
| Working Voltage | DC5V / DC12V (depending on model) |
| LED Type | 5050 SMD RGB |
| Pixel Structure | 1 pixel = 1 RGB LED with built-in IC |

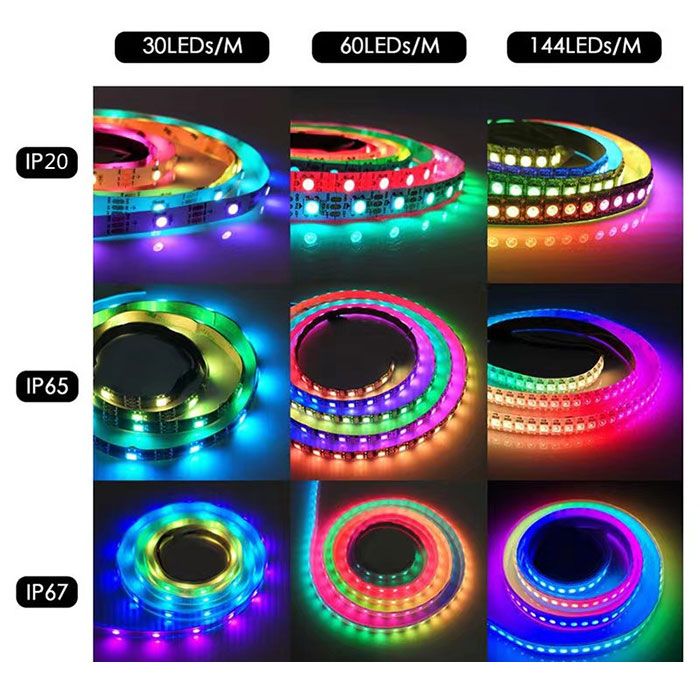

| LED Density Options | 30 / 60 / 144 LEDs/m (customizable) |
| Power Consumption | 30LED/m: 9W/m; 60LED/m: 18W/m; 144LED/m: 43.2W/m |
| Maximum Current | 30LED/m: 0.75A/m; 60LED/m: 1.5A/m; 144LED/m: 3.6A/m |
| Maximum Running Length | 5 meters per segment (requires power injection beyond 5m) |
| Cutting Length | 1 LED/pixel |
| Color | RGB full color, 256-level grayscale per channel |
| Data Transmission | High-speed SPI (Clock + Data) |
| Refresh Rate | Up to 20 kHz (high-speed animations) |
| Beam Angle | 120° |
| PCB Width | 10mm / 12mm / 17mm (depends on density) |
| PCB Copper Thickness | 2oz standard |

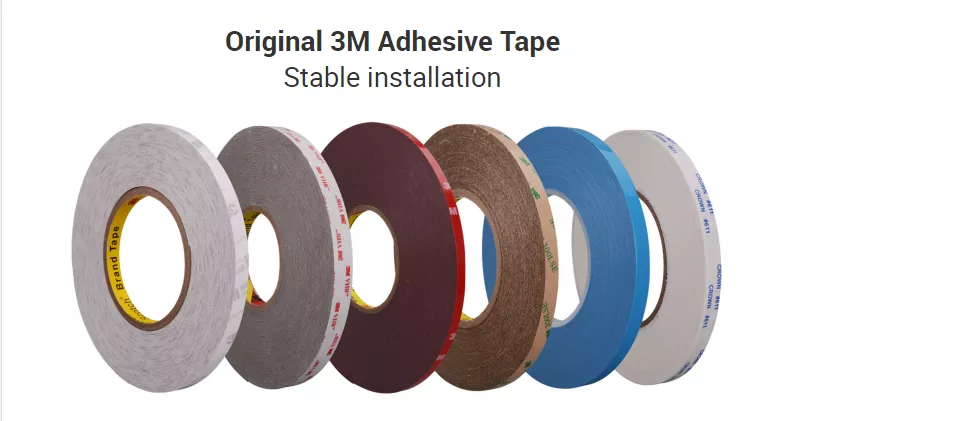

| Adhesive Backing | 3M double-sided tape |

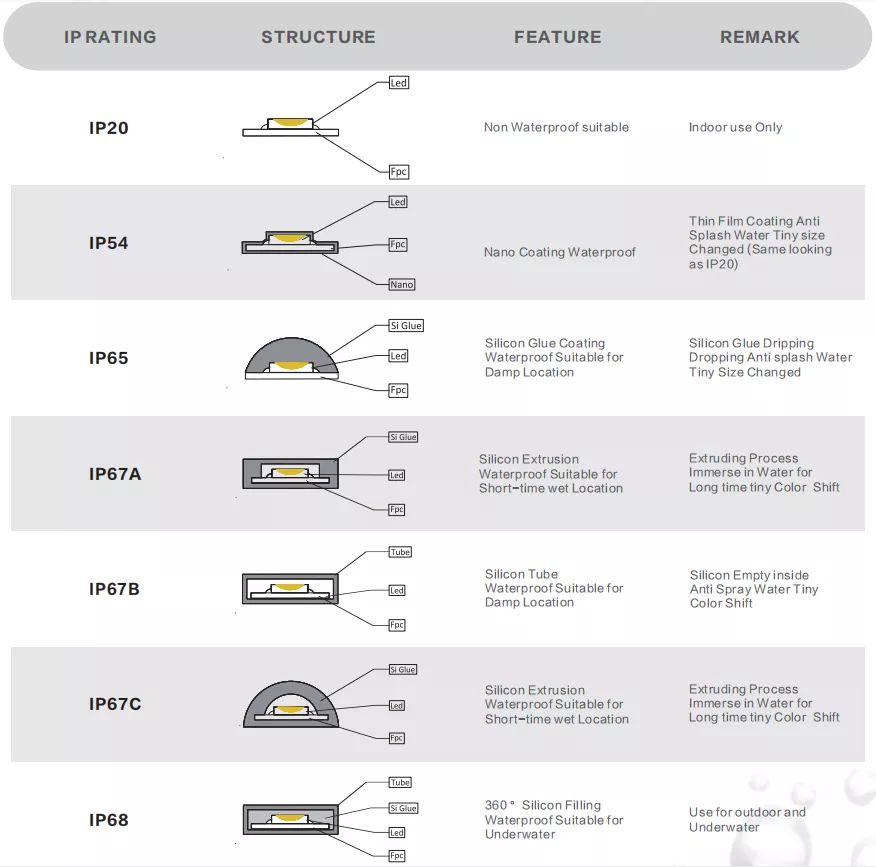

| Waterproof Rating | IP20 / IP65 / IP67 optional |
| Operating Temperature | −25°C to +80°C |
| Storage Temperature | −40°C to +85°C |
| Lifespan | >30,000 hours |
| Signal Direction | Clock + Data, ensures fast and stable pixel control |
| Control Compatibility | K1000C, T1000S, Artnet-SPI, DMX-to-SPI, Arduino, Raspberry Pi |
| Installation Method | 3M adhesive, aluminum channel, clips |
| Warranty | 3 years (extendable for commercial/engineering projects) |
