High Quality OEM/ODM LED Strip Manufacturer
High density COB LED Linear lighting, no light spot
Origin | ShenZhen, China |
Voltage | DC24V |
LED Qty./m | 640LEDs/m |
Brand | ZBL |
PCB Width | 10mm |
LM/m | 100~125LM/W |
IP Rate | IP20, IP65, IP67, IP68 |
PCB Color | White |
Cut Length | 25mm,50mm |
Beam Angle | 180° |
Packing | 5m/Roll |

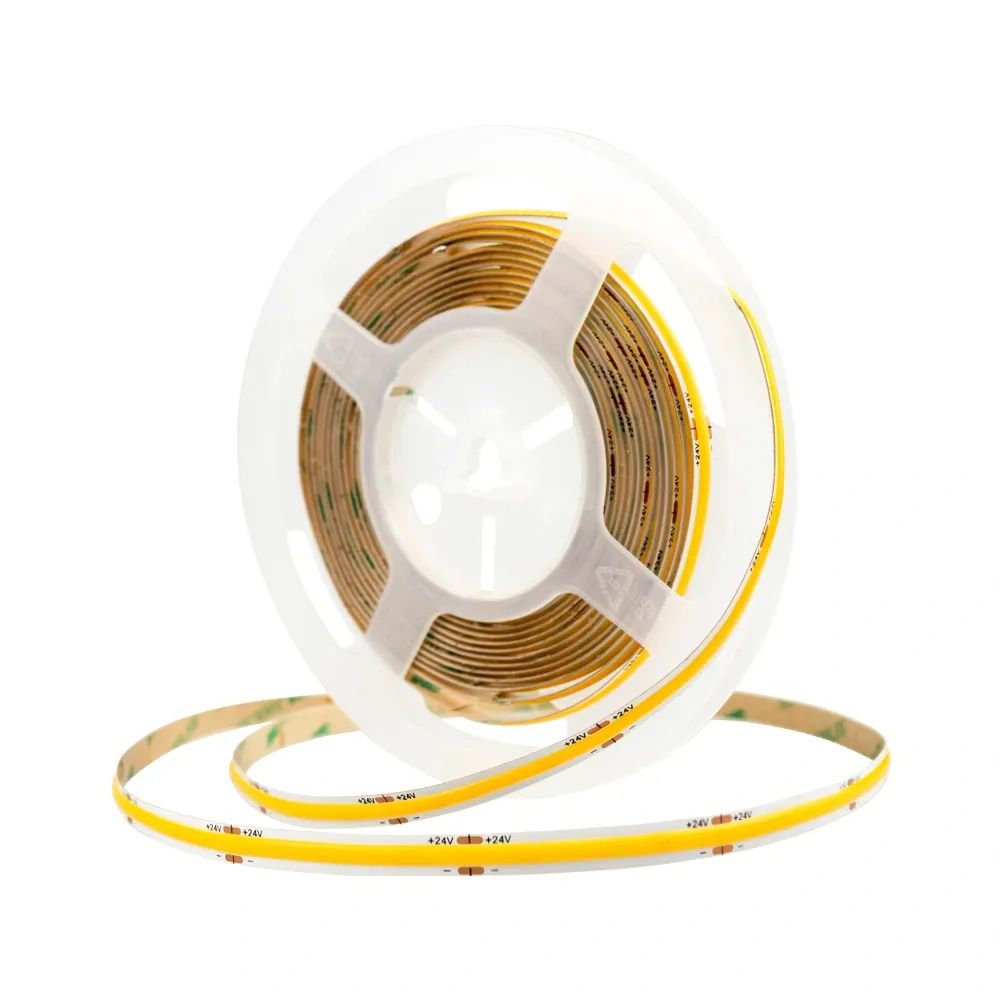

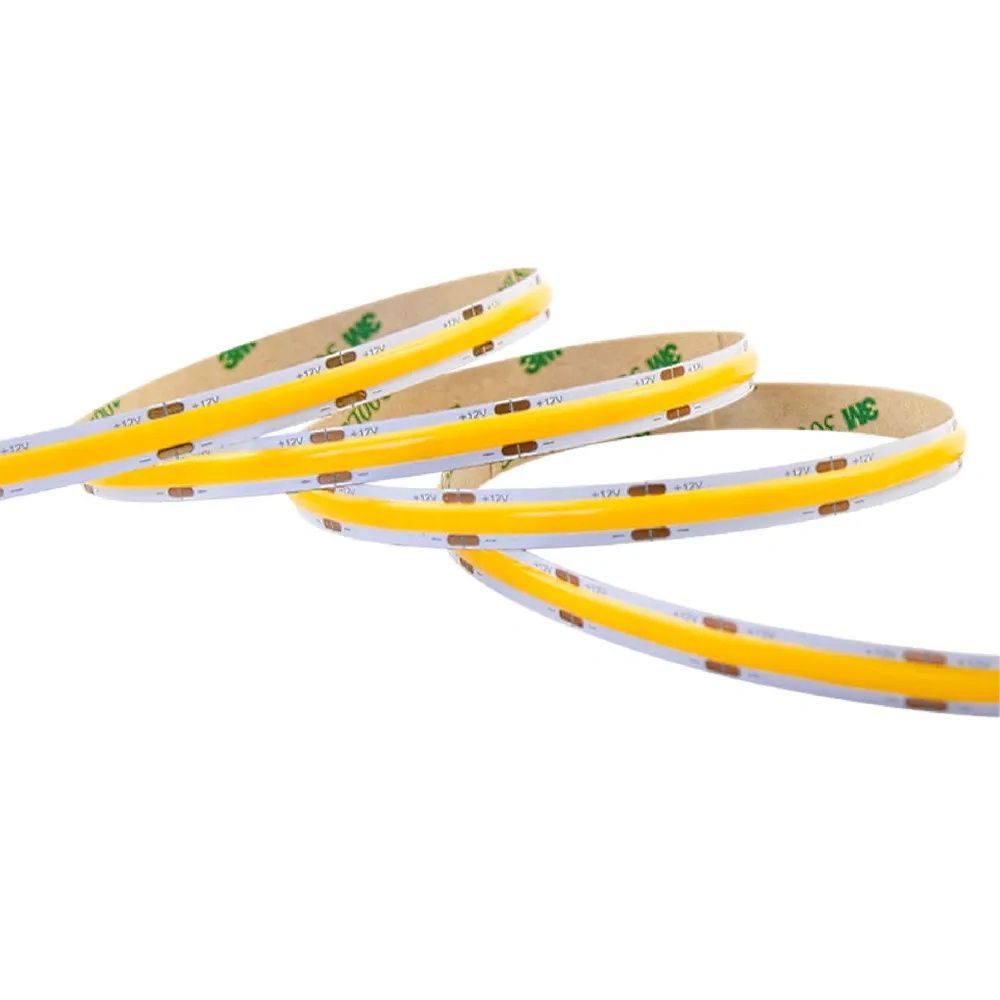

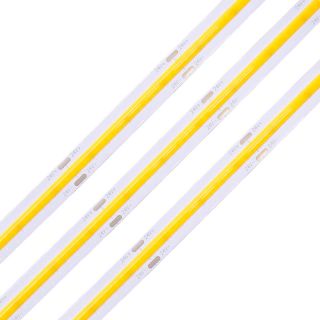

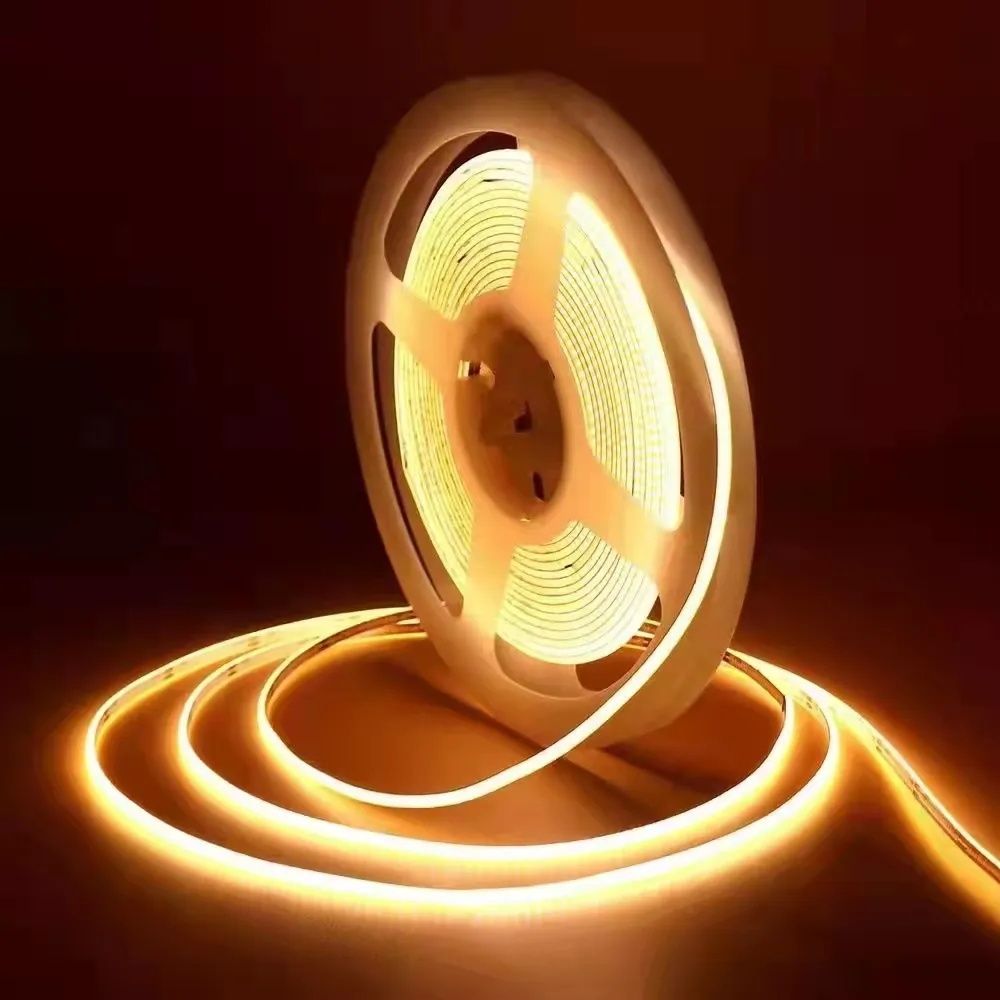

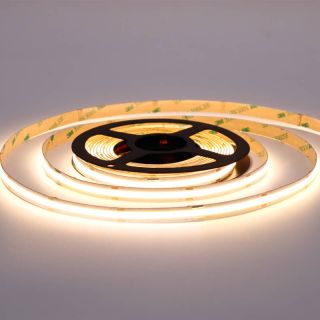

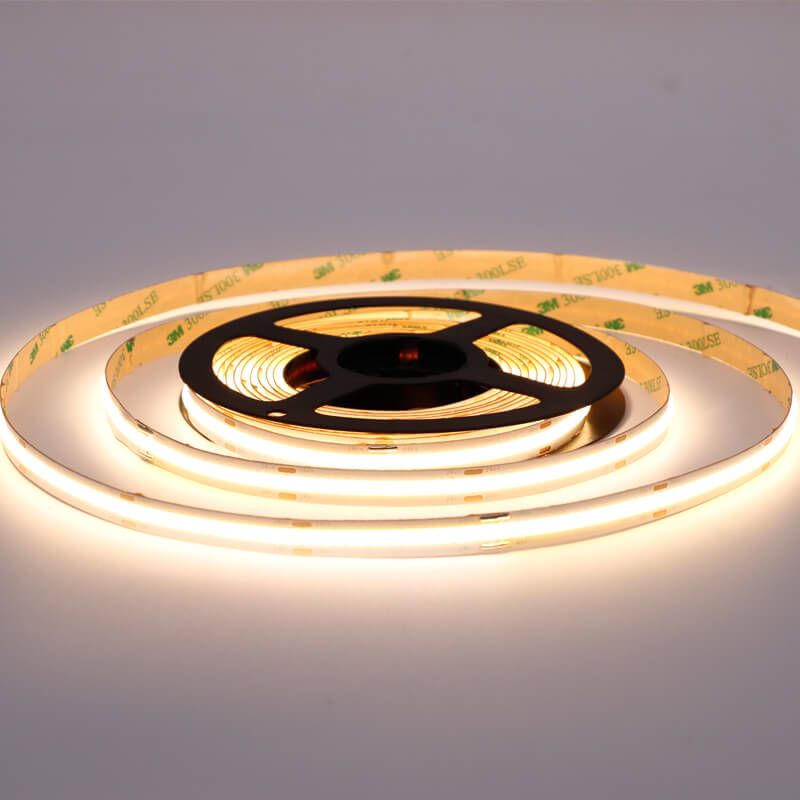

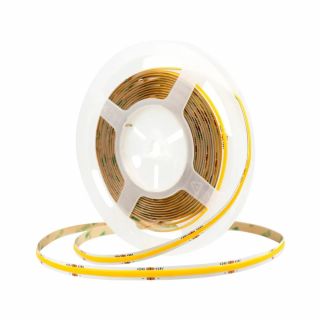

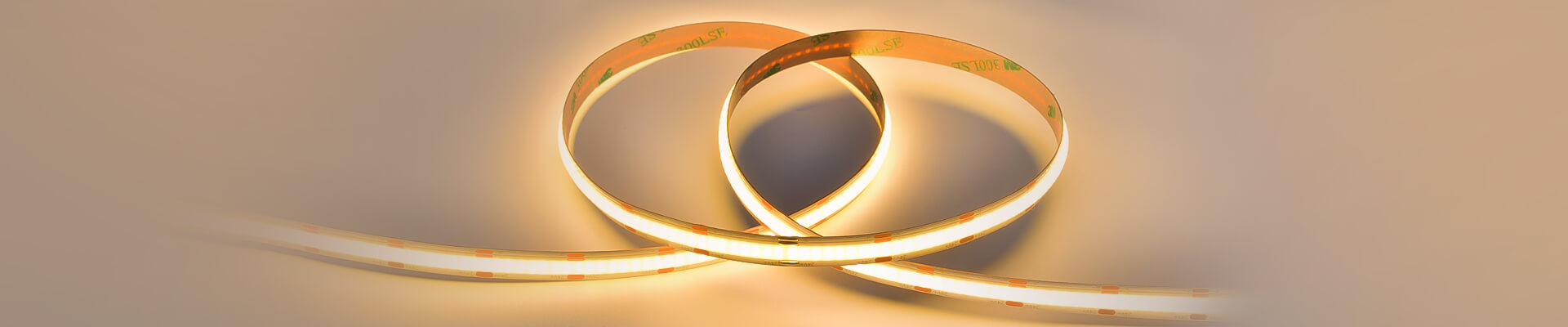

COB LED Strip Lights
Model: ZBL-640-14W-24V
Features:
◎ High density COB LEDs
◎ Linear lighting, without light spot, soft and uniform luminance
◎ High CRI, high brightness and high efficiency
◎ High temperature resistance, long lifespan
◎ No bracket, better bending performance, seamless butting between two solder point
◎ Luminous surface width of 4.5±0.3mm
Specifications:
LED Qty: 640
Voltage: 24V
Power: 14W/M、22-24W/M
SDCM: ≤5
CRI>80 (±3%)
CCT: 2700K/ 5000K/6000K/ 6500K
Luminous Efficacy: 1050lm/ 1100lm/ 1100lm
PCB Layer: double copper
Width: 10mm
Min. Cutting: 1)12V: 25mm; 2) 24V: 50mm
Remarks
1. X stands for color, 3000K is 30, 4000K is 40, 6500K is 65.
2. The tolerance of output data can be vary up to ±10%.
3. All the data are based on IP20, 1 meter
Declaration:
1. If the external flexible cable of light box is damaged, please replace it by its manufacturer or its service agent or
qualifiedperson to avoid a hazard.
2. The given data in this specification is based on our standard product. There may be existed slight difference
comparedwith actual products.
3. Working temperature: -20~40°C 10%~90% R.H., storage temperature: -10~30°C 0%~80% R.H.
4. All illustrations in this specification are for reference only.
5. This product is subject to change or modify without prior notice.
Remark:
The COB strip light can be cusomized as per your requsts, contact us for more details.
The shear length | 10MM 20MM 23.81MM 25MM 26.31MM 31.26MM 41.66MM45.45MM 5OMM … |
LED Quality | 240leds 320leds 384leds 480leds 528leds 600leds 608leds 756leds 768leds 784leds … |
Voltage | 5V 12V 24V 36V 110V 220V … |
CCT | 1800K 2400K 2700K 3000K 4000K 5000K 6000K 10000K 15000K RGB RGBW RGBIC RGBCW… |
Photoeffciency | >80Lm/W >100Lm/W … |
Power(w/m) | 7W/M 8W/M 1OW/M 11W/M 14W/M 18W/M … |
Lumen/M | 500lm/M 600lm/M 700lm/M 800lm/M 900lm/M 1000lm/M1200lm/M1500lm/M 2000lm/M … |
PCB | 3MM 4MM 5MM 8MM 10MM 12MM 15MM 20MM 22MM … |
Waterproof(IP Rating) | IP20 IP54 Silicone spray, IP65 Silicone Dropping, IP67 Silicone Tube, IP68 Silicone gel pouring … |
Adhesive Tape | 3M 3M 9080A 30OMP 9495 VHB … |
PCB Print | UL CE ROHS LOGO … |
ZBL Technology Industrial Limited is a Hi-tech enterprise specialized in LED light R&D,producing,selling,post-sell service.We have an experienced technology and marketing team.Technology iskey to energy saving.ZBL Technology is persisted in researching and developing new technologyfor the LED products.Currently,we have a series of independent and know-hows on LED lights.Allour products are produced according to ISO9001 standard. Our main product are LED Strip,SmartStrip Light,COB Strip Light,LED Atmosphere Light,LED Neon Light Strip,Window Light,ChristmasLights,Garden Light etc.And we provide professional OEM/ODM service to customers.Based onadvanced technology,superior product quality,flexible marketing strategy,fast delivery and excellentservice,ZBL Technology has taken a solid first step and is aiming to become the leading role ofLED industry in China.We are now in the period of fast development,and willing to establish firmand sustainable partnership with the customers in domestic and abroad.
1. What is COB Strip Light?
3.Why Choose ZBL COB LED Tape?
This tape is manufactured using the highest quality components available on the market for the price making it a professional and commercial grade product. ZBL LED COB Tapes carry a typical lifespan of 25000 Hours and come complete with a 3-year guarantee to ensure superior quality and continued high performance.
4.Can you cut COB LED strips?

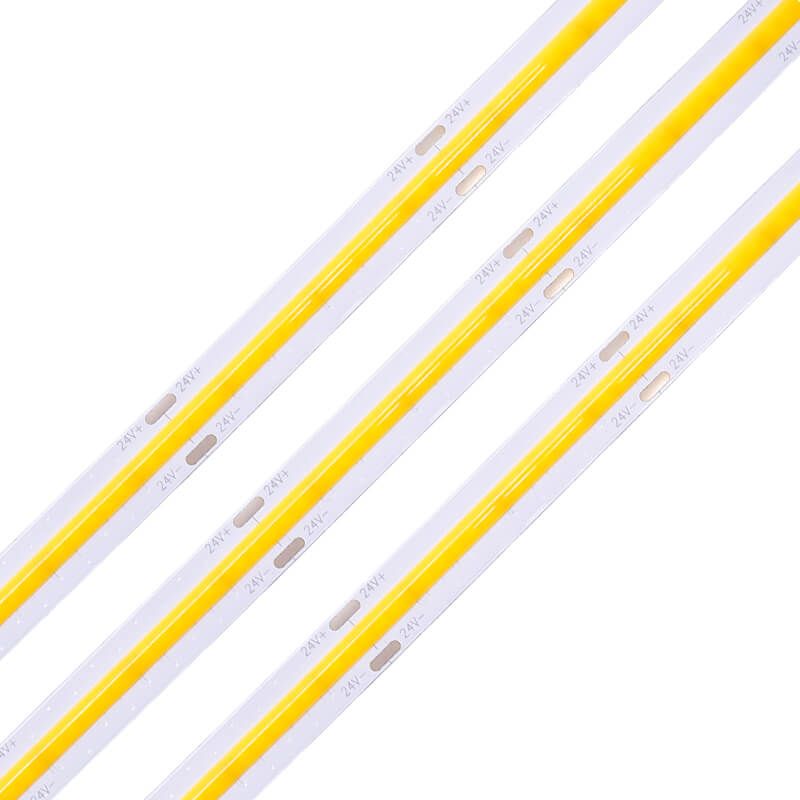

How to cut led light strips? To cut the COB strip, you only need a pair of scissors. Of course, use a ruler to measure the length you need before cutting it. The PCB board of the light strip has clearly marked the places that can be cut, and it can be cut along these lines.
5.Who can I contact for help or if I have any questions about COB Smart?
To learn more about reducing the challenges and costs associated with coordination of benefits, contact our Sales representative or email: info@zbl-lighting.com
Our sales will reply to you within 2 hours.
5-year warranty, 24-hour online service
Strong R&D team to make your products more competitive
Fully automatic LED intelligent production equipment with a monthly capacity of 20 million meters to ensure on-time delivery
More than 20 authoritative institutions certified, professional production of light strips for 11 years.
Adopting high quality accessories and rigorous testing in multiple processes.
