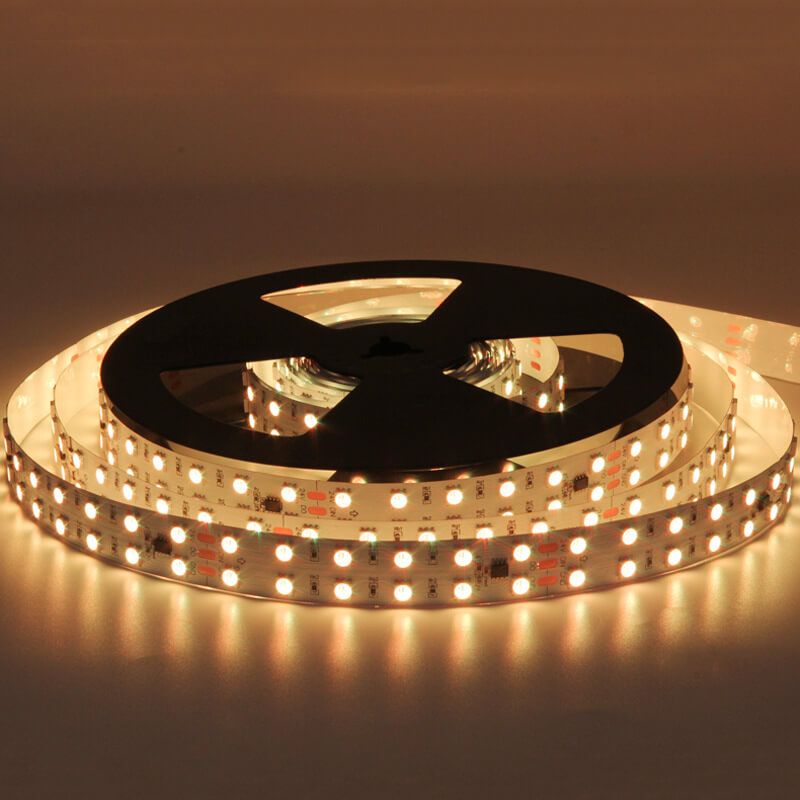

External IC UCS2903 double-row light strip DC12V/DC24V
External IC UCS2903 double-row light strip DC12V/DC24V - 1
External IC UCS2903 double-row light strip DC12V/DC24V - 2
External IC UCS2903 double-row light strip DC12V/DC24V - 3

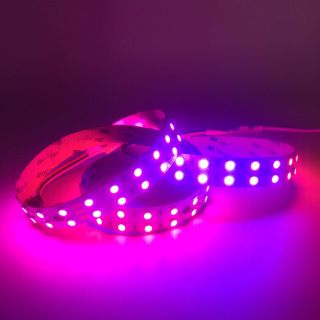

External IC UCS2903 double-row light strip DC12V/DC24V - 4
External IC UCS2903 double-row light strip DC12V/DC24V - 5
External IC UCS2903 double-row light strip DC12V/DC24V - 6
External IC UCS2903 double-row light strip DC12V/DC24V - 1
External IC UCS2903 double-row light strip DC12V/DC24V - 2
External IC UCS2903 double-row light strip DC12V/DC24V - 3
External IC UCS2903 double-row light strip DC12V/DC24V - 4
External IC UCS2903 double-row light strip DC12V/DC24V - 5
External IC UCS2903 double-row light strip DC12V/DC24V - 6

External IC UCS2903 double-row light strip DC12V/DC24V

Customizable, programmable,High brightness

Driver IC

UCS2903

Working Time (hours):

>30000h

Data Transfer

800Kbps

Voltage

DC12V/DC24V

Working Temperature(℃)

-25℃~80℃

Working current

0.25A/pearl

Color

BRG

Board bottom color

White

Luminous angle

120°

PCB thickness

200~400um

Grayscale level

256 Grayscale adjustable

RGB Sequence

GRB

IP Rating

IP20,IP65,IP67,IP68

PCB width

20mm

LED Quantity

120LED/M

  • Description
  • Examples
  • FAQ
  • GET FREE QUOTE NOW
  • Why Choose Us

①High brightness
High-brightness 5050 lamp beads are used, featuring low power consumption, low heat generation, no glare, and impact resistance; and the low-voltage DC24V DC power supply is used for high safety.

②Programmable
The RGB three-channel format can be programmed according to the needs of various products through the composite zeroing protocol, and can be programmed to provide multiple color breathing, colorful water flow, shooting star, chasing, and fading effects.

③6 lights in one tow
The perfect driver IC + 6-lamp line is designed to be a single pixel, retaining the 6-lamp grouping scheme commonly used in the market, and each segment can be cut at will.

④Application
It is suitable for many fields, such as lighting in high-rise buildings, luminous glass, public measures in parks and playgrounds, lighting renovation in mining pools, stage decoration in exhibitions and bars and KTV.

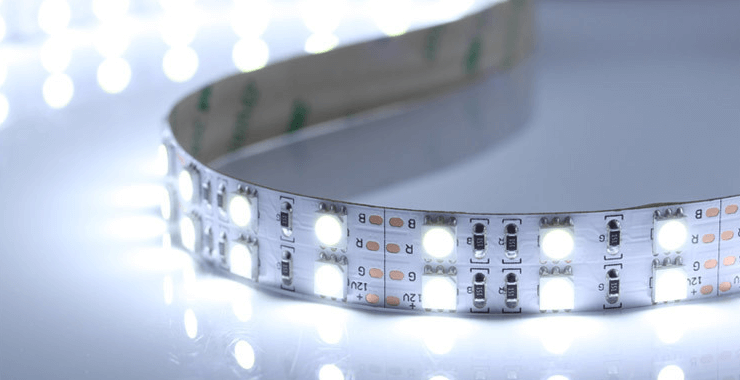

微信图片_20221121183224

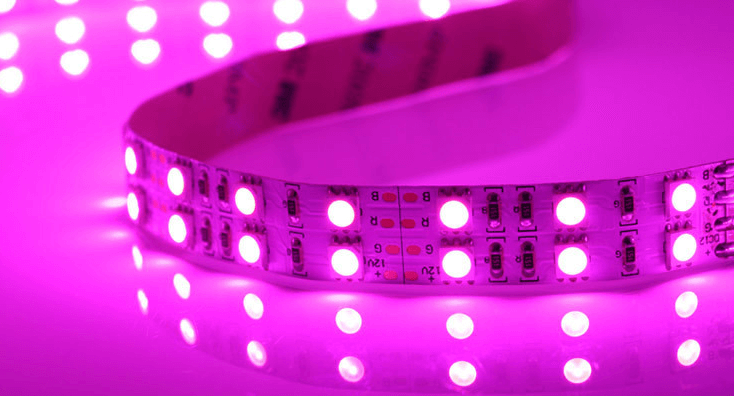

微信图片_20221121183240



CUSTOM SOLUTION

If you do not find the product or model you are looking for, please contact us for advice
Custom LED Strip
Not only offer standard products bu with customzed package,specification, length…
Custom Aluminum Profle
Factory finished aluminum profile and cove options are cuttable in specified length accordingto custom requirements
Custom Assemble Solutlons
Supply LEDStrip & aluminum profle asssembling service and simplify the installation process forUsers,Personalized length and color temerature is avaiable.
LED Type SMD2835 SMD5050 SMD3528 SMD3014 SMD2216 SMD2110 SMD3838 SMD3535 SMD4040
LED Quality 12leds 18leds 30leds 48leds 60leds 90leds 120leds126leds150leds …
Voltage 3V 5V 9V 12V 24V 36V 48V 72V 110V …
CCT 1800K 2400K 2700K 3000K 4000K 5000K 6000K 10000K 15000K …
Power(w/m) 4.8W/M 6W/M 7.6W/M 10W/M 14W/M 18W/M20W/M 24W/M 36W/M …
Lumen/M 500lm/M 600lm/M 700lm/M 800lm/M 900lm/M 1000lm/M1200lm/M1500lm/M 2000lm/M …
PCB 3MM 4MM 5MM 8MM 10MM 12MM 15MM 20MM 22MM …
Waterproof(IP Rating) IP20 IP54 Silicone spray, IP65 Silicone Dropping, IP67 Silicone Tube, IP68 Silicone gel pouring …
Adhesive Tape 3M 3M 9080A 30OMP 9495 VHB …
PCB Print UL CE ROHS LOGO …

MULTIPLE AUTHENTICATION

Every ZBL product,from design to material selection to production qualityinspection, is always higher than the industry standard, has gone throughlayers of safety testing, and has passed many international safety certifications before finally reaching your hands.

3M DOUBLE-SIDED ADHESIVE

ZBL LED strips light are made of 3M double-sided adhesive tape, which is very sticky, can not only isolate moisture and play a sealing role,but also have the characteristics of solubility resistance, high temperatureand low temperature resistance, etc.Customers can also customize waterproof double-sided adhesive tape with waterproof characteristics.

ABOUT US

Self-production and self-marketing, the source of the factory

ZBL Technology Industrial Limited is a Hi-tech enterprise specialized in LED light R&D,producing,selling,post-sell service.We have an experienced technology and marketing team.Technology iskey to energy saving.ZBL Technology is persisted in researching and developing new technologyfor the LED products.Currently,we have a series of independent and know-hows on LED lights.Allour products are produced according to ISO9001 standard. Our main product are LED Strip,SmartStrip Light,COB Strip Light,LED Atmosphere Light,LED Neon Light Strip,Window Light,ChristmasLights,Garden Light etc.And we provide professional OEM/ODM service to customers.Based onadvanced technology,superior product quality,flexible marketing strategy,fast delivery and excellentservice,ZBL Technology has taken a solid first step and is aiming to become the leading role ofLED industry in China.We are now in the period of fast development,and willing to establish firmand sustainable partnership with the customers in domestic and abroad.


ZBL Lighting Team

EXHIBITION

Since its establishment to participate in a number of exhibitions

we exhibition

Swift Packaging and Quick Delivery!

We understand the value of your time, so our dedicated team is committed to fast packaging and prompt delivery.

led strip light shipping method

led strip light shipping

13218789014_2145746219

What is UCS2903?

UCS2903 is a special circuit for three-channel LED driver control, with internal integrated MCU digital interface, data latch, LED high-voltage driver and other circuits. Through peripheral MCU control to achieve the individual glow of this chip, cascade control to achieve color dot matrix luminescence control of large outdoor screens. The product has excellent performance and reliable quality.
Main features:
Single line data transmission
Built-in double RC oscillation, and according to the signal on the data line for clock synchronization, after accepting the data of this unit can automatically shaping the subsequent data forwarding
Infinite cascade for linear transmission
The transmission distance between any two points exceeds 10 meters without any additional circuitry
Data transmission frequency of 800K/sec can achieve a screen refresh rate of 30 frames/sec with no less than 1024 points
PWM console can realize 256 levels of adjustment, scanning frequency 1.6MHz/s
The chip VDD has a built-in 5V voltage regulator.
Output port voltage resistance 24V
Adopt preset 17mA/channel constant current mode. High accuracy of constant current, intra-chip error is 3%, inter-chip error is 6%.
Constant current value can be changed by external resistor
