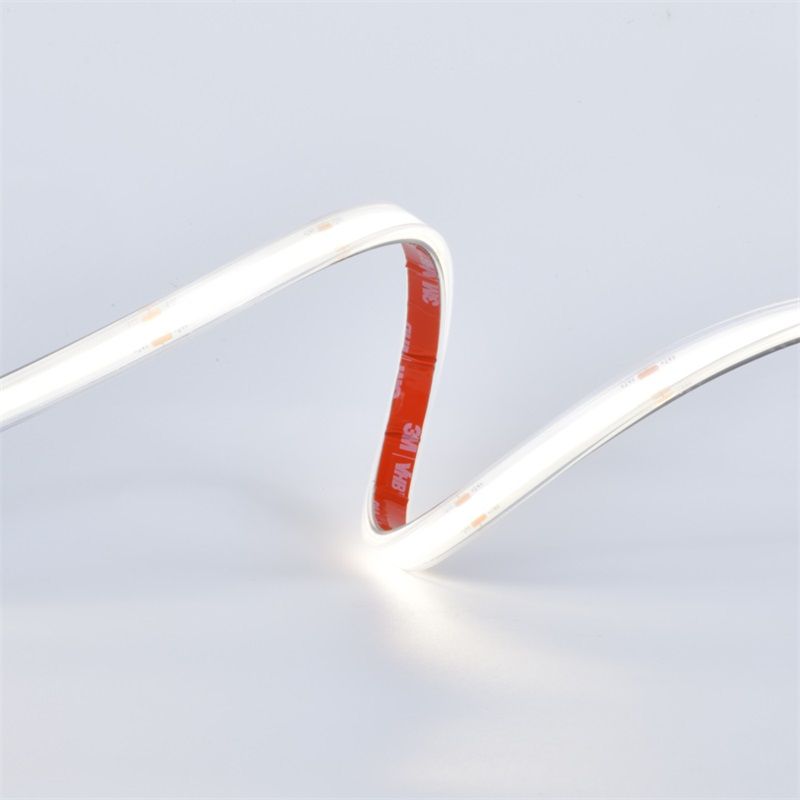

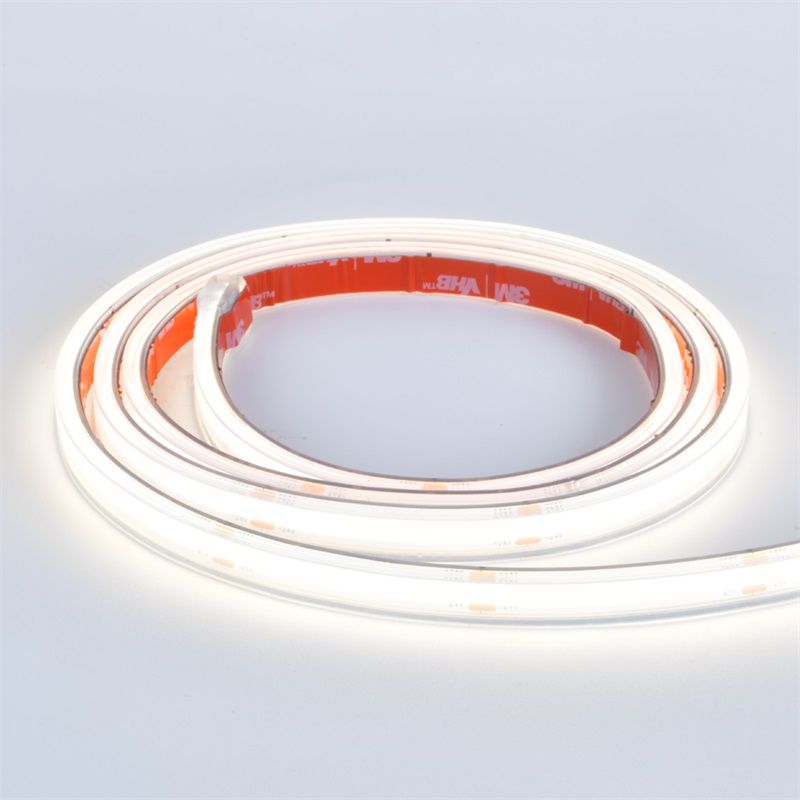

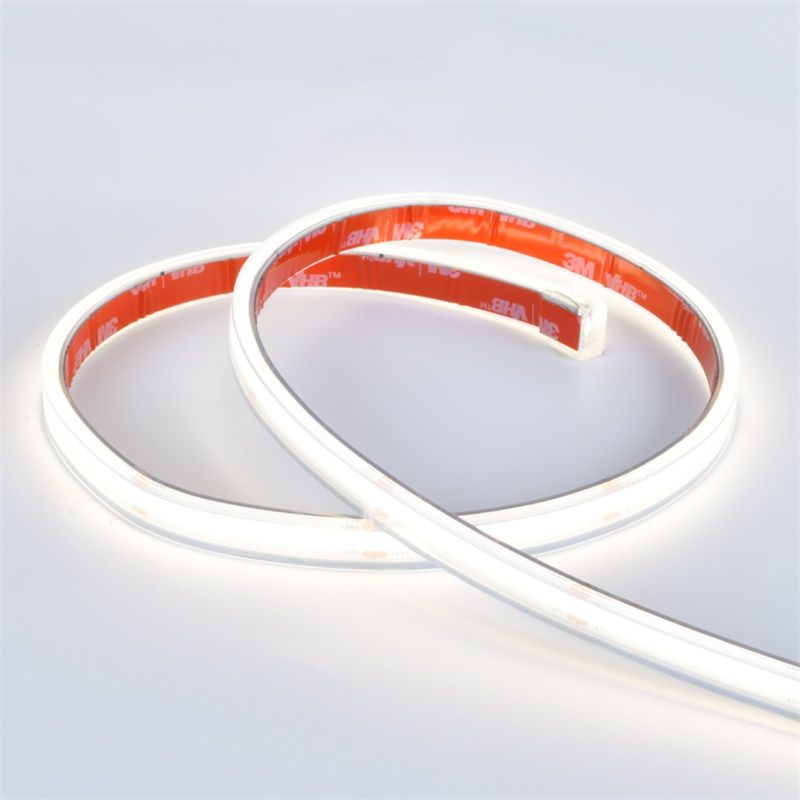

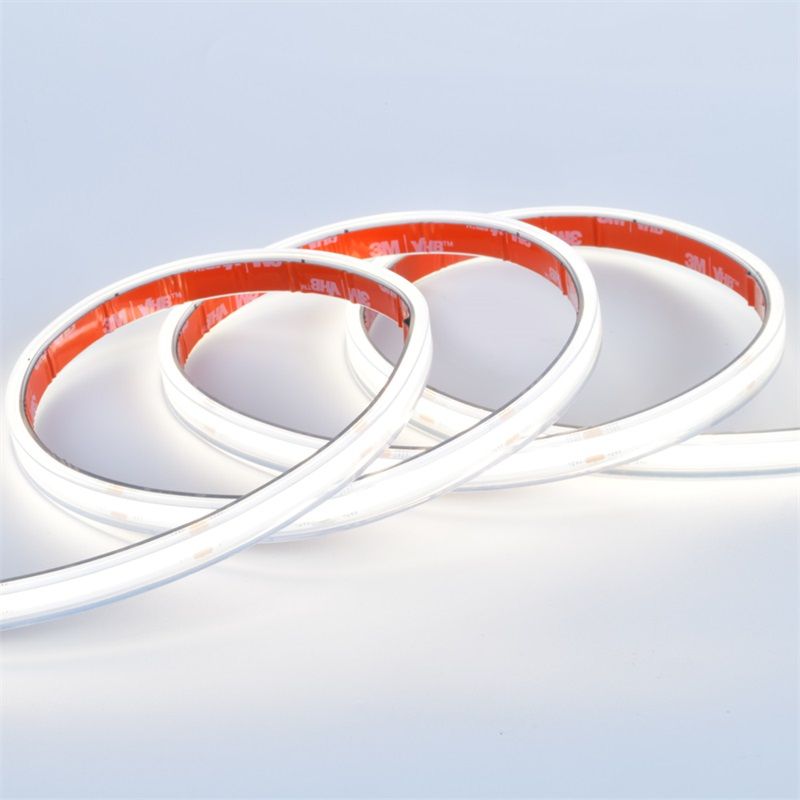

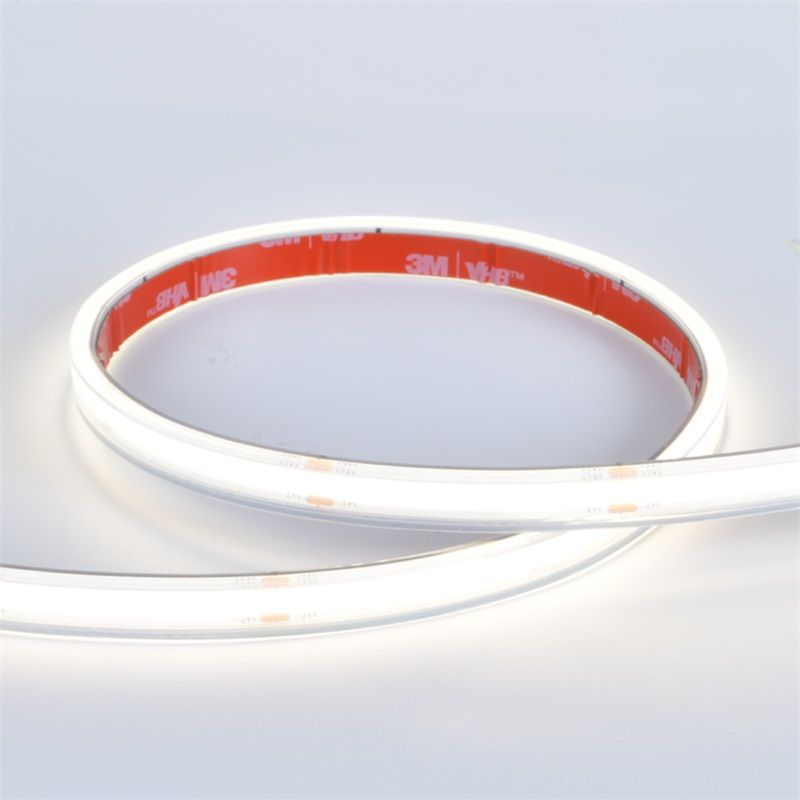

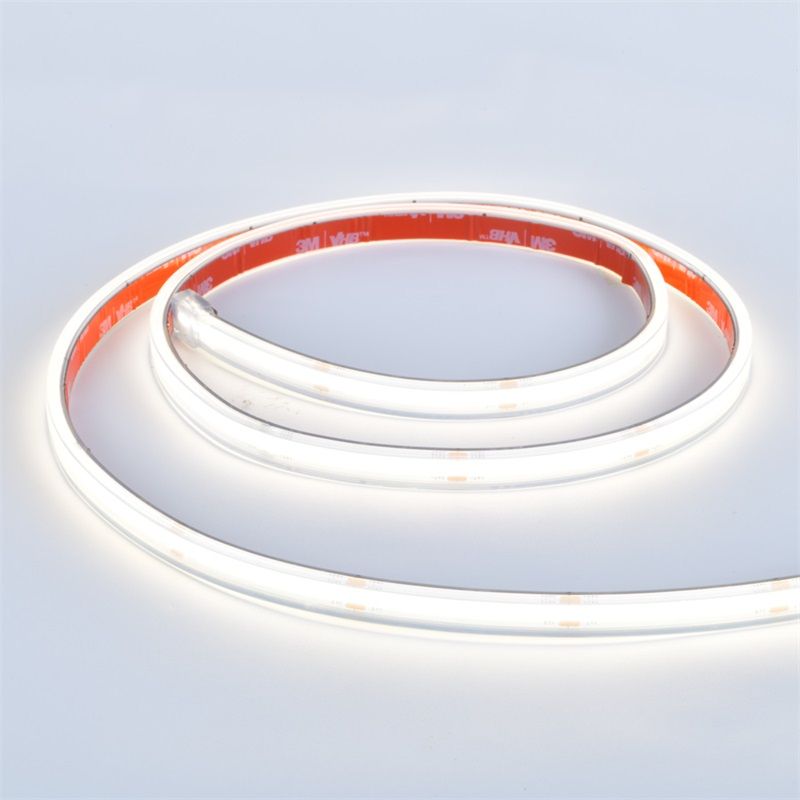

Waterproof cob led strip light IP67 outdoor project lighting
Waterproof cob led strip light IP67 outdoor project lighting - 1
Waterproof cob led strip light IP67 outdoor project lighting - 2

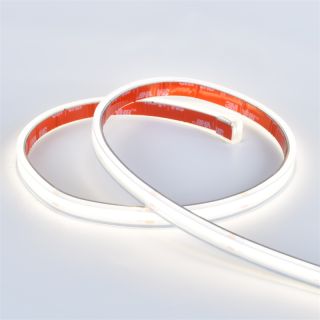

Waterproof cob led strip light IP67 outdoor project lighting - 3
Waterproof cob led strip light IP67 outdoor project lighting - 4
Waterproof cob led strip light IP67 outdoor project lighting - 5

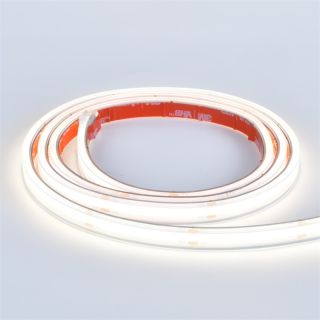

Waterproof cob led strip light IP67 outdoor project lighting - 6
Waterproof cob led strip light IP67 outdoor project lighting - 1
Waterproof cob led strip light IP67 outdoor project lighting - 2
Waterproof cob led strip light IP67 outdoor project lighting - 3
Waterproof cob led strip light IP67 outdoor project lighting - 4
Waterproof cob led strip light IP67 outdoor project lighting - 5
Waterproof cob led strip light IP67 outdoor project lighting - 6

Waterproof cob led strip light IP67 outdoor project lighting

waterproof,ip67,outdoor

Model waterproof cob led strip light IP67 Outdoor Project Lighting
Power 10W/M
CRI 97
Service life 50000h
Board width 10mm
Color temperature 2700K/3000K/4000K/5000K/6000K
Whether dimming Yes
Luminous angle 180°
Maximum run length Maximum run length up to 16 ft (5 meters)
Working voltage DC12V/DC24V
Cutting length 25mm/50mm
Protection grade IP67
Warranty time 3 year
Tape 3M 9495
Operating temperature -4°F to 176°F (-20°C to 80°C)
Certification UL,CE,RoHS
  • Description
  • Examples
  • FAQ
  • GET FREE QUOTE NOW
  • Why Choose Us

CUSTOM SOLUTION

Looking for a COB LED strip that perfectly suits your needs? Look no further! Our team offers a wide range of customization options for COB LED strips to meet your every requirement. Whether it's for a specific project or a particular application, we have the solution for you. Contact us today and let us help you create the perfect COB LED strip that meets all your needs and exceeds your expectations. With our dedication to quality and customer satisfaction, you can be confident that you will get the best product possible.
Custom LED Strip
Not only offer standard products bu with customzed package,specification, length…
Custom Aluminum Profle
Factory finished aluminum profile and cove options are cuttable in specified length accordingto custom requirements
Custom Assemble Solutlons
Supply LEDStrip & aluminum profle asssembling service and simplify the installation process forUsers,Personalized length and color temerature is avaiable.
The shear length 10MM 20MM 23.81MM 25MM 26.31MM 31.26MM 41.66MM45.45MM 5OMM …
LED Quality 240leds 320leds 384leds 480leds 528leds 600leds 608leds 756leds 768leds 784leds …
Voltage 5V 12V 24V 36V 110V 220V …
CCT 1800K 2400K 2700K 3000K 4000K 5000K 6000K 10000K 15000K RGB RGBW RGBIC RGBCW…
Photoeffciency >80Lm/W >100Lm/W …
Power(w/m) 7W/M 8W/M 1OW/M 11W/M 14W/M 18W/M …
Lumen/M 500lm/M 600lm/M 700lm/M 800lm/M 900lm/M 1000lm/M1200lm/M1500lm/M 2000lm/M …
PCB 3MM 4MM 5MM 8MM 10MM 12MM 15MM 20MM 22MM …
Waterproof(IP Rating) IP20 IP54 Silicone spray, IP65 Silicone Dropping, IP67 Silicone Tube, IP68 Silicone gel pouring …
Adhesive Tape 3M 3M 9080A 30OMP 9495 VHB …
PCB Print UL CE ROHS LOGO …

THE LIGHTING COLORSARE MORE REALISTIC

The display index of > 90 is adopted to make the light emitted more like natural light and restore the original light color

DOUBLE PCB
MANUFACTURING PROCESS

The PCB is made of 3570 rolled copper, which is more flexible, theovercurrent can reach 2.5A-3A, and the daily use temperature is lower, sothat the five-meter voltage of the LED strip light is reduced, Consistentbrightness from beginning to end. The photosensitive ink on the surface ofthe led strip light can effectively improve the brightness of the led strip light.

COB color Kelvins

COMPARISON BETWEEN
SINGLE PCB BOARD
AND DOUBLE PCB BOARD

ZBL LED strip light adopts double PCB board design, which is more flexible ofthe LED strip light, can cope with various bends, and has better conductivitythan many products on the market, thus greatly prolonging the service life ofthe led strip light.

COB PCB

MULTIPLE AUTHENTICATION

Every ZBL product,from design to material selection to production qualityinspection, is always higher than the industry standard, has gone throughlayers of safety testing, and has passed many international safety certifications before finally reaching your hands.

LAMP BELT ADAPTER

A variety of led light strip Connector can meet all conversion installation needs.

THE LAMP WITHWATERPROOF

According to customers'requirements,the required waterproof rating can be made.

3M DOUBLE-SIDED ADHESIVE

ZBL LED strips light are made of 3M double-sided adhesive tape, which is very sticky, can not only isolate moisture and play a sealing role,but also have the characteristics of solubility resistance, high temperatureand low temperature resistance, etc.Customers can also customize waterproof double-sided adhesive tape with waterproof characteristics.
