Addressable LED Strip Lights Explained: Differences, Controllers, and Buying Tips

What is an Addressable LED Strip Light?

An addressable LED strip light is a type of LED light strip where each LED can be controlled individually. In contrast to traditional LED strips, which only allow you to change the color or brightness of the entire strip as a whole, addressable LED strips enable you to control each LED separately. This means you can create dynamic lighting effects, such as color transitions, chases, rainbow effects, or even custom animations.

Addressable LED strip lights are often used in creative lighting projects, including home decor, architectural lighting, stage lighting, and even custom PC setups. With an addressable LED strip, you have the power to program complex effects that can transform a space with vibrant, dynamic visuals. Explore more about LED strip lighting.

What’s the Difference Between Addressable and Non-Addressable LED Strips?

The main differences between addressable and non-addressable LED strips are in the control options and flexibility:

1. Control over Each LED (Pixel Control):

   • Addressable LED Strips: Each LED (or group of LEDs) has its own chip, which allows you to control each "pixel" individually. This feature enables complex lighting patterns and animations.
   • Non-Addressable LED Strips: All LEDs on the strip are controlled as a whole, meaning you can only set a single color or brightness level across the entire strip at once.

2. Lighting Effects and Customization:

   • Addressable: Perfect for intricate animations, color shifts, chasing lights, and other effects.
   • Non-Addressable: Ideal for basic, consistent lighting, like under-cabinet or task lighting, where a simple, static light is sufficient.

3. Cost and Complexity:

   • Addressable LED strips are often more expensive and require more sophisticated controllers than non-addressable strips. However, they offer much more creative freedom and customization options.

How to Tell if an LED Strip is Individually Addressable?

Here are some key indicators that an LED strip is addressable:

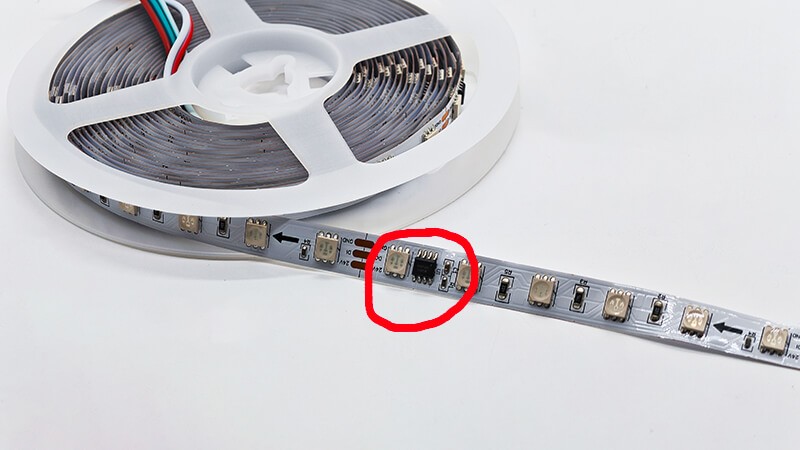

1. Check for Integrated Chips: Addressable LED strips have control chips, such as WS2812, SK6812, or APA102, built into the strip. These chips allow each LED to receive individual commands, making them "addressable."

2. Look at the Product Specifications: If the LED strip’s description mentions "pixel control," "individually addressable," or references a specific IC (integrated circuit) like the WS2812, it’s most likely addressable. If the strip only has a single control line for color changes, it’s likely non-addressable.

3. Wiring Layout: Addressable LED strips typically have extra wiring, often labeled as "Data," "Clock," and "Ground." Non-addressable strips usually only have positive and negative wires without data lines.

4. Testing with a Controller: You can connect the strip to an addressable LED controller or a microcontroller, like an Arduino or Raspberry Pi, and try to program different colors for individual LEDs. If each LED can be controlled separately, then it’s an addressable LED strip.

What Controllers are Used with Addressable LED Strips?

To get the most out of your addressable LED strips, you'll need a compatible controller. Here are a few popular options:

1. Arduino: Arduino microcontrollers are extremely popular for DIY LED projects due to their flexibility and extensive community support. Libraries like FastLED or Adafruit NeoPixel make programming animations easy.

2. Raspberry Pi: The Raspberry Pi, with its powerful processor and versatile GPIO pins, can control complex LED setups and be used to program custom lighting effects, especially when multiple LEDs or longer strips are used.

3. ESP8266 / ESP32 Controllers: These Wi-Fi-enabled microcontrollers are excellent for creating internet-connected LED projects. With ESP8266 or ESP32, you can even control your LED lights from your smartphone or integrate them with smart home systems like Alexa or Google Home.

4. Pre-built LED Controllers (SP108E, SP110E): There are various ready-made addressable LED controllers available, such as the SP108E or SP110E. These devices allow you to control your lights through an app, making it a plug-and-play solution if you’re not familiar with coding or microcontrollers.

5. DMX Controllers: For professional lighting setups, DMX controllers are commonly used. DMX allows advanced control for large-scale lighting projects and is frequently used in stage lighting and architectural installations.

Each of these controllers has its unique features and level of complexity, so choose the one that fits your project needs and technical comfort level.

Where Can You Buy Addressable LED Strips?

Addressable LED strips are widely available online and at specialty lighting stores. Here are some reliable places to find them:

1. Amazon: Offers a wide range of addressable LED strips from brands like BTF-Lighting, ALITOVE, and more, with various lengths and LED types.

2. Adafruit: Known for high-quality LED strips, Adafruit offers a good selection of WS2812, DotStar, and other addressable LEDs, along with a range of compatible controllers.

3. SparkFun: Another great choice for electronic components, SparkFun has addressable LED strips and related accessories for DIY projects.

4. AliExpress and Banggood: If you’re looking for budget options or specific brands, these marketplaces often have affordable LED strips, although shipping times may vary.

5. Local Electronics or Specialty Lighting Stores: Some electronics stores and specialty lighting shops carry addressable LED strips, allowing you to see them in person before purchasing.

Conclusion

Addressable LED strip lights open up a world of creative possibilities for lighting projects. Their flexibility in controlling individual LEDs makes them ideal for dynamic and intricate lighting effects. By understanding the differences between addressable and non-addressable LED strips, as well as knowing which controllers to use and where to buy them, you’re well-equipped to dive into your own LED project and bring unique lighting designs to life!

Whether you’re working on a home decor project or a stage design, addressable LEDs provide the tools to create stunning, interactive lighting setups. Happy lighting!
