High Quality OEM/ODM LED Strip Manufacturer
High Quality OEM/ODM LED Strip Manufacturer
Customizable, high quality, programmable, single point control
|
Model |

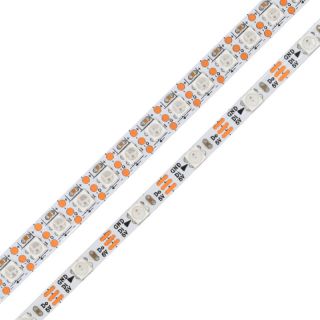

WS2812 Built-in IC RGB 3535 Strip light DC5V |
|
Driver IC |
WS2812B/SK6812 |
|
Working Time (hours): |
>30000h |
|
Data Transfer |
800Kbps |
|
Voltage |
DC5V |
|
Working Temperature(℃) |
-25℃~80℃ |
|
Working current |
0.25A/pearl |
|
Color |
Full Color |
|
Board bottom color |
White |
|
Luminous angle |
120° |
|
PCB thickness |
200~400um |
|
Grayscale level |
256 Grayscale adjustable |
|
RGB Sequence |
GRB |
|
IP Rating |
IP20,IP67 |
|
PCB width |
4mm,7.2mm |
|
LED Quantity |
60LED/M,144LED/M |
WS2812 Built-in IC RGB 3535 Strip light DC5V is a type of LED strip light that contains integrated WS2812B IC chips. These chips allow for individual control of each LED, enabling the creation of dynamic and complex lighting effects. The strip operates at DC5V and features a compact 3535 package size.
The WS2812B IC is a widely used and popular chip for LED strip lighting. It is compatible with a variety of controllers and programming languages, including Arduino, Raspberry Pi, and FastLED. The WS2812B chip communicates via a one-wire protocol, making it easy to control multiple LEDs with a single data line.
WS2812B LED strip lights are ideal for use in a variety of applications, including home lighting, advertising signs, and stage lighting. They offer high brightness and a wide range of colors, allowing for the creation of eye-catching and immersive lighting displays. The strip can be cut to custom lengths and is easy to install using adhesive backing or mounting clips.
If you're looking for a versatile and high-quality LED strip light, the WS2812B Built-in IC RGB 3535 Strip light DC5V is an excellent choice. Its advanced features and ease of use make it a popular choice among lighting enthusiasts and professionals alike.
1. High quality
XT9822-5050RGB is adopted, adding CKL clock line on the basis of single line, with dual signal output, DATA data and synchronous CLK signal, etc. Maximum serial input data frequency 30MHZ, three-way constant current drive, with signal self-detection function, refreshing frequency faster without lag.
2. Programmable
SPI communication protocol, compatible with APA102C light beads control convenient, by setting the program, you can change the fade, meteor, flash light effect as you wish.
3. Single point control
Each LED light forms a circuit, no need to add capacitors, comes with filtering function, less components, length can be cut at will.
4. Wide application
DC5V flexible flexible strip, easy to use, suitable for lighting applications such as video screen, interactive screen, exhibition hall, hotel KTV, city lighting, etc.
| LED Type | SMD2835 SMD5050 SMD3528 SMD3014 SMD2216 SMD2110 SMD3838 SMD3535 SMD4040 |
| LED Quality | 12leds 18leds 30leds 48leds 60leds 90leds 120leds126leds150leds … |
| Voltage | 3V 5V 9V 12V 24V 36V 48V 72V 110V … |
| CCT | 1800K 2400K 2700K 3000K 4000K 5000K 6000K 10000K 15000K … |
| Power(w/m) | 4.8W/M 6W/M 7.6W/M 10W/M 14W/M 18W/M20W/M 24W/M 36W/M … |
| Lumen/M | 500lm/M 600lm/M 700lm/M 800lm/M 900lm/M 1000lm/M1200lm/M1500lm/M 2000lm/M … |
| PCB | 3MM 4MM 5MM 8MM 10MM 12MM 15MM 20MM 22MM … |
| Waterproof(IP Rating) | IP20 IP54 Silicone spray, IP65 Silicone Dropping, IP67 Silicone Tube, IP68 Silicone gel pouring … |
| Adhesive Tape | 3M 3M 9080A 30OMP 9495 VHB … |
| PCB Print | UL CE ROHS LOGO … |
ZBL Technology Industrial Limited is a Hi-tech enterprise specialized in LED light R&D,producing,selling,post-sell service.We have an experienced technology and marketing team.Technology iskey to energy saving.ZBL Technology is persisted in researching and developing new technologyfor the LED products.Currently,we have a series of independent and know-hows on LED lights.Allour products are produced according to ISO9001 standard. Our main product are LED Strip,SmartStrip Light,COB Strip Light,LED Atmosphere Light,LED Neon Light Strip,Window Light,ChristmasLights,Garden Light etc.And we provide professional OEM/ODM service to customers.Based onadvanced technology,superior product quality,flexible marketing strategy,fast delivery and excellentservice,ZBL Technology has taken a solid first step and is aiming to become the leading role ofLED industry in China.We are now in the period of fast development,and willing to establish firmand sustainable partnership with the customers in domestic and abroad.
What is RGB3535 LED strip light?
Answer: RGB3535 LED strip light is a type of LED strip light that contains red, green, and blue LEDs in one chip. It is a popular choice for decorative lighting due to its ability to produce a wide range of colors.
What is the working voltage of RGB3535 LED strip light?
Answer: The working voltage of RGB3535 LED strip light is DC 5V.
How many LEDs are there in one meter of RGB3535 LED strip light?
Answer: There are usually 60 LEDs in one meter of RGB3535 LED strip light.
Can I cut RGB3535 LED strip light?
Answer: Yes, you can cut RGB3535 LED strip light at the designated cut points. However, make sure to cut along the cut line and use the correct tools to avoid damaging the strip light.
How do I control RGB3535 LED strip light?
Answer: RGB3535 LED strip light can be controlled using an RGB controller or a compatible microcontroller. You can use a remote control to adjust the color and brightness of the LEDs, or program the strip light to produce different lighting effects.
Can I connect multiple RGB3535 LED strip lights together?
Answer: Yes, you can connect multiple RGB3535 LED strip lights together using connectors and extension cables. However, make sure to connect them in parallel to avoid voltage drop and use an adequate power supply to supply sufficient power to the strip lights.
How do I calculate the power consumption of RGB3535 LED strip light?
Answer: To calculate the power consumption of RGB3535 LED strip light, you need to know the power consumption of each LED and the number of LEDs in the strip light. The power consumption of each LED is usually around 0.2W. Therefore, if you have a 5m long RGB3535 LED strip light with 60 LEDs per meter, the total power consumption is: 0.2W x 60 LEDs/m x 5m = 60W.
Can RGB3535 LED strip light be used outdoors?
Answer: RGB3535 LED strip light can be used outdoors if it is protected from direct exposure to water and moisture. You can use a waterproof coating or a waterproof casing to protect the strip light.
