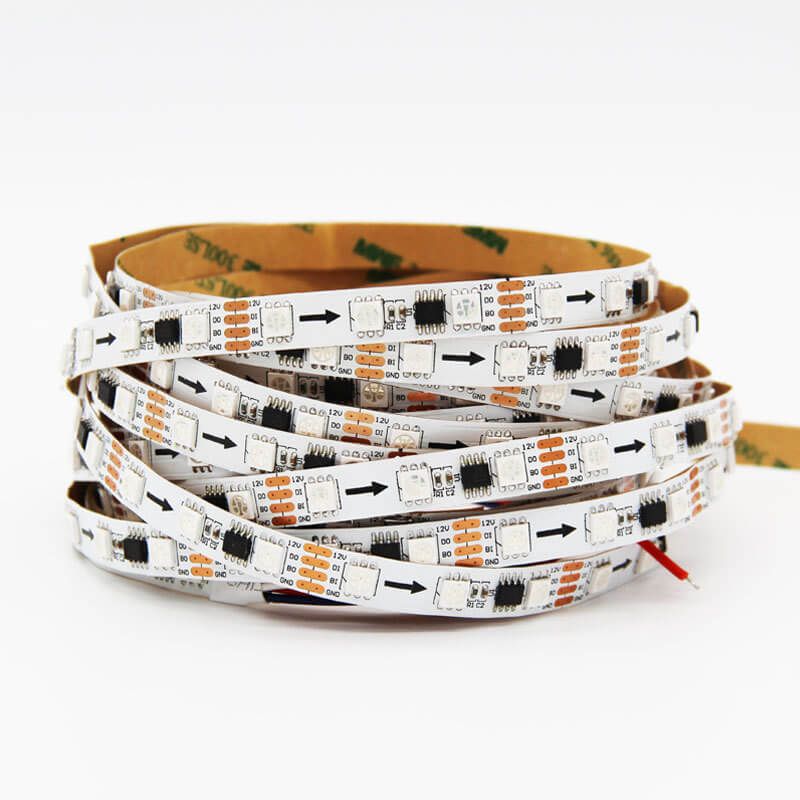

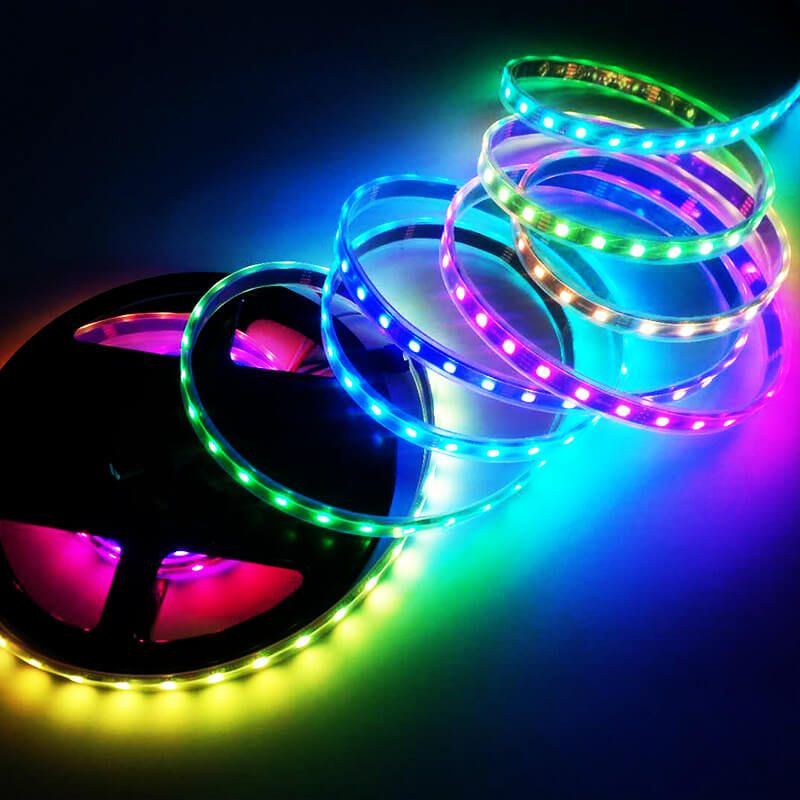

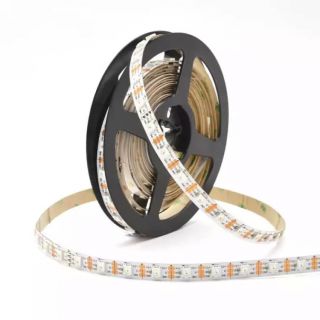

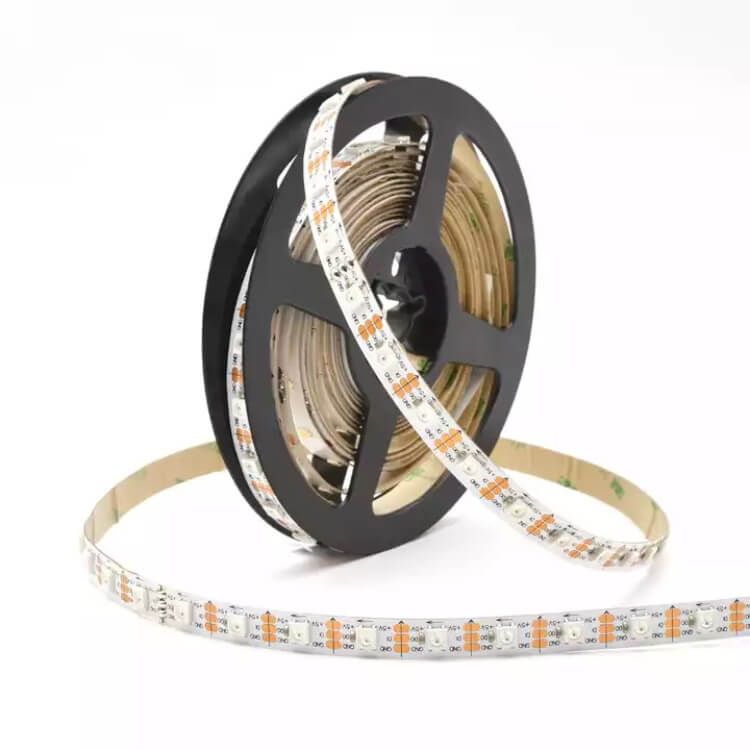

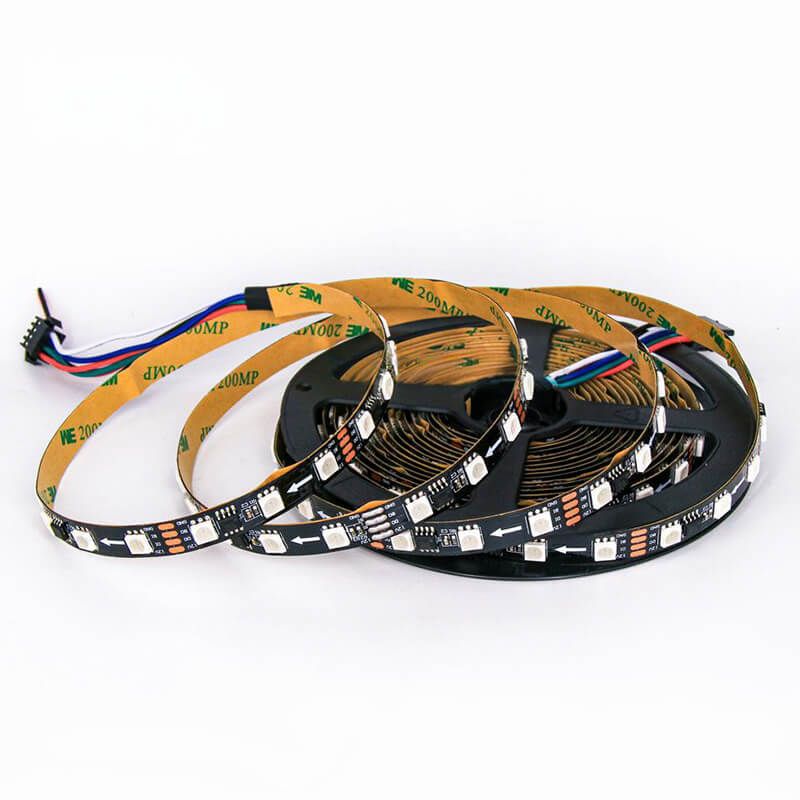

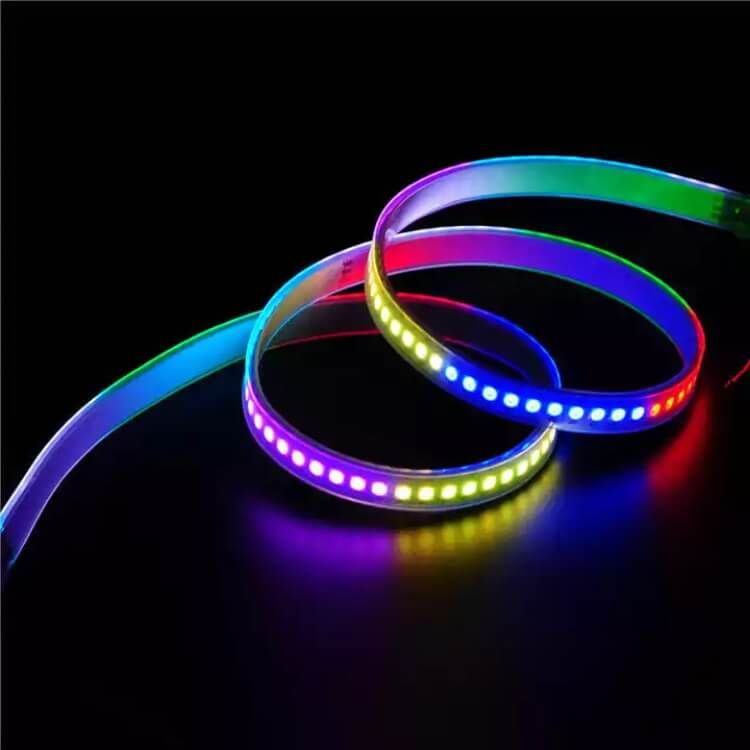

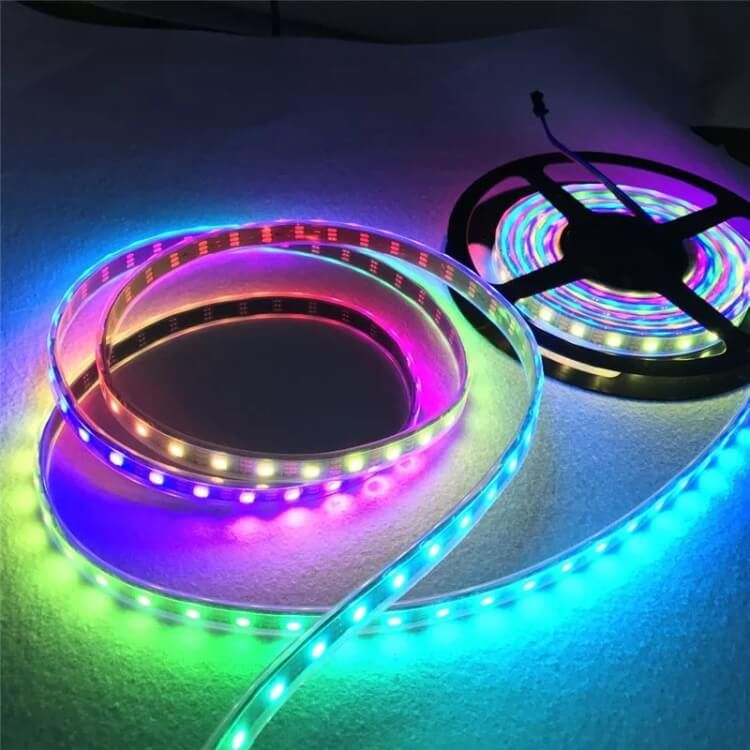

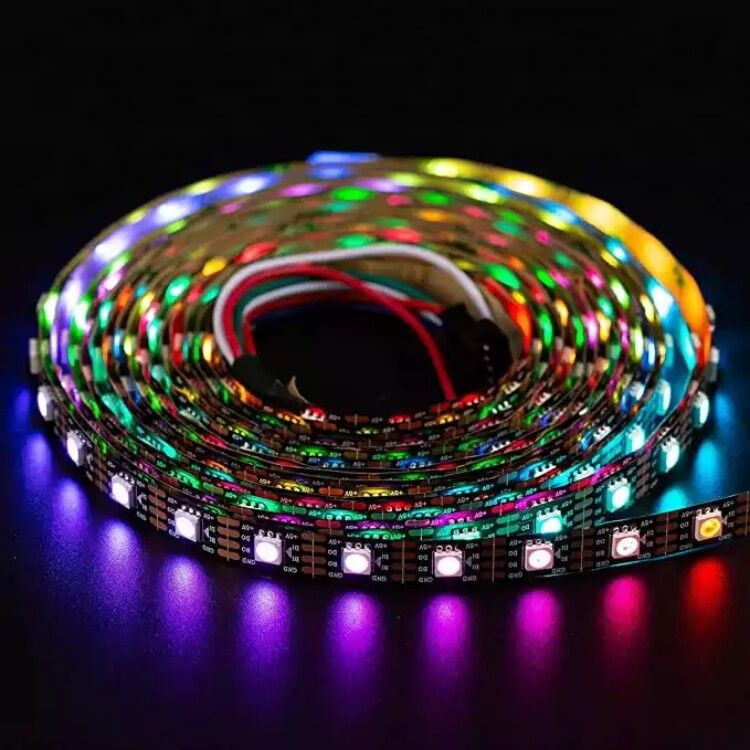

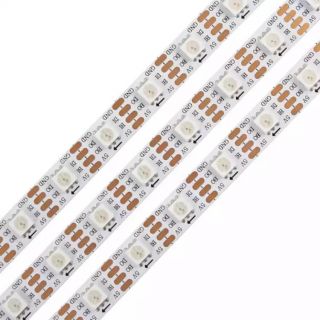

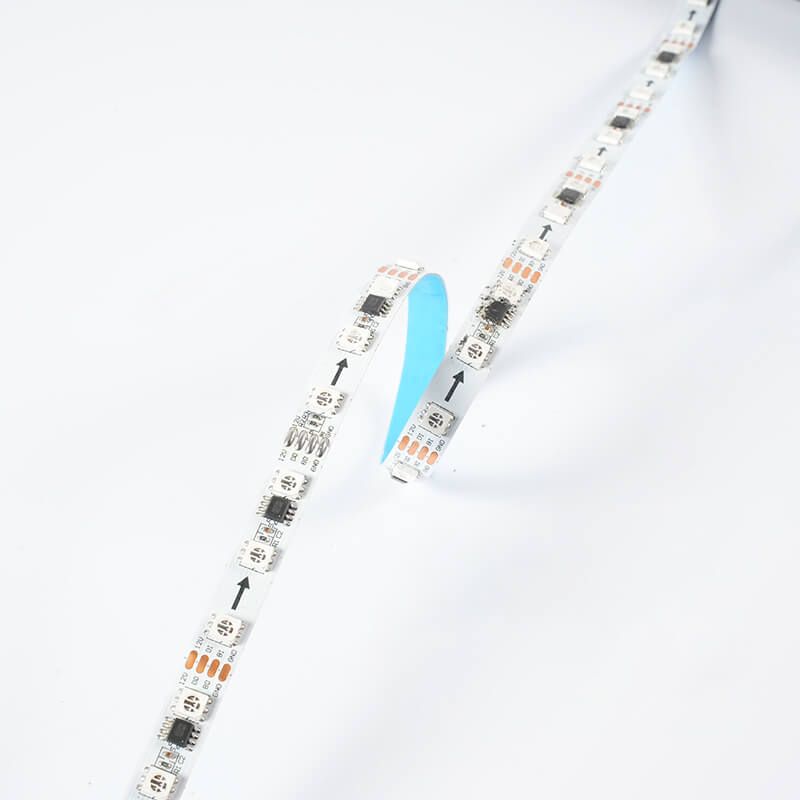

WS2818 RGB Addressable LED strip light DC12V

1. Intermittent transmission function
It adopts the parallel double signal line transmission method, adding one more signal line on top of the original one, which will not affect the overall color display if the single pixel is damaged, and has the function of intermittent transmission.

2. Programmable
Through the compound zeroing code protocol, RGB three-channel mode, can be programmed according to the needs of various products: multiple color breathing, illusion seven-color water, meteor, chase, gradient and other effects.

3. Single-point control
While having a breakpoint, the single light is an independent pixel point, which can be controlled by a single point, positive, negative, double signal 4pin line arrangement, one light is a group of circuit.

4. Wide application
Intermittent low voltage phantom strip lights are used in automatic equipment shelf indicator, high-rise building lighting, luminous glass, car decorative lights, park amusement park public facilities lighting, mining site pool lighting transformation, exhibition stage, bar KTV decoration and many other fields.

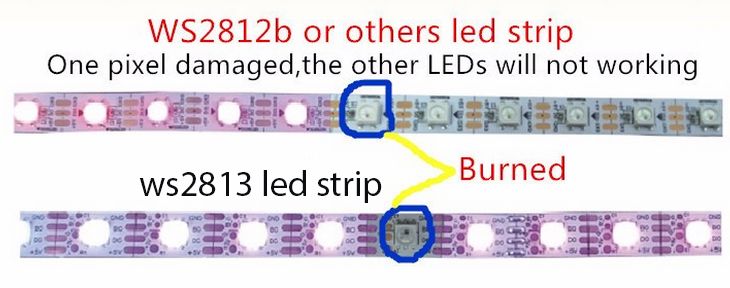

• 1. ws2813 led strip,breakpoint continue,one led broken,no affect other the behind led work.
• 2. One WS2813 IC control ONE LED Chip; Users can cut the ribbon tape every 1 LEDs
• 3. Each LED is individually addressable, with 8 bits of green, red and blue data shifted in for 24 bit color;

  4. With 4pin LED lamps for the digital strip

  5. Controller:we usually select SD controller,you also could use DMX controller,DMX decoder,Arduino,Artnet.This product can achieve effects and animations by controller , for example RGB seven colors gradual change,jumping change, Fading , flashing, strobing , color chasing, color sliding, Fading, Dimming mode etc.

  6. This is the highest resolution for the moment

  7. Controller, Power supply are available

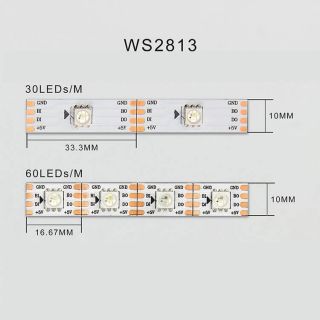

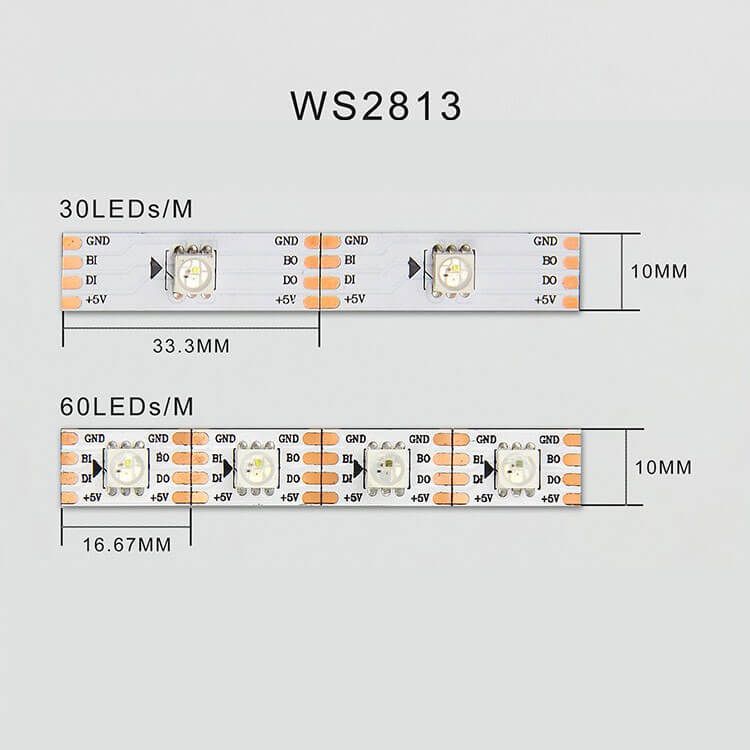

  8. For WS2813 IC, we have DC5V; 30/60/96/144 leds per meter. Great choice.

  9. The product is widely used in building outline lights, entertainment quasi-decorative lighting, advertisement   decorative lighting and so on.

  10. Low voltage DC power supply safety, Convenience.

•

• City skyline lighting villas advertising wall signs Christmas ( decorative landscape)
• Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
• establishments ceiling cavity design)
• Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
• Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
• Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)

What is WS2818 LED?

WS2818 is a 3-channel LED driver control circuit that includes an intelligent digital port data latch and a signal reshaping amplification drive circuit.

The reshaping of the amplification drive chain contains both a precision internal oscillator and a programmable 12V voltage.

Constant current control element helps to achieve a highly consistent color effect.

WS2818 has good features in Signal Break-Point Continuous Transmission, adopts dual signal transmission.

These signals are capable of operating together without interference.

The first DIN / BIN chip can be selected by the user as the controller.

The Signal input pin and the follow-up cascade chips will automatically recognize the output signal produced by the first chip.
